Brand:Schneider PLC Item No.:ATV12H075M3 Product Origin:France Product Dimensions:72 x 143 x 131.2 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

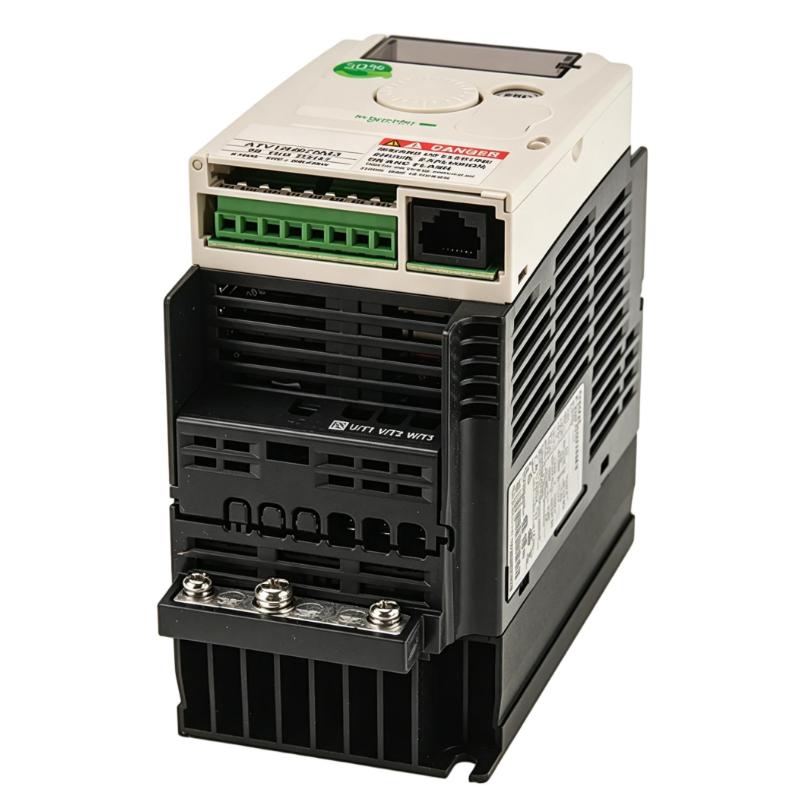

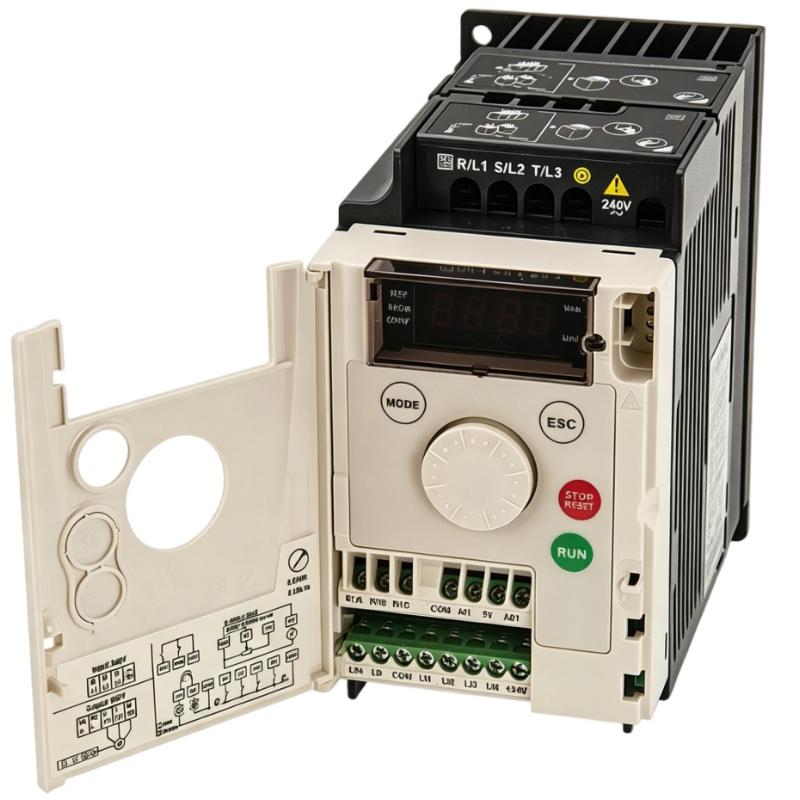

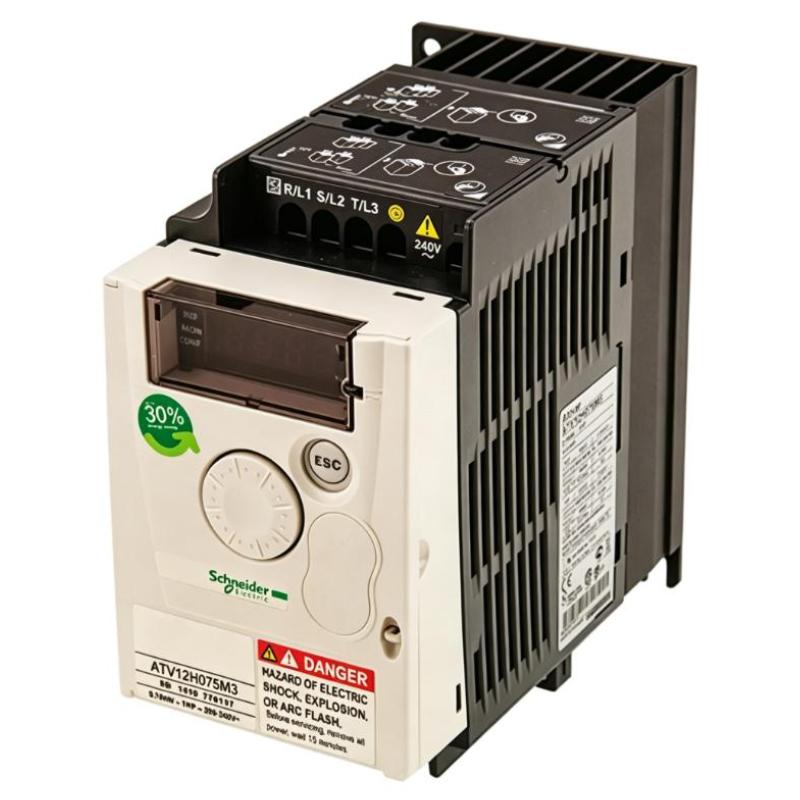

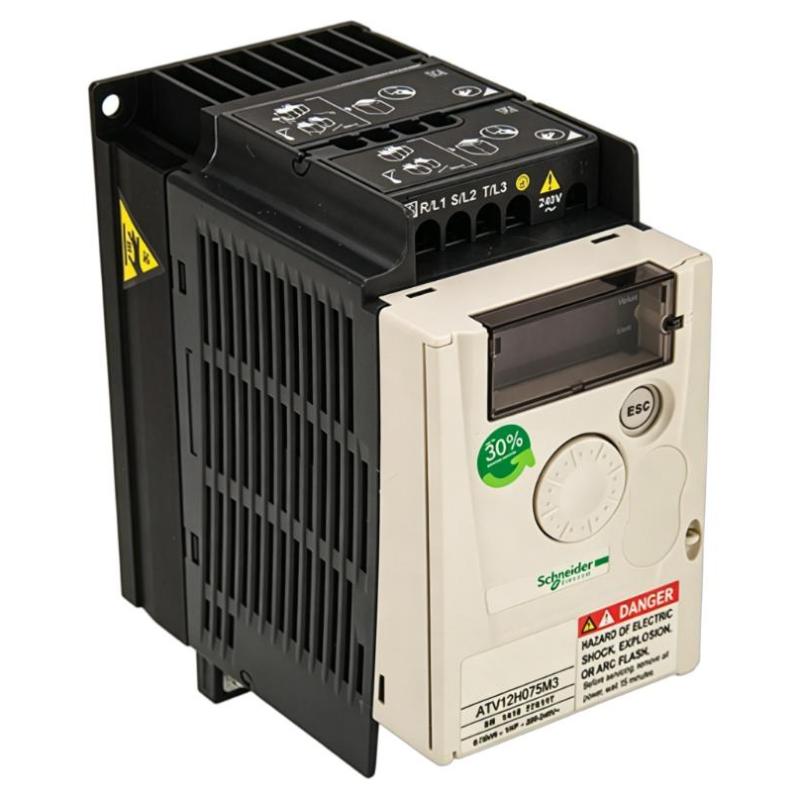

The Schneider ATV12H075M3 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in light industrial and OEM applications. It provides efficient speed regulation for small three-phase motors, helping improve energy efficiency and process stability.
Technical Specifications
Parameter
Value
Model
ATV12H075M3
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (three-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
0.75 kW
Output Current
4.2 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
72 x 143 x 131.2 mm
Weight
0.8 kg
Recommended Related Models
Model
Product Name
ATV12H075M2
Schneider Altivar 12 Frequency Converter
ATV12H055M2
Schneider Altivar 12 VFD
ATV12H037M3
Schneider Altivar 12 Compact Drive
ATV320U11M2
Schneider Altivar 320 Compact Drive
Popular Related Models
Model
Product Name
ATV12H018M2
Schneider Altivar 12 Frequency Converter
ATV12H055M3
Schneider Altivar 12 Compact Drive
ATV310H075N4
Schneider Altivar 310 Industrial Drive
ATV320U06M2
Schneider Altivar 320 VFD
Applications
• Designed for compact motor speed control in light industrial automation systems requiring stable variable speed performance.
• Suitable for three-phase small pump systems used in water circulation, cooling loops, and fluid transfer applications.
• Used in HVAC installations such as compact fans, ventilation units, and small air handling systems.
• Applied in light conveyor systems for packaging, sorting, and basic material handling processes.
• Ideal for OEM machinery requiring reliable and space-efficient motor speed regulation.
Key Advantages
• Provides smooth and stable motor speed control using efficient V/f regulation.
• Supports Modbus RS485 communication for seamless PLC and automation integration.
• Three-phase input design improves compatibility in industrial electrical environments.
• Compact housing enables easy installation in space-limited control cabinets.
• Built-in motor protection enhances system safety and operational reliability.
Technical FAQs
Q1: What type of power supply does this model use?
It uses a three-phase 200–240 V AC input supply.
Q2: What is the rated power output?
The rated output power is 0.75 kW.
Q3: Does it support communication with PLC systems?
Yes, it supports Modbus RS485 communication.
Q4: What control method is used?
It uses V/f (voltage/frequency) control for stable motor operation.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty applications.
Q6: Can it be used for pump control?
Yes, it is commonly used in small pump applications.
Q7: Does it include motor protection features?
Yes, it includes overload, thermal, and short-circuit protection.
Q8: Is it suitable for HVAC systems?
Yes, it is widely used in small HVAC fans and ventilation systems.
Q9: Does it require complex commissioning?
No, it supports simple parameter-based setup and fast commissioning.
Q10: What installation environment is required?
It is designed for indoor installation inside a ventilated electrical cabinet.
