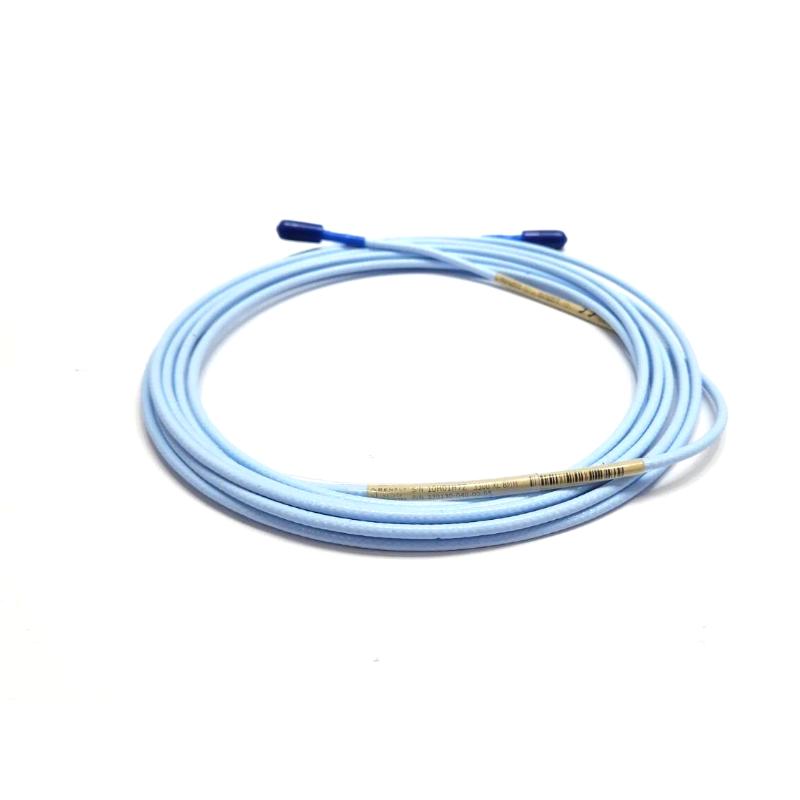

Bently Nevada 330130-090-10-00 3300 XL Standard Extension Cable

Applications

The Bently Nevada 330130-090-10-00 extension cable is used in vibration monitoring systems where proximity probes are connected to monitoring modules across a moderate installation distance. It is commonly found in rotating machinery applications such as turbines, compressors, pumps, and other critical industrial assets operating in continuous production environments.

In practical use, it is typically installed through cable trays or protective conduits to maintain stable signal transmission in environments affected by vibration, heat, and electromagnetic interference.

Advantages

This cable is designed to maintain stable signal integrity in industrial condition monitoring systems. In vibration measurement applications, the consistency of the transmission path plays a key role in ensuring reliable diagnostic results.

It is suitable for long-term industrial operation where equipment runs continuously and cabling is exposed to mechanical stress. Once installed correctly, it functions as a low-maintenance component within the monitoring chain.

It also integrates smoothly into the 3300 XL system architecture, allowing straightforward replacement and system consistency across installations.

Technical FAQs (10 Technical Questions)

Q1: What is the function of this cable?
It transmits vibration and displacement signals between the probe and monitoring system.

Q2: Is this an active component?
No, it is a passive signal transmission cable.

Q3: Does cable condition affect system accuracy?
Yes, signal stability depends on proper installation and cable integrity.

Q4: Can it be used outside the 3300 XL system?
It is intended for use within the 3300 XL monitoring architecture.

Q5: What type of signals does it carry?
It carries low-level vibration and displacement measurement signals.

Q6: Is shielding included?
Yes, it is designed with industrial shielding to reduce electromagnetic interference.

Q7: Is it suitable for harsh environments?
Yes, it is designed for continuous industrial operation conditions.

Q8: Does it require maintenance?
No routine maintenance is normally required unless physical damage occurs.

Q9: Is system verification required after installation?
Yes, system verification is recommended after installation or replacement.

Q10: Is it part of a larger system?
Yes, it is part of the Bently Nevada 3300 XL proximity measurement system.
