Brand:Schneider PLC Item No.:ATV12HU15M2 Product Origin:France Product Dimensions:105 x 142 x 156.2 mm Product Weight:1.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

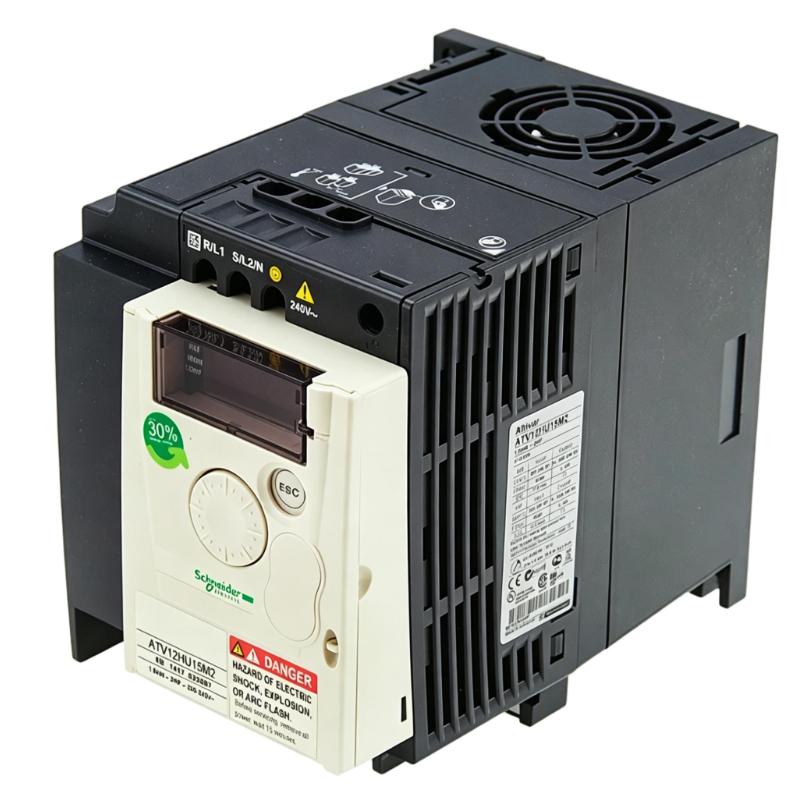

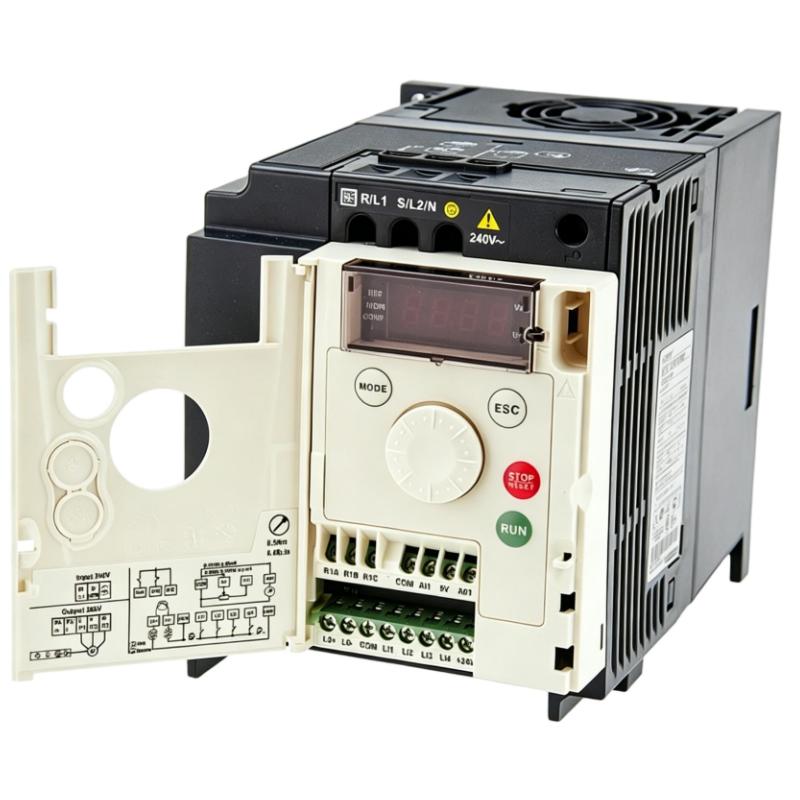

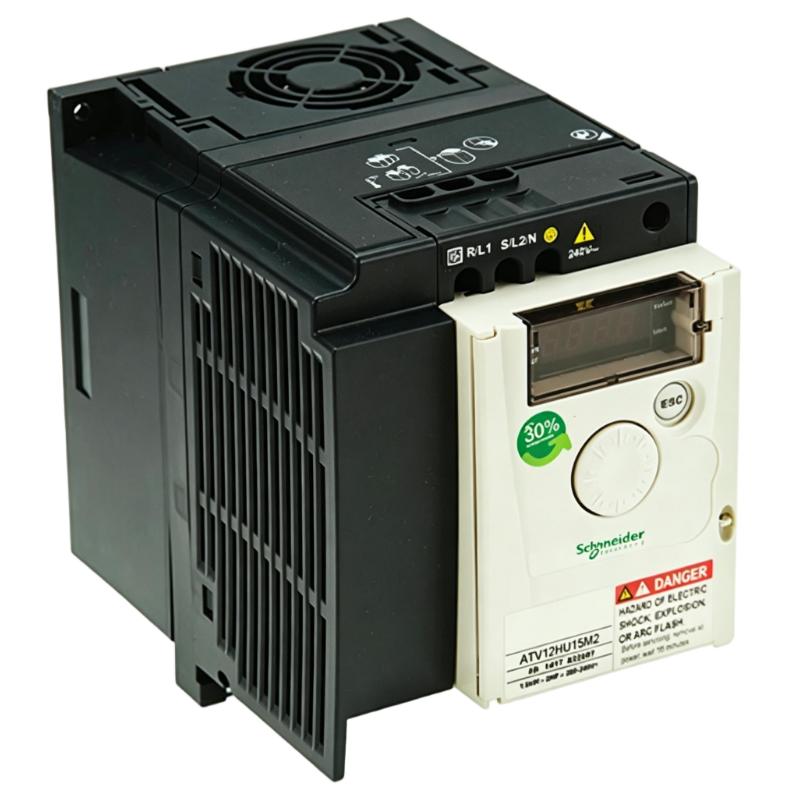

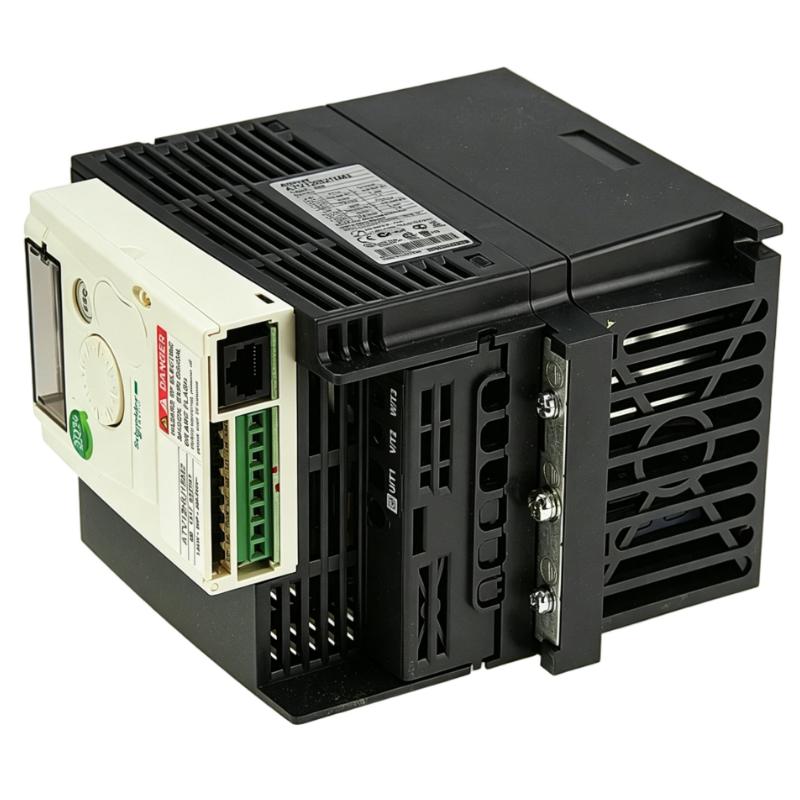

The Schneider ATV12HU15M2 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in light industrial and OEM applications. It delivers efficient speed regulation for small three-phase motors, improving energy efficiency and process stability.
Technical Specifications
Parameter
Value
Model
ATV12HU15M2
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (single-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
1.5 kW
Output Current
7.5 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
105 x 142 x 156.2 mm
Weight
1.4 kg
Recommended Related Models
Model
Product Name
ATV12H075M2
Schneider Altivar 12 Frequency Converter
ATV12H055M2
Schneider Altivar 12 Compact Drive
ATV320U15M2
Schneider Altivar 320 VFD
ATV310HU15N4
Schneider Altivar 310 Industrial Drive
Popular Related Models
Model
Product Name
ATV12H037M2
Schneider Altivar 12 Compact Drive
ATV12H075F1
Schneider Altivar 12 Single-Phase Variant
ATV320U11M2
Schneider Altivar 320 Compact VFD
ATV310H075N4
Schneider Altivar 310 Industrial Drive
Applications
• Designed for compact motor speed control in light industrial automation systems requiring stable variable speed performance.
• Suitable for small pump applications used in water circulation, cooling loops, and fluid transfer systems.
• Used in HVAC installations such as compact fans, ventilation units, and air handling equipment.
• Applied in light conveyor systems for packaging, sorting, and small-scale material handling.
• Ideal for OEM machinery requiring reliable and space-efficient motor speed regulation.
Key Advantages
• Provides smooth and stable motor speed control using efficient V/f regulation.
• Supports Modbus RS485 communication for easy PLC and automation integration.
• Compact housing design allows installation in space-limited control cabinets.
• Integrated motor protection improves operational safety and system reliability.
• Simple parameter configuration enables fast commissioning and reduced setup time.
Technical FAQs
Q1: What type of motor is supported?
It is designed for three-phase asynchronous motors with 200–240 V AC supply.
Q2: What is the rated power of this model?
The rated output power is 1.5 kW.
Q3: Does it support industrial communication?
Yes, it supports Modbus RS485 communication.
Q4: What control method does it use?
It uses V/f control for stable motor speed regulation.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty applications.
Q6: Can it be used for pump systems?
Yes, it is commonly used in small pump and fluid control systems.
Q7: Does it include motor protection functions?
Yes, it includes overload, thermal, and short-circuit protection.
Q8: Is it suitable for HVAC applications?
Yes, it is widely used in small HVAC fans and ventilation systems.
Q9: Does it require complex commissioning?
No, it supports simple parameter-based setup.
Q10: What installation environment is required?
It is designed for indoor installation inside a ventilated control cabinet.
