Brand:Schneider PLC Item No.:ATV12HU15M3 Product Origin:France Product Dimensions:105 x 143 x 131.2 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

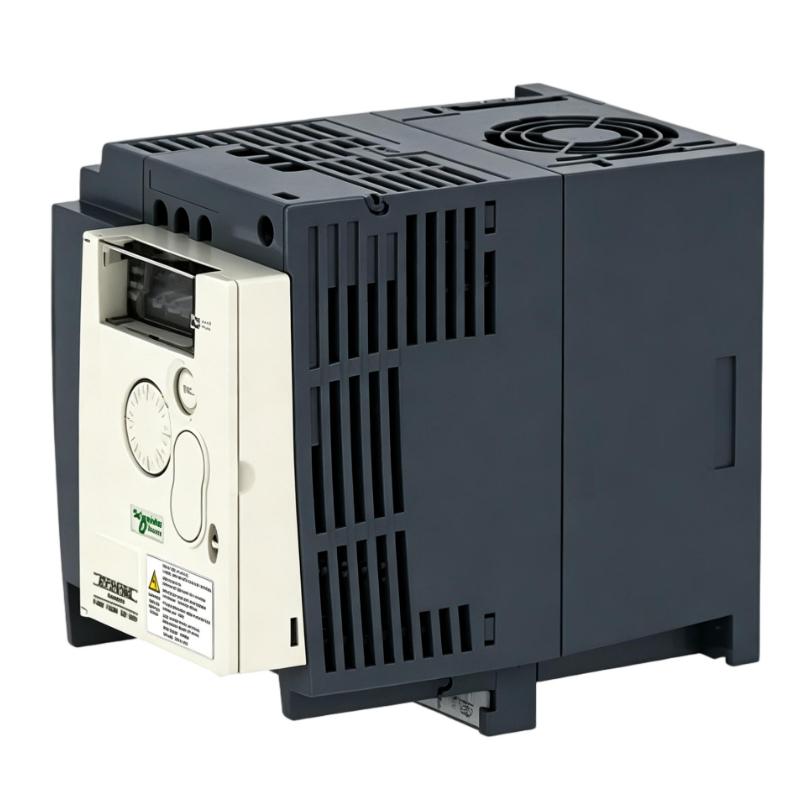

The Schneider ATV12HU15M3 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in light industrial and OEM applications. It delivers efficient speed regulation for small three-phase motors, improving energy efficiency, process stability, and equipment lifespan.
Technical Specifications
Parameter
Value
Model
ATV12HU15M3
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (three-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
1.5 kW
Output Current
7.5 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Output Frequency
0.5–400 Hz
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
105 x 143 x 131.2 mm
Weight
1.2 kg
Recommended Related Models
Model
Product Name
ATV12HU15M2
Schneider Altivar 12 Frequency Converter (Single-phase input)
ATV12H075M3
Schneider Altivar 12 Compact VFD
ATV320U15M2
Schneider Altivar 320 Variable Speed Drive
ATV310HU15N4
Schneider Altivar 310 Industrial Drive
Popular Related Models
Model
Product Name
ATV12H055M2
Schneider Altivar 12 Frequency Converter
ATV12H075F1
Schneider Altivar 12 Single-phase VFD
ATV320U11M2
Schneider Altivar 320 Compact Drive
ATV310H075N4
Schneider Altivar 310 Industrial VFD
Applications
• Designed for compact motor speed control in light industrial automation systems requiring stable variable speed performance.
• Suitable for small pump applications such as water circulation, cooling loops, and fluid transfer systems.
• Used in HVAC installations including compact fans, ventilation units, and small air handling equipment.
• Applied in light conveyor systems for packaging, sorting, and general material handling processes.
• Ideal for OEM machinery requiring reliable and space-efficient motor speed regulation in compact control panels.
Key Advantages
• Provides stable motor speed regulation using efficient V/f control for smooth and reliable operation.
• Supports Modbus RS485 communication for seamless integration with PLC and industrial control systems.
• Three-phase input design improves compatibility in industrial power environments.
• Compact structure allows easy installation in space-limited electrical cabinets.
• Built-in motor protection enhances system safety and reduces operational risk.
Technical FAQs
Q1: What is the rated power of this drive?
It is rated for 1.5 kW (2 HP) motor applications.
Q2: What is the output current?
The rated output current is 7.5 A.
Q3: What type of input supply does it use?
It uses a 200–240 V AC three-phase input supply.
Q4: What motor type is compatible?
It is designed for three-phase asynchronous induction motors.
Q5: Does it support communication protocols?
Yes, it supports Modbus RS485 communication.
Q6: What control method does it use?
It uses V/f (voltage/frequency) control for stable motor operation.
Q7: Is it suitable for pump applications?
Yes, it is commonly used in small pump and fluid control systems.
Q8: Can it be used in HVAC systems?
Yes, it is widely used in small HVAC fans and ventilation systems.
Q9: Does it include motor protection features?
Yes, it includes overload, thermal, and short-circuit protection.
Q10: Is commissioning complex?
No, it supports simple parameter-based setup for fast commissioning.
