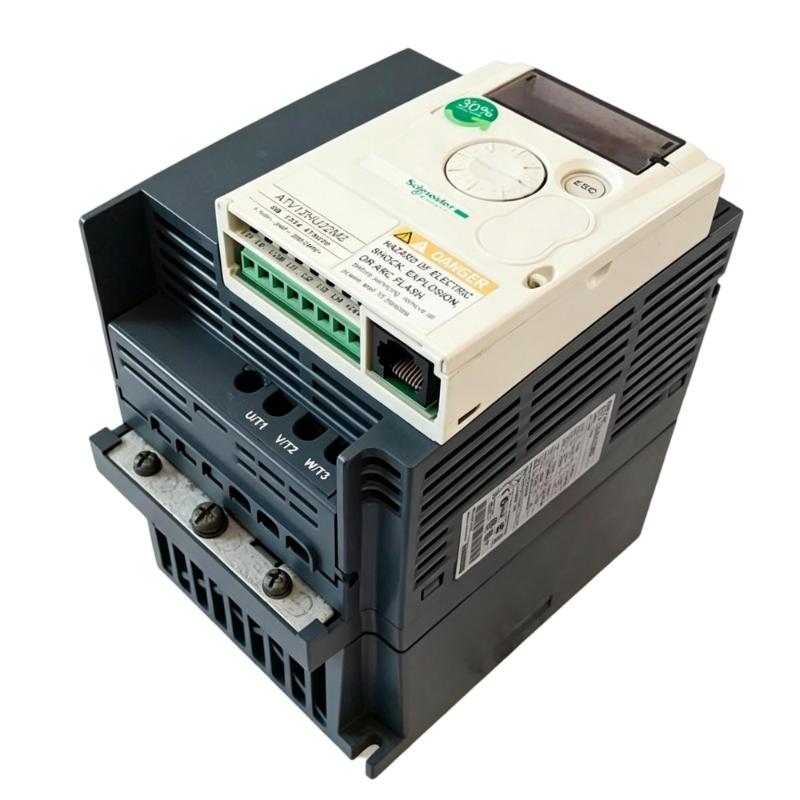

Brand:Schneider PLC Item No.:ATV12HU22M2 Product Origin:France Product Dimensions:105 x 142 x 156.2 mm Product Weight:1.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV12HU22M2 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in industrial and OEM applications. It delivers efficient speed regulation for small three-phase motors while maintaining stable torque performance across a wide operating range.
Technical Specifications
Parameter
Value
Model
ATV12HU22M2
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (single-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
2.2 kW
Output Current
10 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Output Frequency
0.5–400 Hz
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +50°C
Protection Rating
IP20
Dimensions
105 x 142 x 156.2 mm
Weight
1.4 kg
Recommended Related Models
Model
Product Name
ATV12HU15M2
Schneider Altivar 12 Frequency Converter 1.5 kW
ATV12H075M2
Schneider Altivar 12 Frequency Converter 0.75 kW
ATV12H055M2
Schneider Altivar 12 Frequency Converter 0.55 kW
ATV320U22M2
Schneider Altivar 320 Compact VFD 2.2 kW
Popular Related Models
Model
Product Name
ATV12H037M2
Schneider Altivar 12 Frequency Converter
ATV12H075F1
Schneider Altivar 12 VFD Single Phase
ATV310HU22N4
Schneider Altivar 310 Industrial Drive
ATV320U15M2
Schneider Altivar 320 Variable Speed Drive
Applications
• Designed for compact motor speed control in light industrial automation systems requiring stable variable speed performance.
• Suitable for small pump applications such as water circulation, cooling loops, and light fluid transfer systems.
• Used in HVAC installations including compact fans, ventilation units, and small air handling equipment.
• Applied in light conveyor systems for packaging, sorting, and general material handling processes.
• Ideal for OEM machinery requiring reliable and space-efficient motor speed regulation in compact control panels.
Key Advantages
• Provides stable motor speed regulation using efficient V/f control for smooth and predictable operation.
• Integrated Modbus RS485 communication enables easy integration with PLC and industrial control systems.
• Supports higher power output in a compact footprint, suitable for demanding light industrial loads.
• Built-in motor protection improves system reliability and reduces risk of electrical faults.
• Simple parameter structure enables fast commissioning and reduced setup complexity.
Technical FAQs
Q1: What type of motor is compatible with this drive?
It is designed for three-phase asynchronous motors with 200–240 V supply systems.
Q2: What is the rated power of this model?
The rated output power is 2.2 kW (3 HP).
Q3: Does it support industrial communication?
Yes, it supports Modbus RS485 communication for PLC integration.
Q4: What control method does it use?
It uses V/f control for stable and simple motor speed regulation.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous-duty industrial applications.
Q6: Can it be used for pump control?
Yes, it is widely used in pump and fluid handling applications.
Q7: Does it include motor protection features?
Yes, it includes overload, thermal, and short-circuit protection functions.
Q8: Is it suitable for HVAC systems?
Yes, it is commonly used in HVAC fans and ventilation systems.
Q9: Does it support analog speed reference?
Yes, it supports analog inputs for external speed control reference.
Q10: Is commissioning complex?
No, it supports simple parameter-based setup for fast commissioning.
