Introduction

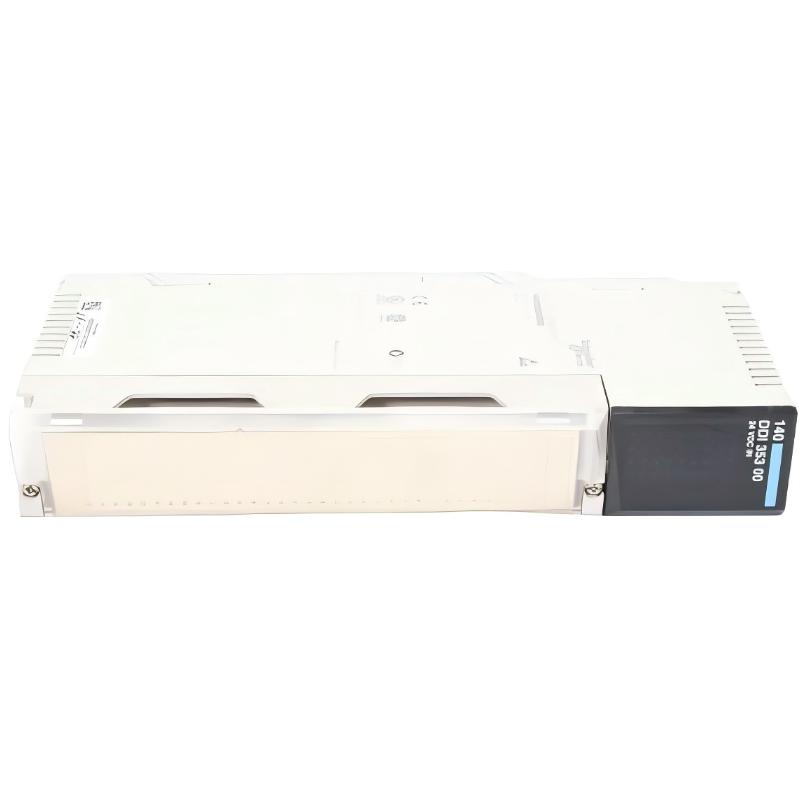

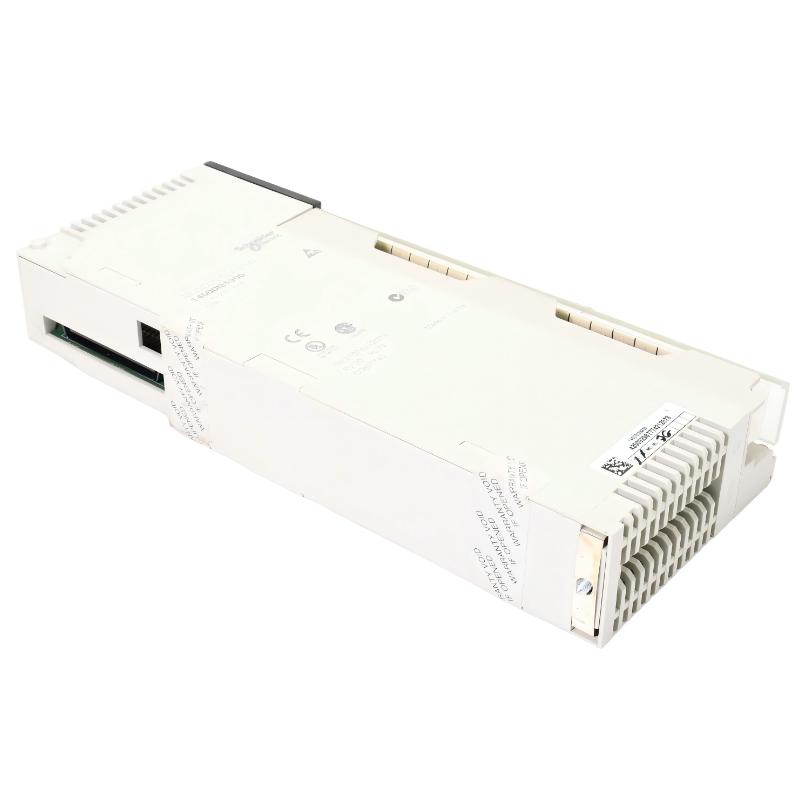

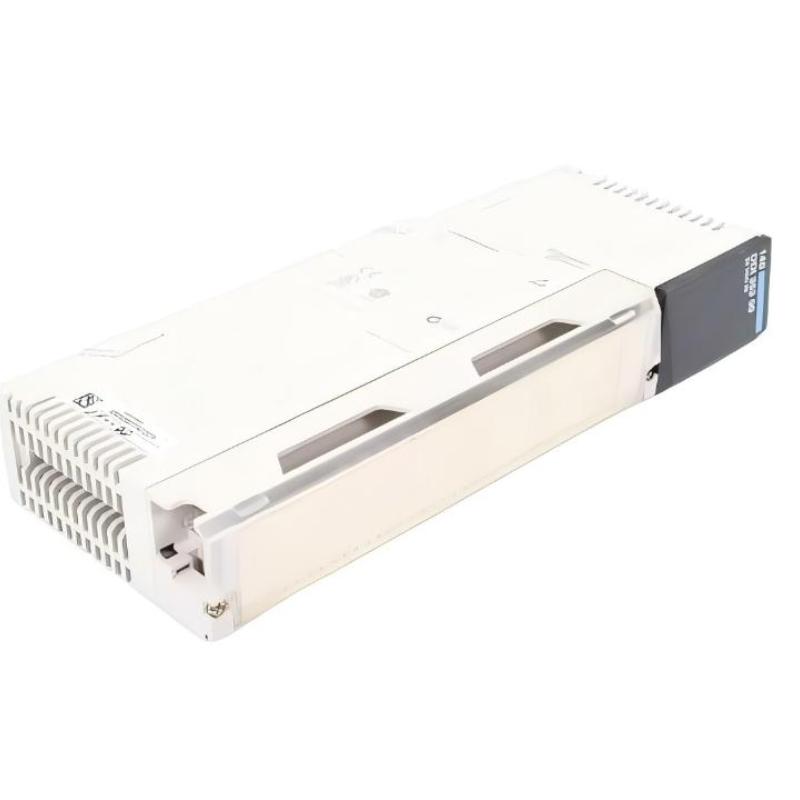

The Schneider 140DDI35300 Discrete Input Module delivers high-reliability digital input acquisition for industrial automation and control systems. Designed for Modicon PLCs, it captures signals from switches, sensors, and relays with precision and speed. Its robust construction, diagnostic LEDs, and modular design make it ideal for applications requiring secure, scalable, and reliable digital input solutions.

Technical Specifications

Specification	Details
Module Type	Discrete Input Module
Number of Channels	32 Discrete Inputs
Input Voltage	24V DC nominal
Redundancy	Supports integration in redundant PLCs
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	0.3 kg
Dimensions	103.9 × 40.3 × 250 mm
Connectivity	Screw terminal blocks
Certifications	CE Compliant

Recommended Related Models

Schneider 140CPU43400 PLC Processor
140DDO35300 Discrete Output Module
140AVI03000C Analog Input Module

Popular Related Models

Schneider 140DDI35100 Discrete Input Module
140DDO35300C Discrete Output Module
140ACI04000C Analog Input Module

Applications

The Schneider 140DDI35300 Discrete Input Module is designed for reliable acquisition of digital signals in industrial automation systems. Typical applications include:

Monitoring switches, sensors, and relays in manufacturing, chemical, and power plants
Integration with Modicon PLC systems for robust digital input processing
Factory automation requiring accurate detection of discrete signals
Redundant control systems where uninterrupted digital input is critical
Industrial environments demanding scalable and high-reliability input solutions

This module ensures fast and accurate detection of input signals for efficient and reliable system control.

Advantages

High Reliability: Maintains stable digital connections even under harsh industrial conditions.
Compact Modular Design: Easily fits into Modicon PLC racks for scalable I/O expansion.
Diagnostic Indicators: LEDs provide real-time status of input channels and fault conditions.
Industrial Durability: Resistant to vibration, temperature variations, and electrical interference.
Maintenance Friendly: Clear labeling and rugged design enable quick inspection and replacement.

Technical FAQs

What is the primary function of the 140DDI35300?
- Captures and processes discrete digital signals from field devices.
How many input channels does it have?
- Supports 32 discrete input channels.
What is the supported input voltage?
- Standard 24V DC industrial signals.
Can it be used in redundant systems?
- Yes, compatible with redundant Modicon PLC configurations.
Does it provide diagnostic feedback?
- Yes, onboard LEDs indicate input status and faults.
What is the operating temperature range?
- -20°C to 60°C (-4°F to 140°F).
Is it suitable for harsh industrial environments?
- Yes, engineered to withstand vibration, temperature extremes, and electrical noise.
Is hot-swapping supported?
- Yes, modules can be replaced without shutting down the system in redundant setups.
What type of connectivity is used?
- Screw terminal blocks for secure and reliable wiring.
What maintenance is required?
- Minimal; periodic inspection of terminals and LED indicators is recommended.
