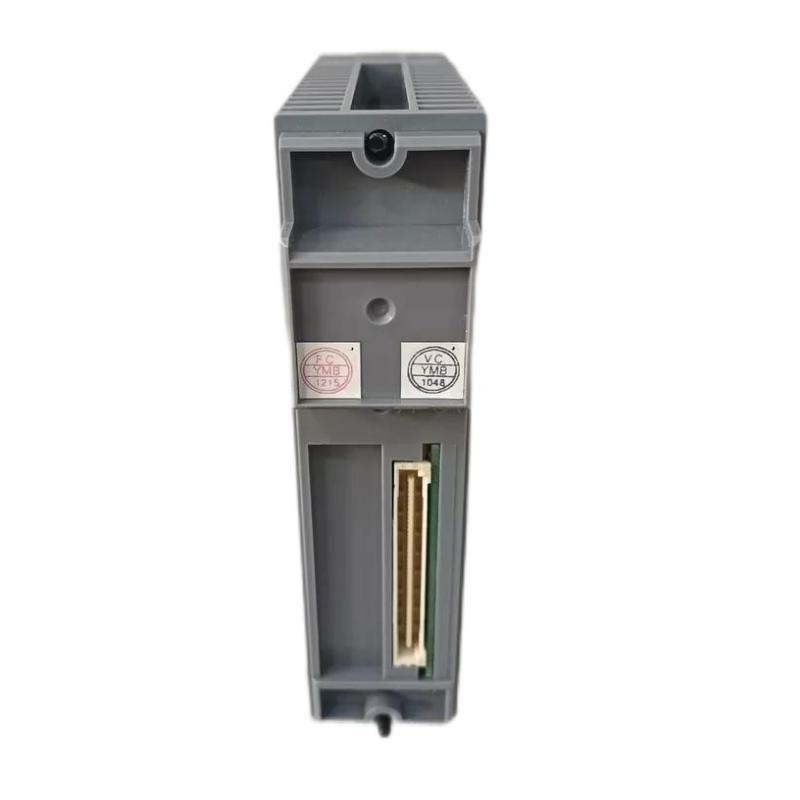

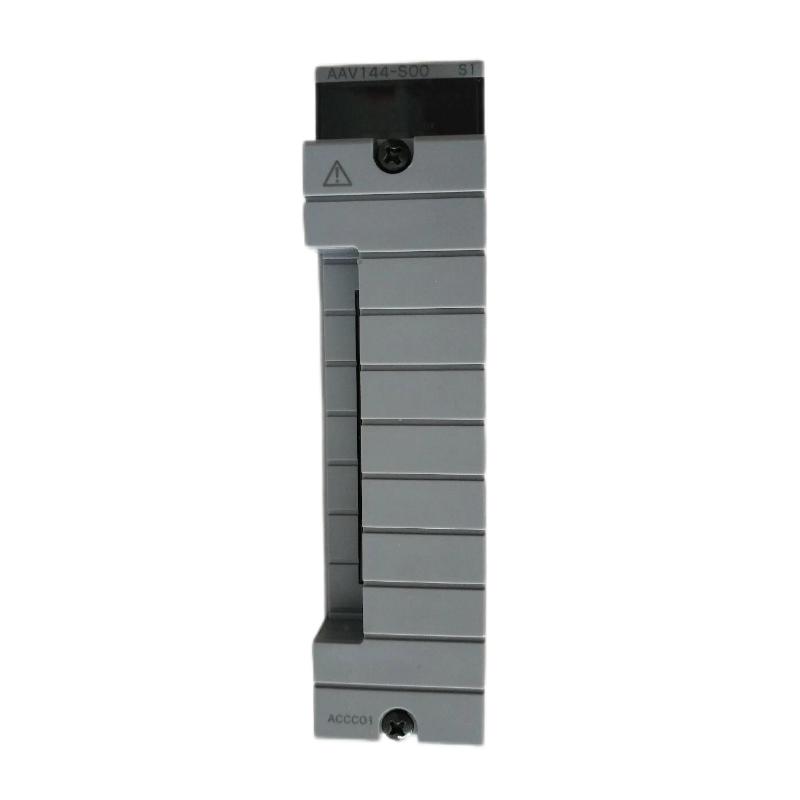

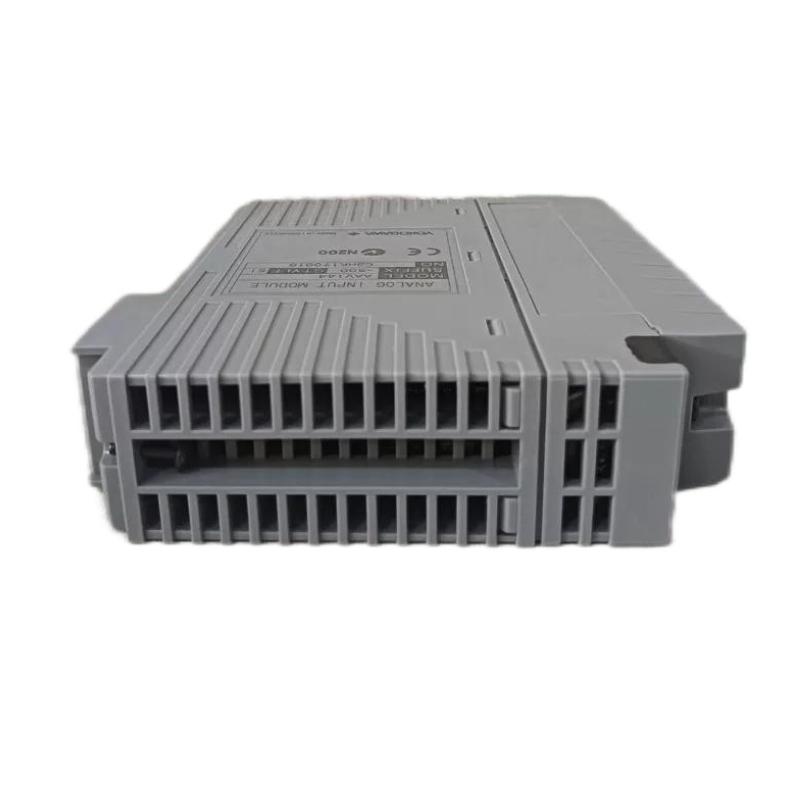

The Yokogawa AAV144‑S00 is a robust analog input/output signal module developed for industrial automation and advanced process control systems. Engineered to bridge field instrumentation and digital controllers, it accepts a broad range of analog sensor inputs and converts them into clean, standardized outputs for PLCs, DCS, and SCADA platforms. With strong noise immunity, flexible signal support, and reliable performance under industrial conditions, the AAV144‑S00 helps deliver high‑fidelity data for measurement, monitoring, and control applications. Its compact and modular design ensures easy integration into existing control architectures.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Yokogawa AAV144‑S00 |
| Module Type | Analog Input/Output Signal Module |
| Supported Input Signals | Thermocouple, RTD, Voltage, Current, mV |
| Supported Output Signals | 4–20 mA DC / 0–10 V DC |
| Resolution | Equivalent to 16‑bit |
| Measurement Accuracy | ±0.1 % full scale |
| Electrical Isolation | Galvanic isolation between I/O and system |
| Typical Response Time | ≤100 ms |
| Operating Temperature Range | −20 °C to +60 °C |
| Mounting Options | DIN Rail / Panel Mount |
| Dimensions (W×H×D) | 45 mm × 120 mm × 100 mm |
| Weight | 0.34 kg |
