Brand:Epro PLC Item No.:PR6425/010-100 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

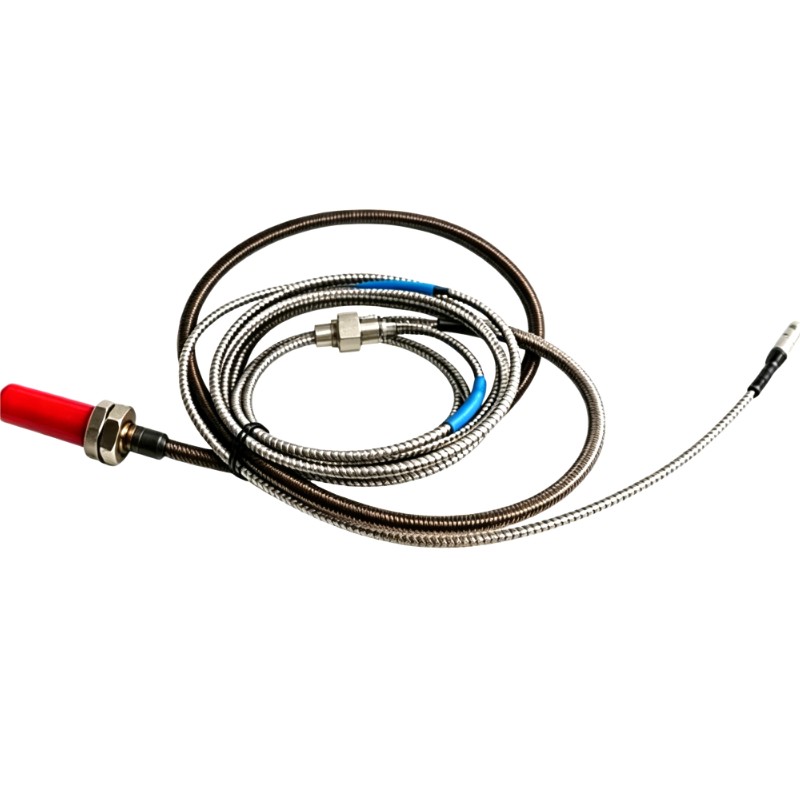

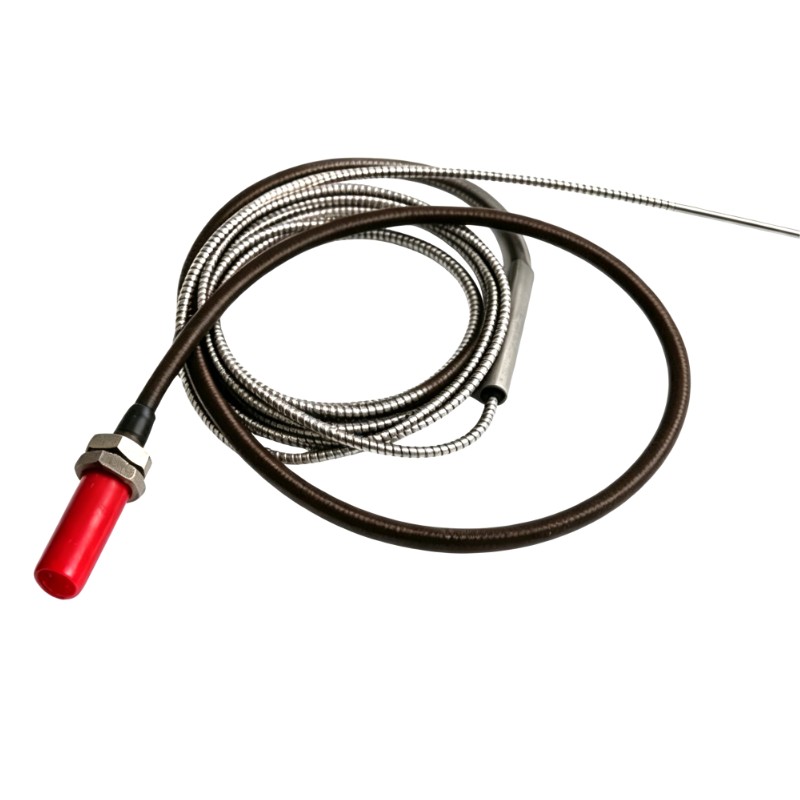

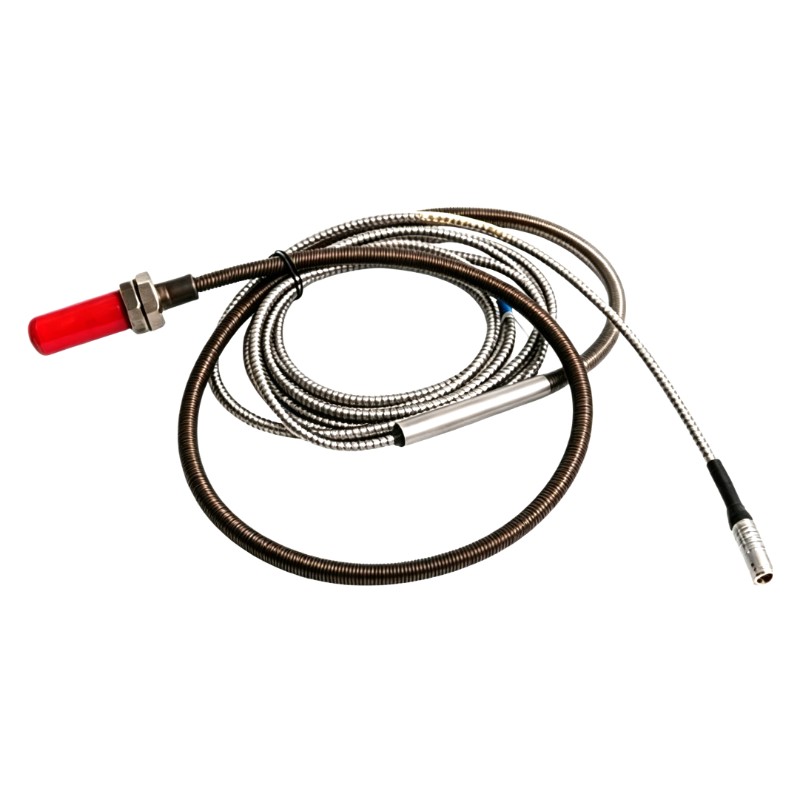

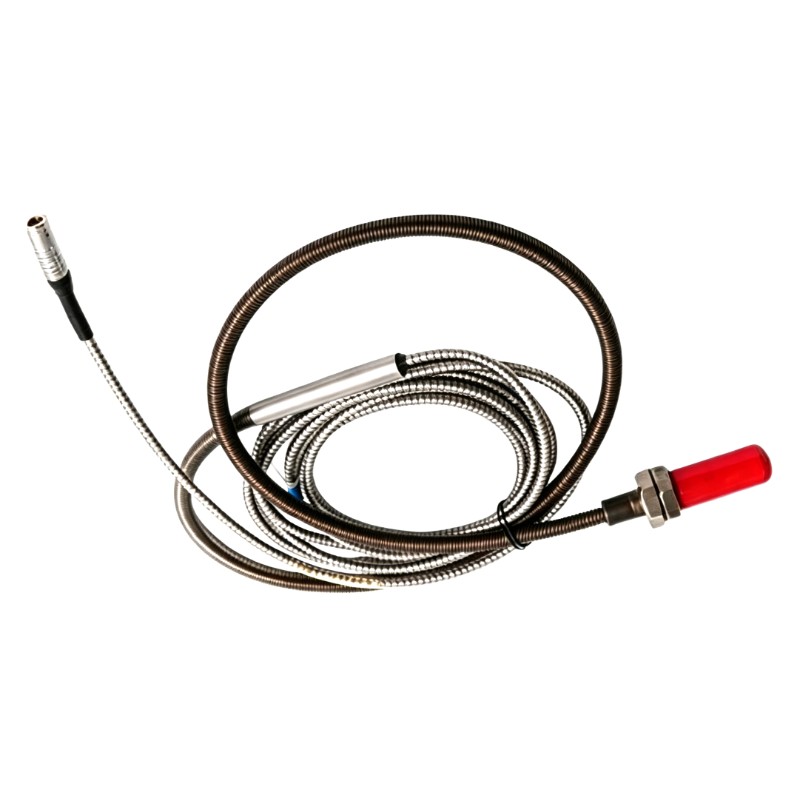

The Epro PR6425/010-100 16 mm Eddy Current Sensor is a high-precision non-contact displacement probe designed for critical rotating machinery monitoring. It provides accurate measurement of shaft vibration, eccentricity, and axial movement, making it essential for industrial condition monitoring and protection systems.
Technical Specifications
Parameter
Value
Model
PR6425/010-100
Series
Epro PR6425
Sensor Type
Eddy Current Displacement Sensor
Sensor Head Diameter
16 mm
Measurement Principle
Non-contact eddy current
Measurement Range
±2.0 mm
Dynamic Range
0–1000 µm
Sensitivity
4 V/mm (system dependent)
Target Material
Conductive ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Operating Temperature
-35°C to +380°C
Signal Output
Analog via signal conditioning system
Installation Type
Proximity probe mounting
Weight
0.5 kg
Recommended Related Models
Model
Product Name
PR6424/111-000
Epro Eddy Current Displacement Sensor
PR6423/010-100
Epro Vibration Monitoring Probe
PR6425/000-000
Epro Standard 16 mm Sensor Variant
CON021
Epro Signal Converter Module
Popular Related Models
Model
Product Name
PR6426/010-100
Epro Eddy Current Sensor Series
PR9268/302-000
Epro Vibration Monitoring Sensor
MMS6000 System
Epro Machinery Monitoring System
CON011
Epro Signal Conditioning Unit
Applications
• Used in turbine vibration monitoring systems for steam, gas, and hydro power generation units.
• Applied in rotating machinery such as compressors, pumps, and industrial fans for continuous shaft displacement measurement.
• Suitable for condition monitoring systems in petrochemical and power plant environments.
• Integrated into machinery protection systems for early detection of imbalance, misalignment, and bearing wear.
• Used in predictive maintenance architectures requiring high-precision non-contact measurement of rotating shafts.
Key Advantages
• Non-contact eddy current measurement eliminates mechanical wear and ensures long service life.
• High-resolution sensing provides accurate detection of shaft vibration and displacement changes.
• Stable performance under high temperature and high vibration industrial environments.
• Compatible with Epro monitoring and signal conversion systems for seamless integration.
• Reliable long-term operation with minimal drift in demanding continuous monitoring applications.
Technical FAQs
Q1: What is the operating principle of this sensor?
It uses eddy current technology to measure distance changes between the probe tip and a conductive metal target.
Q2: What type of equipment is it used with?
It is typically used with turbines, compressors, pumps, and other rotating industrial machinery.
Q3: Does it require physical contact with the shaft?
No, it operates as a non-contact displacement and vibration sensor.
Q4: What signals does the system output?
It generates an analog signal proportional to the gap between the sensor and target surface.
Q5: What is the recommended target material?
Ferromagnetic steel shafts such as AISI 4140 or equivalent.
Q6: Can it measure both vibration and position?
Yes, it measures both static displacement and dynamic vibration.
Q7: Is it suitable for high-speed machinery?
Yes, it is designed for high-speed rotating equipment monitoring.
Q8: Does it support industrial monitoring systems?
Yes, it is compatible with Epro signal conditioning and monitoring platforms.
Q9: What environmental conditions can it withstand?
It is designed for high-temperature, high-vibration industrial environments.
Q10: Is calibration required during installation?
Yes, it typically requires calibration with a compatible signal converter module.
