Brand:Epro PLC Item No.:PR6470/222-110 Product Origin:Germany Product Dimensions:365 × 65 × 113 mm Product Weight:4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

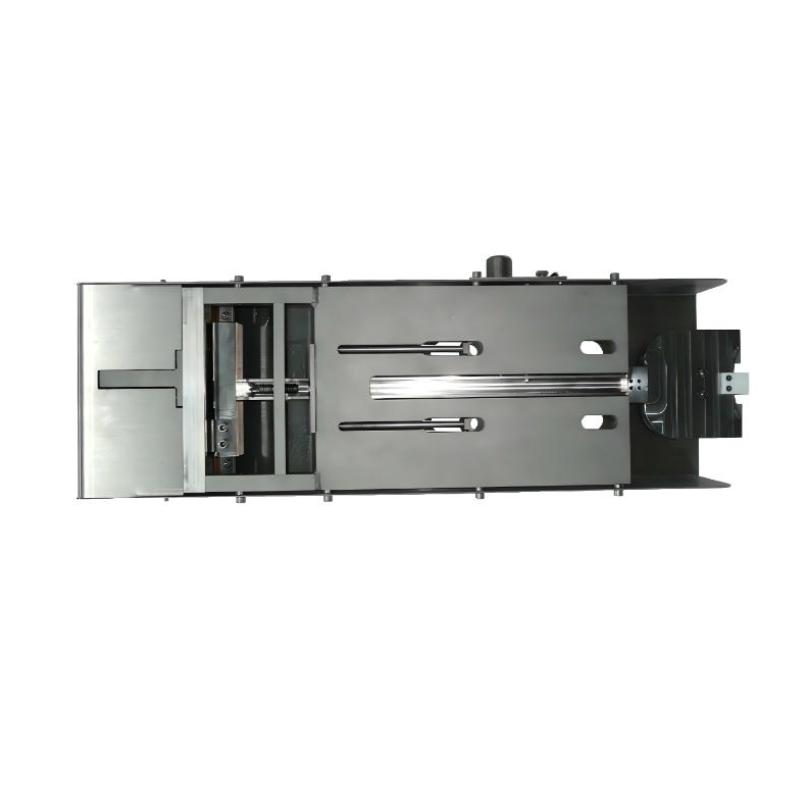

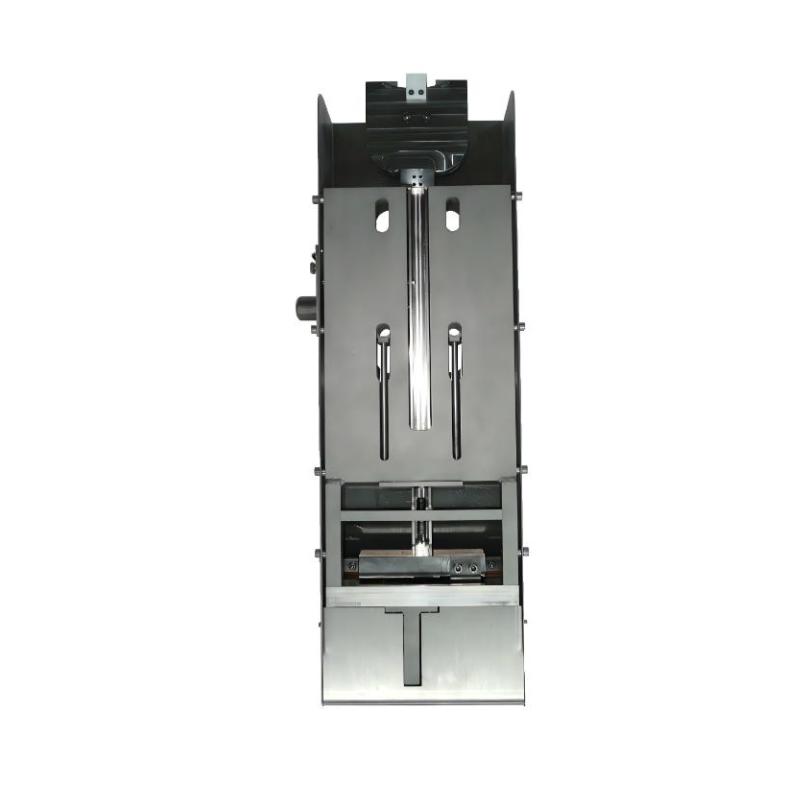

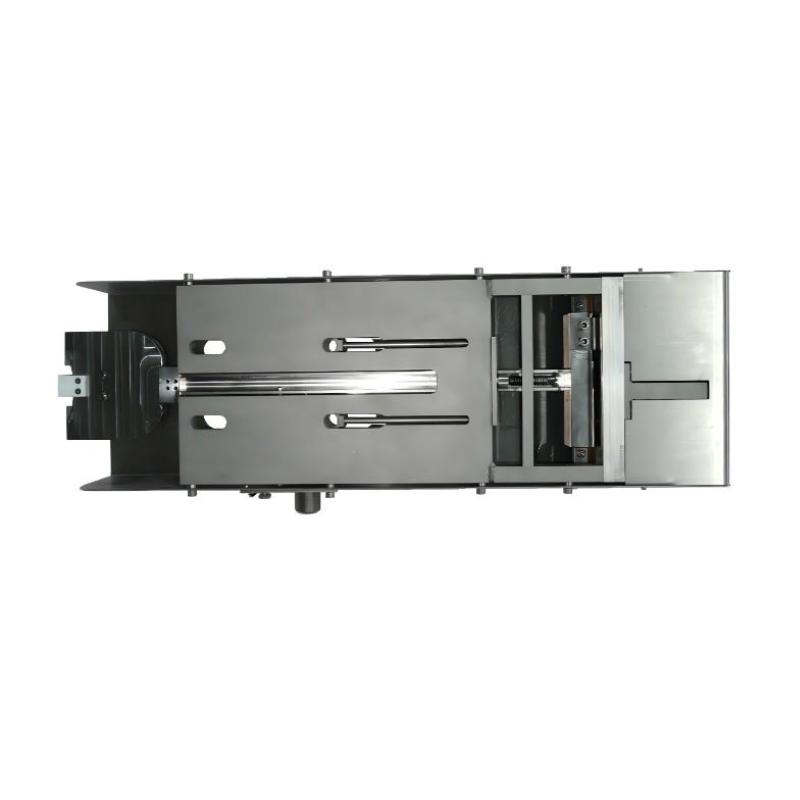

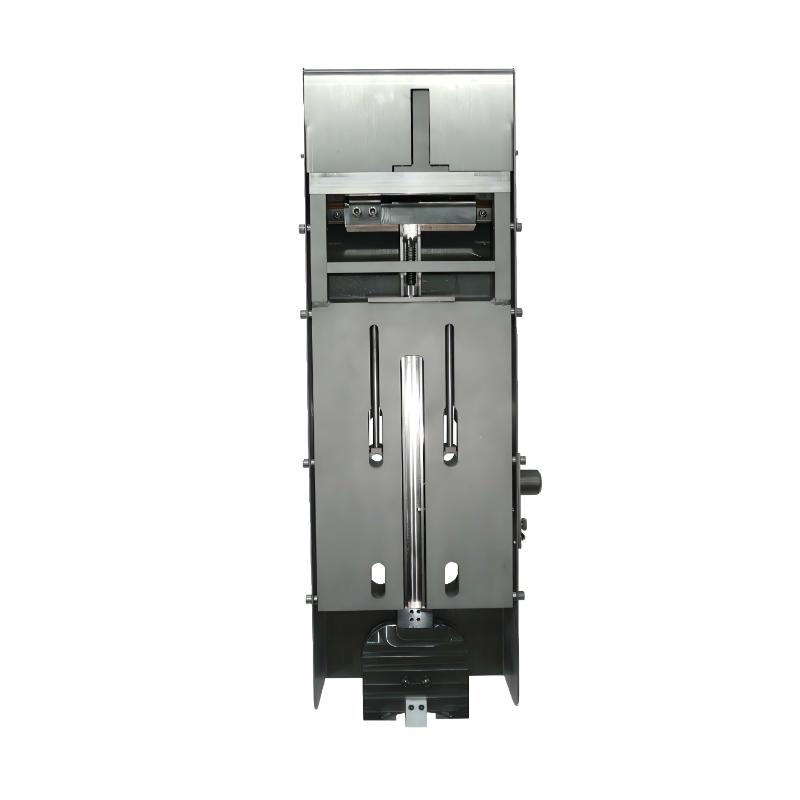

The Epro PR6470/222-110 Probe Pendulum Module is a mechanical interface component used in eddy-current based monitoring systems for rotating machinery. It is designed to transfer axial movement of a shaft or rotor assembly to a fixed measurement point where a proximity probe can detect displacement indirectly.
This configuration is typically applied in turbine and compressor systems where direct sensor placement is restricted due to mechanical or environmental limitations.
Technical Specifications
Parameter
Specification
Product Type
Probe Pendulum Module
Model
PR6470/222-110
Manufacturer
Epro
Function
Mechanical displacement transmission
Application
Indirect shaft axial movement measurement
Compatible System
Epro eddy-current probe systems
Construction Material
Industrial-grade metal alloy (varies by configuration)
Mounting Type
Mechanical fixture / bracket installation
Dimensions
365 × 65 × 113 mm
Weight
4 kg (8.82 lb)
Operating Use
Turbine and compressor monitoring systems
Recommended Related Models
PR6470/221-110
PR6470/223-110
PR6470/224-110
PR6470/222-120
PR6470/210-110
Popular Related Models
PR6470/223-120
PR6470/300-000
PR6470/111-110
PR6470/400-120
PR6423/222-110
Applications
Indirect shaft displacement measurement in turbomachinery systems
Axial movement transmission for eddy-current proximity probe setups
Steam and gas turbine condition monitoring installations
Compressor and pump shaft position measurement systems
Retrofit monitoring solutions where direct probe installation is not feasible
Industrial machinery protection and vibration monitoring systems
Advantages
Mechanical pendulum design for indirect displacement transfer
Compatible with Epro eddy-current probe measurement systems
Suitable for turbine and compressor monitoring configurations
Robust construction for industrial operating environments
Stable mechanical transmission of axial movement
Designed for use in constrained installation geometries
Technical FAQs (10 Questions)
Q1: What is the main function of the PR6470/222-110?
It transmits axial shaft movement mechanically to an eddy-current probe for indirect measurement.
Q2: Which probe systems is it compatible with?
It is typically used with Epro PR6423 and related eddy-current probe systems.
Q3: What type of measurement does it support?
It supports indirect axial displacement measurement in rotating machinery.
Q4: Is it an electronic or mechanical device?
It is a purely mechanical signal transmission component.
Q5: Where is it commonly installed?
It is used in turbine and compressor monitoring assemblies.
Q6: Does it require electrical power?
No, it operates mechanically without electrical supply.
Q7: Can it be used in high vibration environments?
Yes, it is designed for industrial vibration conditions.
Q8: Does it require calibration?
Calibration is performed at system level with the connected probe and monitoring module.
Q9: What happens if alignment is incorrect?
Misalignment may affect measurement accuracy and linear response.
Q10: Is it suitable for retrofit applications?
Yes, it is often used in retrofit installations where direct mounting is not possible.
