Brand:Epro PLC Item No.:PR6470/223-120 Product Origin:Germany Product Dimensions:365 × 65 × 113 mm Product Weight:4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

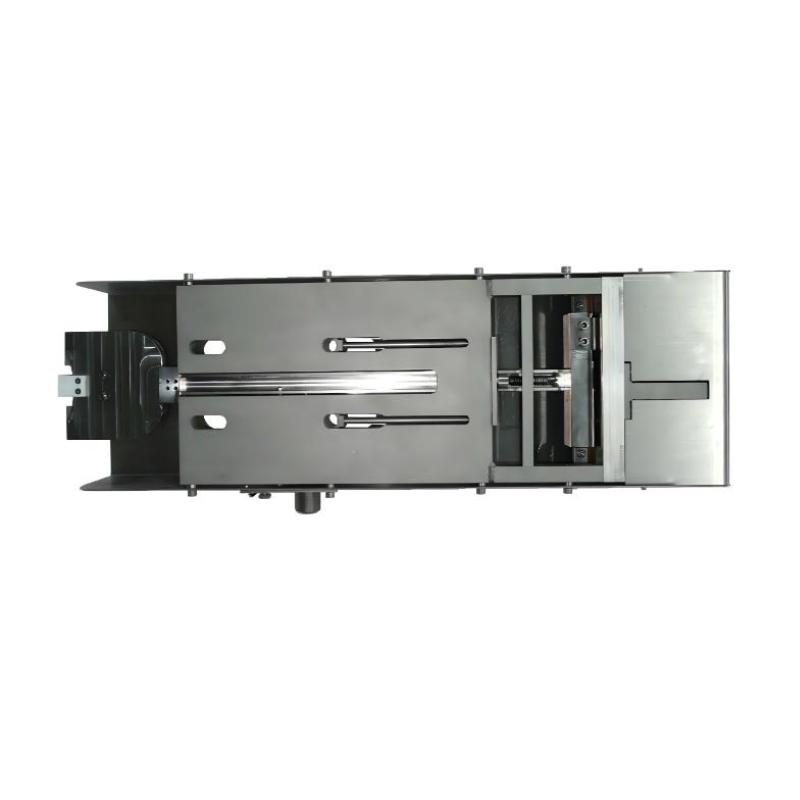

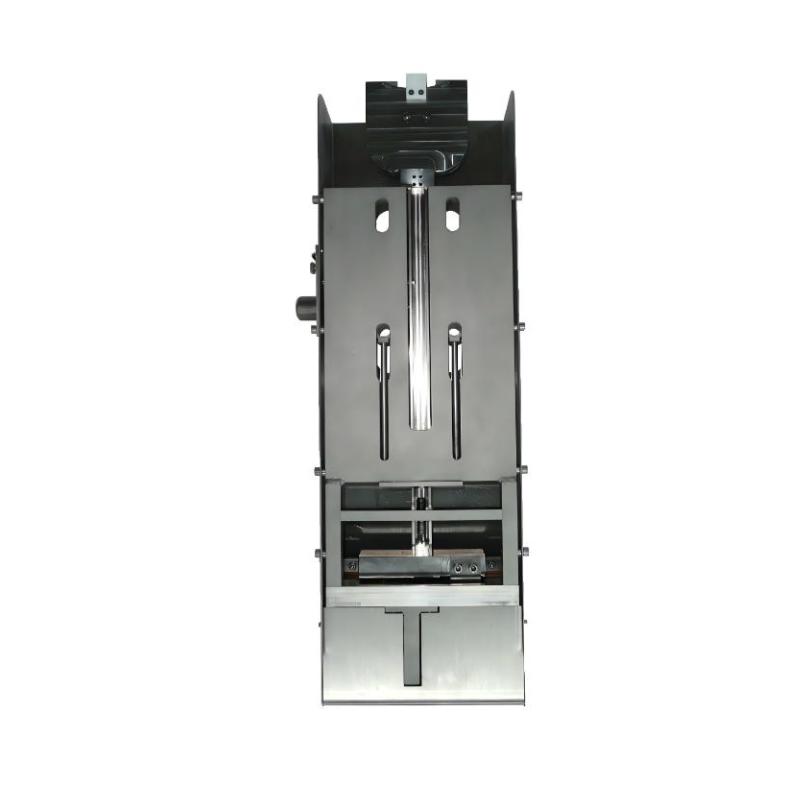

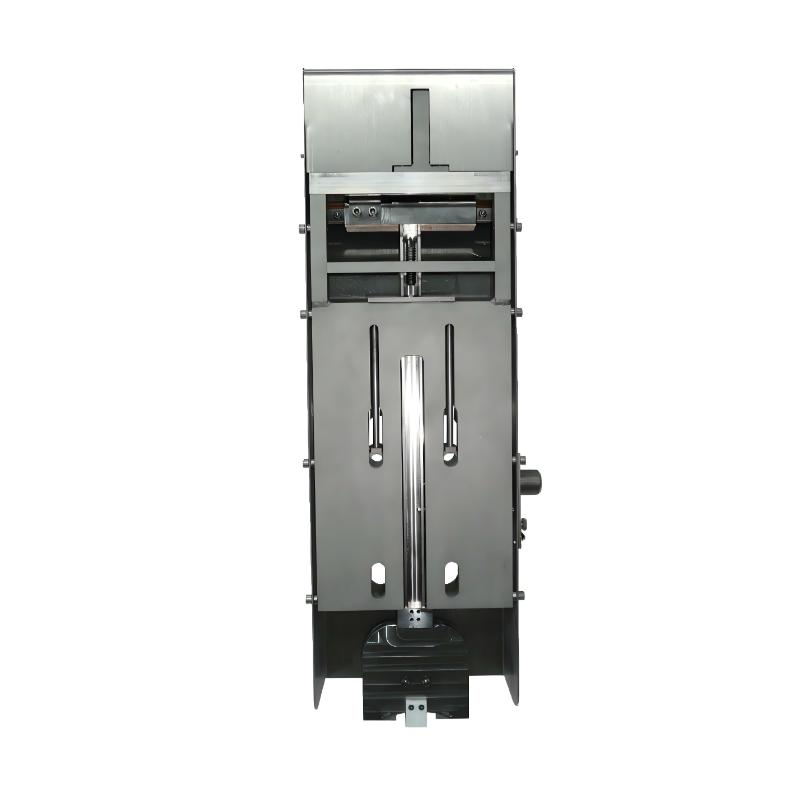

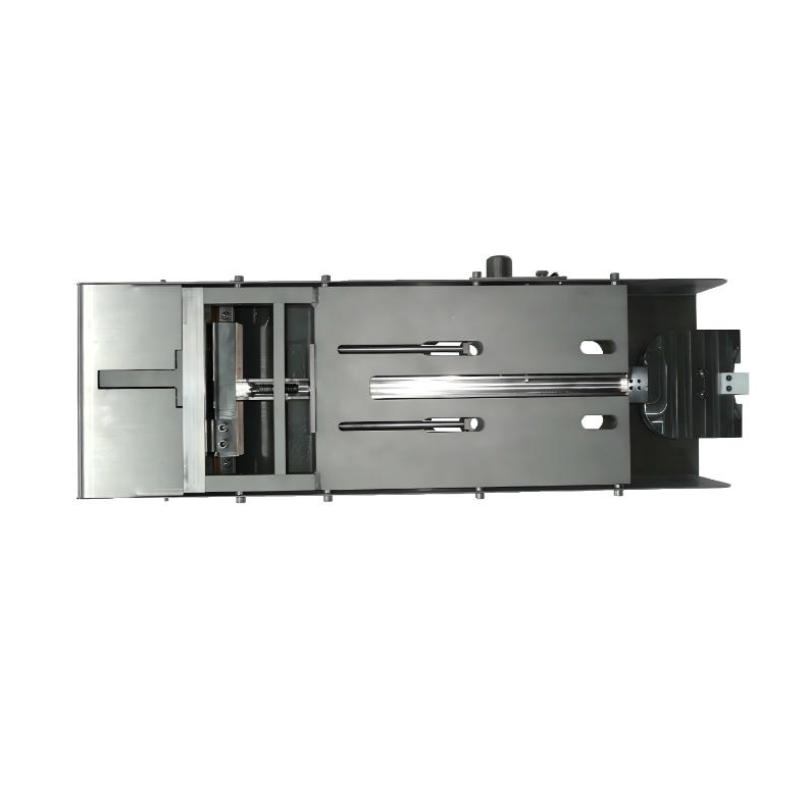

The Epro PR6470/223-120 Probe Pendulum Module is a mechanical interface component used in eddy-current based machinery monitoring systems. It is designed to transmit axial movement from rotating machinery to a fixed measurement point where a proximity probe can detect displacement indirectly.
It is typically applied in turbine and compressor systems where direct probe installation is not practical due to structural or operational constraints.
Technical Specifications
Parameter
Specification
Product Type
Probe Pendulum Module
Model
PR6470/223-120
Manufacturer
Epro
Function
Mechanical displacement transmission
System Type
Eddy-current probe support system
Compatible Probe Series
Epro PR6423 / PR6424
Construction
Industrial-grade metal assembly
Mounting Type
Mechanical bracket / flange installation
Dimensions
365 × 65 × 113 mm
Weight
4 kg (8.82 lb)
Application
Turbomachinery monitoring systems
Recommended Related Models
PR6470/221-110
PR6470/222-110
PR6470/224-110
PR6470/300-000
PR6470/400-120
Popular Related Models
PR6470/111-110
PR6470/210-110
PR6423/222-110
PR6424/014-040
PR6453/341-001
Applications
Shaft axial displacement transmission in turbine monitoring systems
Indirect measurement support for eddy-current proximity probe systems
Compressor and pump shaft position monitoring assemblies
Steam and gas turbine condition monitoring configurations
Industrial rotating machinery protection systems
Retrofit installations where direct probe mounting is restricted
Advantages
Mechanical pendulum design for indirect displacement transfer
Compatible with Epro eddy-current probe measurement systems
Stable mechanical response under continuous industrial operation
Suitable for constrained installation environments
Robust structure for rotating machinery applications
Designed for integration with standard Epro monitoring chains
Technical FAQs (10 Questions)
Q1: What is the function of this pendulum module?
It transfers axial movement mechanically to a connected eddy-current probe system for measurement.
Q2: Which probe systems is it used with?
It is typically used with Epro PR6423 and related eddy-current probe systems.
Q3: Does it require electrical power?
No, it is a purely mechanical component.
Q4: What type of measurement does it support?
It supports indirect axial displacement measurement.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial monitoring environments.
Q6: Can it be used in retrofit projects?
Yes, it is commonly used where direct probe installation is not possible.
Q7: Does it affect signal processing?
It acts as a mechanical transmission element and does not process signals electronically.
Q8: What happens if alignment is incorrect?
Incorrect alignment may reduce measurement accuracy.
Q9: Is calibration required?
Calibration is performed at system level with the connected probe and transmitter.
Q10: What industries use this module?
It is used in power generation, oil & gas, and heavy industrial machinery systems.
