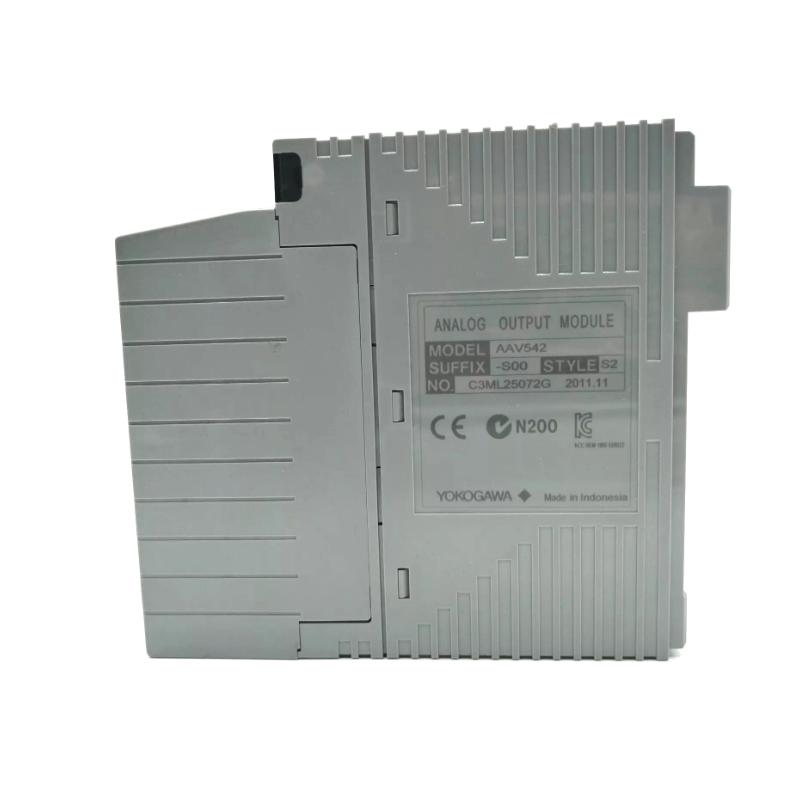

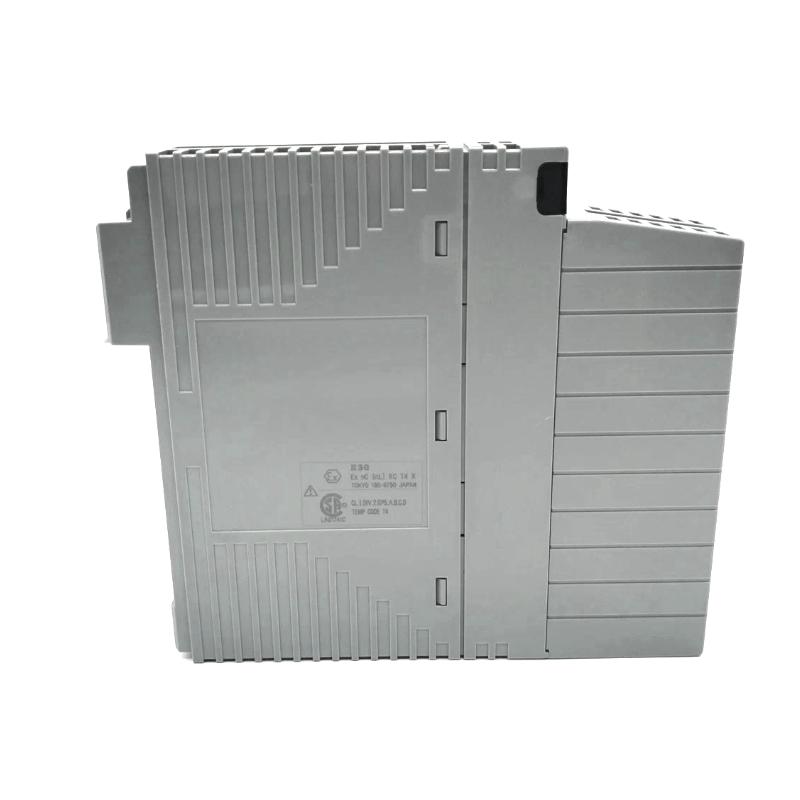

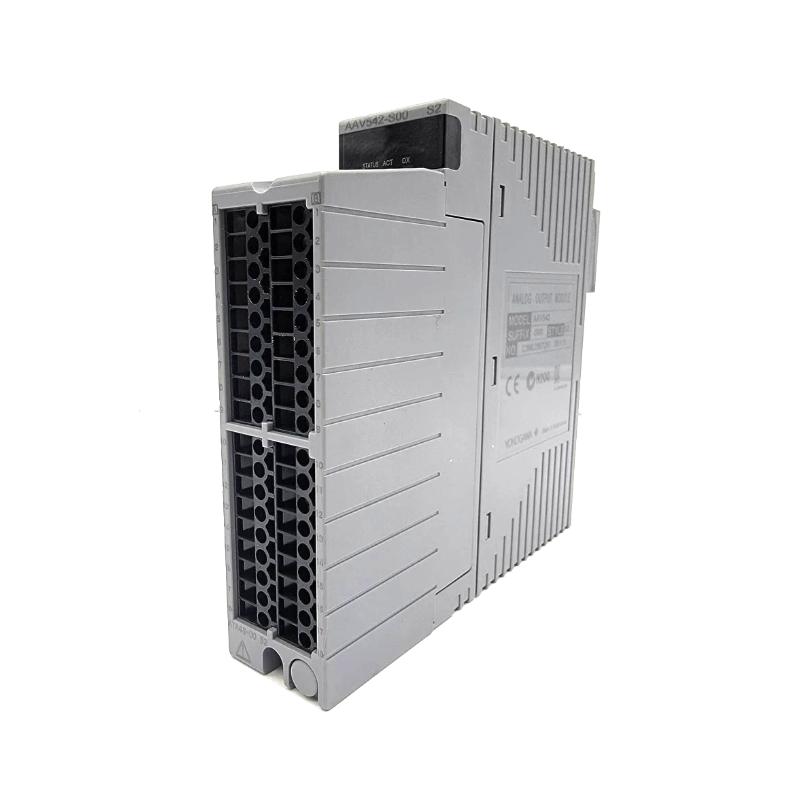

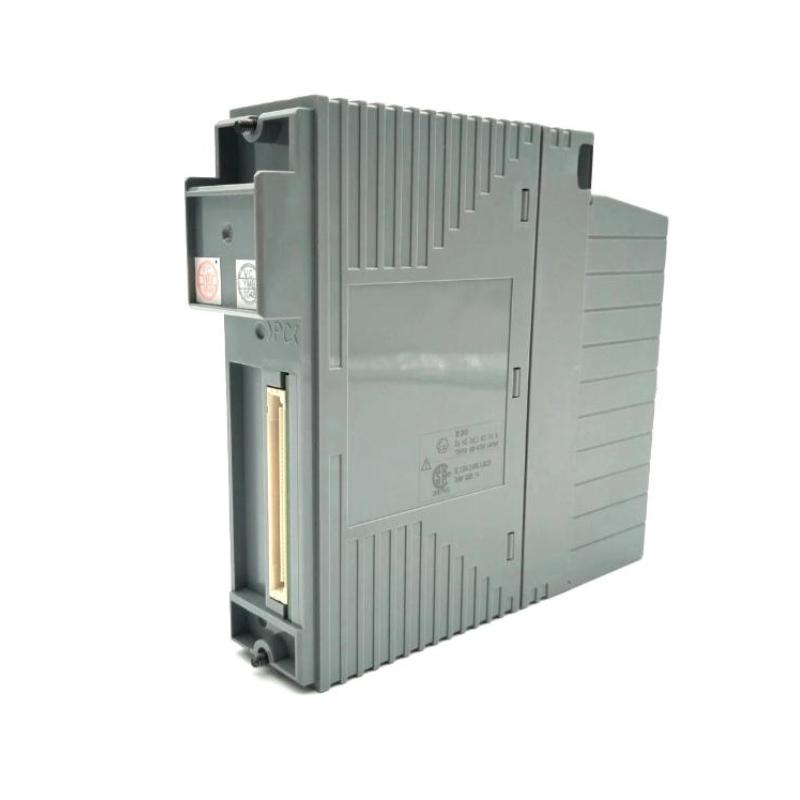

The Yokogawa AAV542 is a rugged analog input/output signal module designed for demanding industrial automation and process control applications. It provides a reliable interface between field sensors and higher‑level controllers by capturing, conditioning, and converting a wide range of analog signals into clean, standardized outputs. With excellent noise immunity, high accuracy, and broad signal compatibility, the AAV542 enhances system visibility and control performance in environments such as manufacturing, energy, utilities, and environmental monitoring. Its compact, modular design ensures seamless integration into existing PLC, DCS, or SCADA infrastructures.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Yokogawa AAV542 |
| Module Type | Analog Input/Output Signal Module |
| Supported Input Signals | Thermocouple, RTD, Voltage, Current, mV |
| Supported Output Signals | 4–20 mA DC / 0–10 V DC |
| Resolution | Equivalent to 16‑bit |
| Accuracy | ±0.1 % full scale |
| Isolation | Galvanic isolation between I/O and system |
| Typical Response Time | ≤100 ms |
| Operating Temperature Range | −20 °C to +60 °C |
| Mounting Options | DIN Rail / Panel Mount |
| Dimensions (W×H×D) | 55 mm × 130 mm × 100 mm |
| Weight | 0.42 kg |
