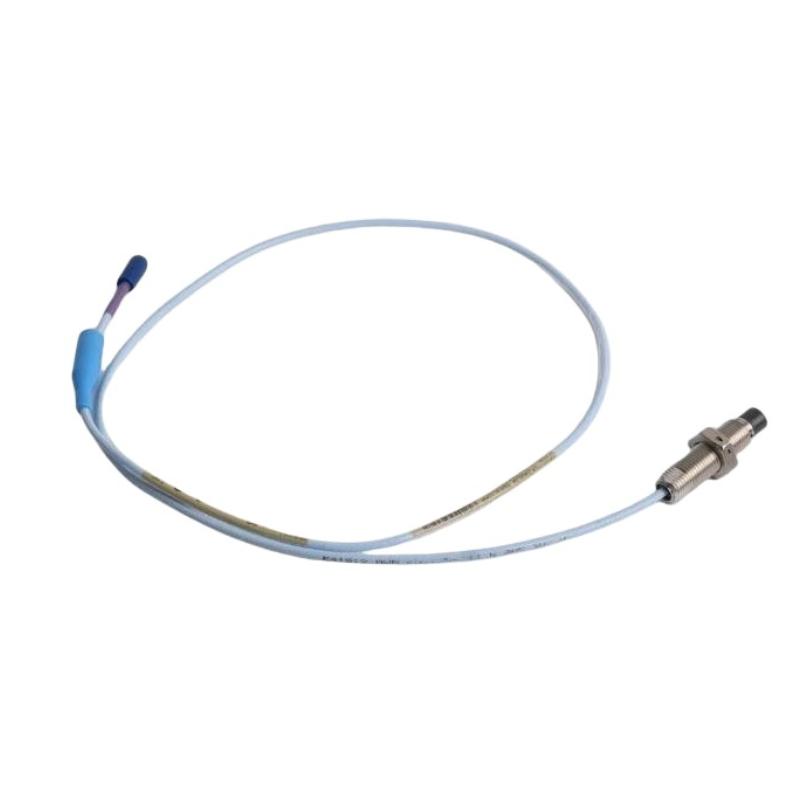

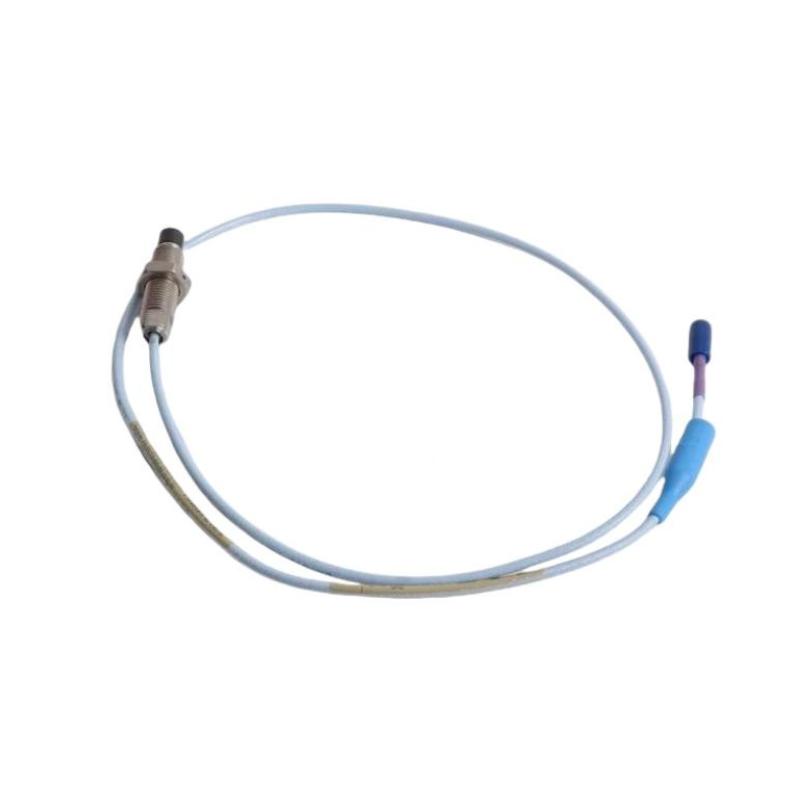

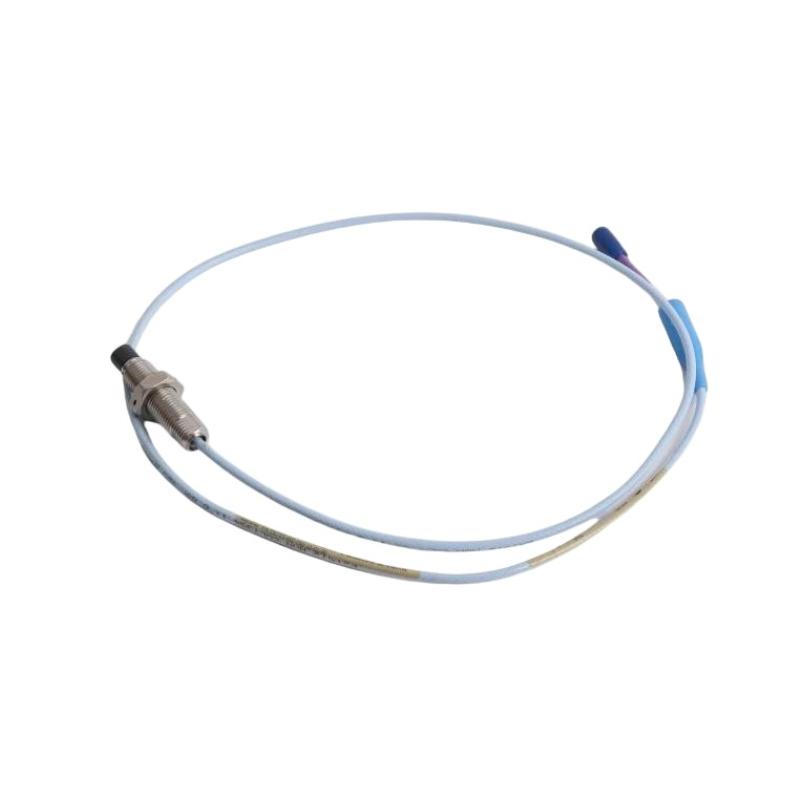

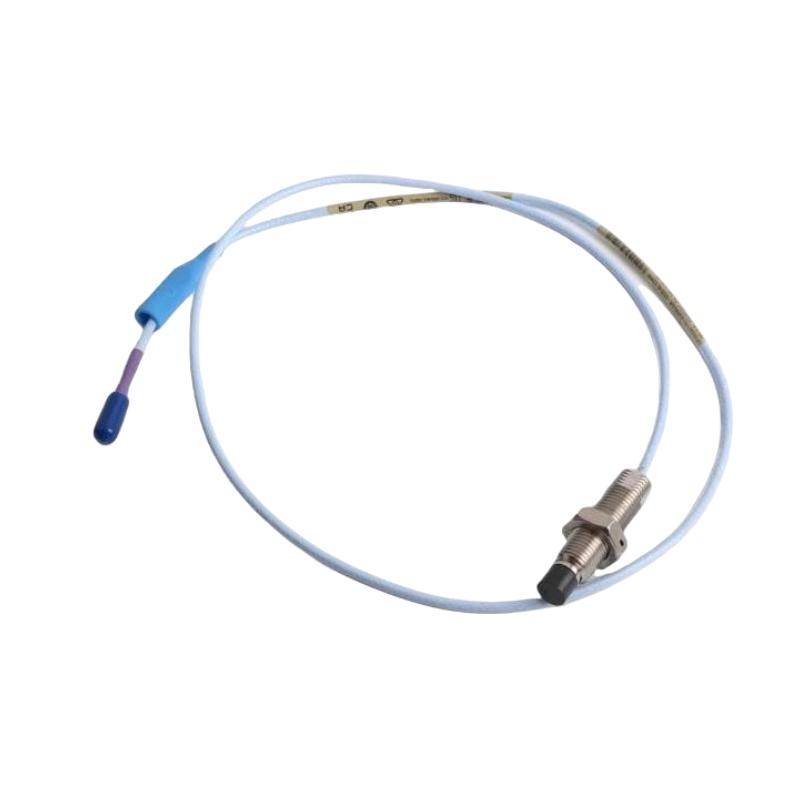

The Bently Nevada 330703-000-040-10-11-00 is a 3300 XL 11 mm Proximity Probe engineered for high-precision, non-contact measurement of shaft vibration, shaft position, eccentricity, and mechanical displacement in rotating machinery. It is widely used in turbines, compressors, pumps, generators, and other critical equipment requiring continuous condition monitoring and machinery protection.

As part of the 3300 XL 11 mm Proximity Transducer System, this probe delivers excellent linearity, reliable signal stability, and superior resistance to vibration, moisture, oil, and electromagnetic interference. The 11 connector option features a Miniature ClickLoc connector with FluidLoc cable, providing enhanced sealing performance for harsh industrial environments, while the 00 approval option indicates that no special agency certification is required.

Technical Specifications

Item	Description
Manufacturer	Bently Nevada (Baker Hughes)
Model	330703-000-040-10-11-00
Product Type	3300 XL 11 mm Proximity Probe
Measurement Principle	Eddy Current Technology
System Series	3300 XL 11 mm Proximity Transducer System
Probe Diameter	11 mm
Thread Type	M14 × 1.5
Unthreaded Length	000 – 0 mm
Overall Case Length	040 – 40 mm
Total Cable Length	10 – 1.0 m
Connector Type	11 – Miniature ClickLoc Connector with Connector Protector
Cable Type	FluidLoc Cable
Agency Approval	00 – No Agency Approval Required
Operating Temperature	-52°C to +177°C
Output Signal	3.94 V/mm (100 mV/mil)
Application	Shaft vibration, shaft position, gap measurement, differential expansion

Physical Dimensions

Parameter	Value
Dimensions (L × W × H)	1000 × 11 × 11 mm (overall assembly including cable)
Weight	Approx. 0.20 kg

Recommended Related Models

Bently Nevada 330701 Series 11 mm Proximity Probe
Bently Nevada 330702 Series 11 mm Proximity Probe
Bently Nevada 330704 Series 11 mm Proximity Probe
Bently Nevada 330180 XL Proximitor Sensor
Bently Nevada 330190 Extension Cable
Bently Nevada 3500/40M Proximitor Monitor
Bently Nevada 3500/42M Vibration Monitor

Popular Bently Nevada Products

3300 XL 8 mm Proximity Probe
3300 XL 11 mm Proximity Probe
330180 XL Proximitor Sensor
330190 Extension Cable
3500 Machinery Protection System
3500/15 Power Supply Module

Typical Applications

The 330703-000-040-10-11-00 is commonly used in:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Reciprocating compressors
Petrochemical plants
Oil & gas facilities
Power generation systems

Product Advantages

High-precision non-contact eddy current measurement
Large 11 mm probe tip for extended linear measurement range
Miniature ClickLoc connector with FluidLoc cable for improved environmental sealing
Excellent resistance to vibration, EMI, oil, and moisture
Wide operating temperature range from -52°C to +177°C
Stable output with excellent linearity and repeatability
Compatible with the complete 3300 XL monitoring platform
Long service life with minimal maintenance
Supports predictive maintenance and machinery protection
Suitable for harsh industrial operating environments

Technical FAQs

1. What is the primary function of the 330703-000-040-10-11-00?

It provides non-contact measurement of shaft vibration, shaft position, gap, and mechanical displacement in rotating equipment.

2. Which monitoring system is it compatible with?

It is designed for the Bently Nevada 3300 XL 11 mm Proximity Transducer System.

3. What does the "040" option indicate?

It specifies an overall probe case length of 40 mm.

4. What does the "10" option represent?

It indicates a 1.0-meter integral cable length.

5. What does the "11" connector option mean?

It specifies a Miniature ClickLoc connector with connector protector and FluidLoc cable for improved environmental sealing.

6. What does the "00" approval option indicate?

It means no special agency approval is required.

7. What are the overall dimensions?

Approximately 1000 × 11 × 11 mm (L × W × H).

8. What is the approximate weight?

Approximately 0.20 kg.

9. What industries commonly use this probe?

Power generation, oil & gas, petrochemical, mining, marine, and other heavy industrial applications.

10. What are the key advantages of this model?

It offers high measurement accuracy, an extended linear measurement range, a FluidLoc-sealed cable with ClickLoc connector, excellent environmental resistance, and full compatibility with the Bently Nevada 3300 XL machinery protection platform.
