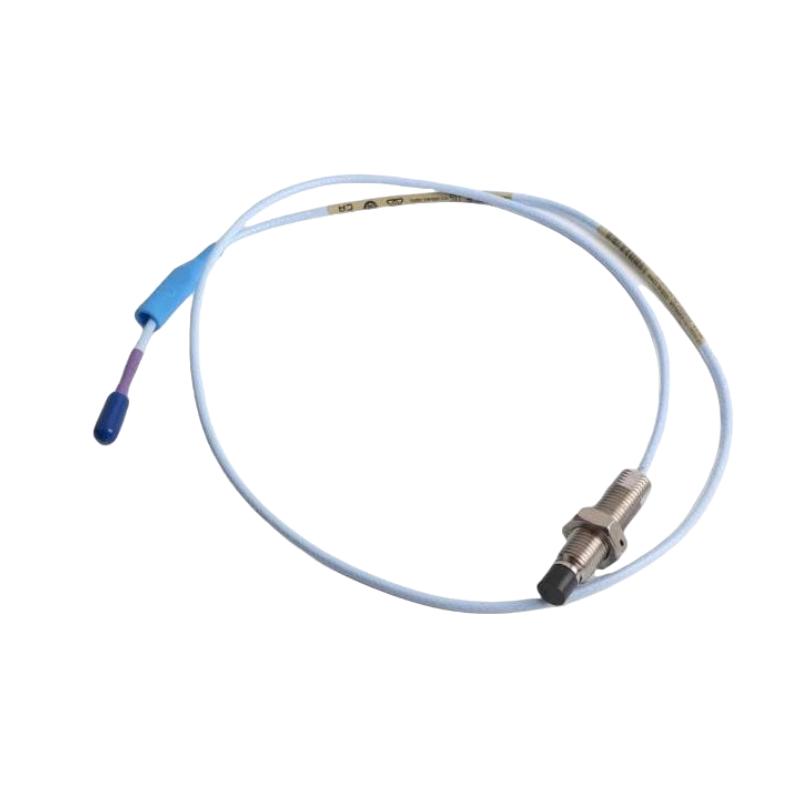

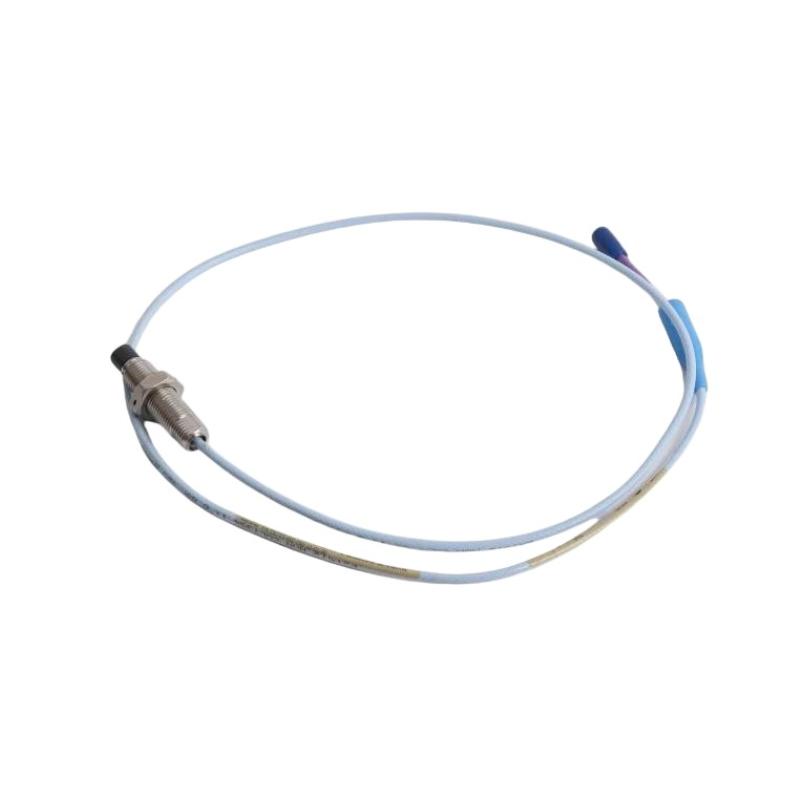

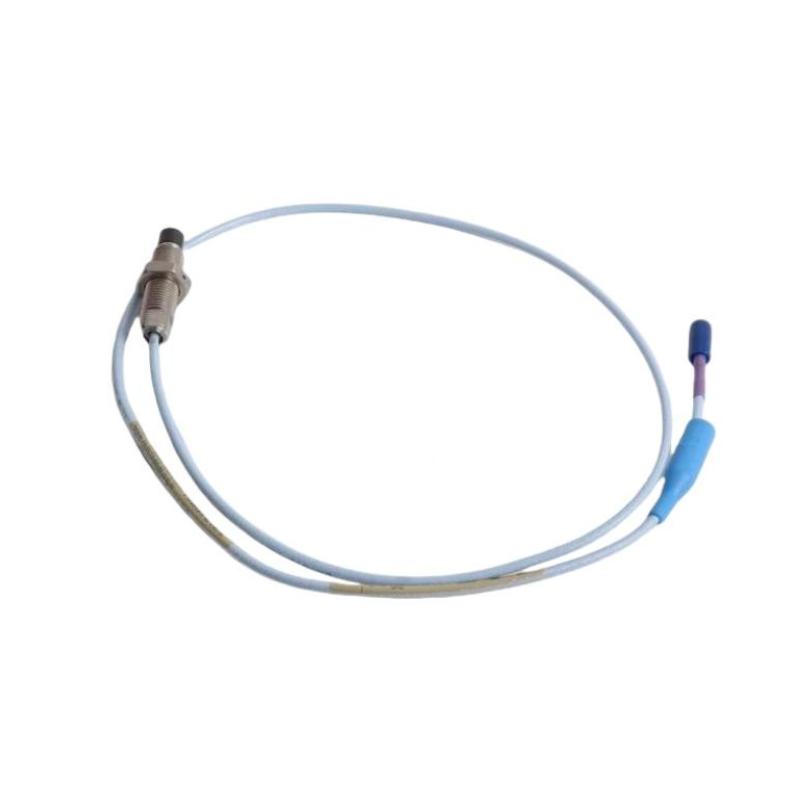

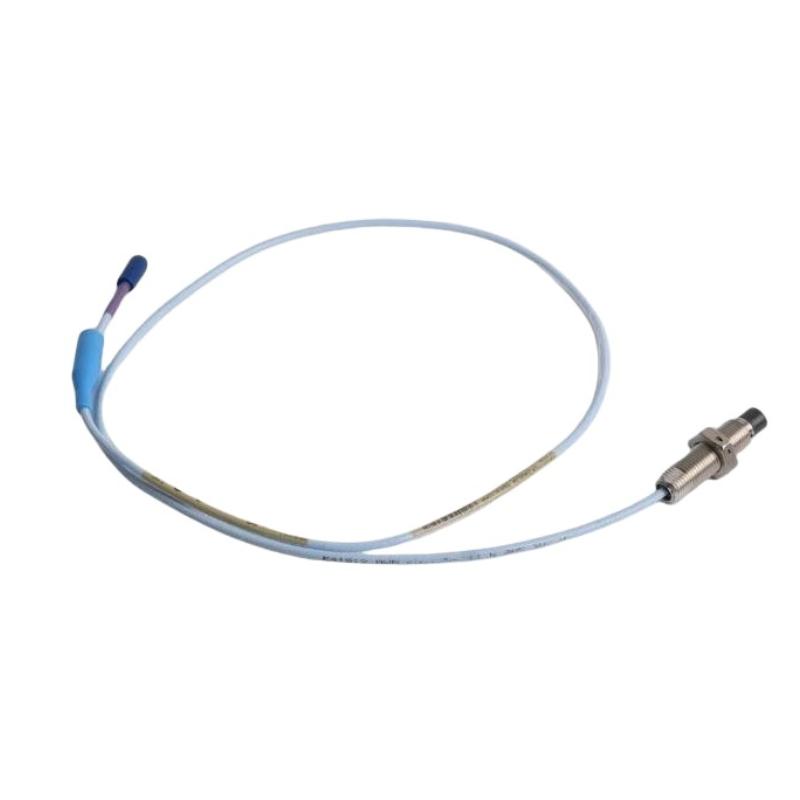

The Bently Nevada 330703-000-040-90-01-00 is a 3300 XL 11 mm proximity probe designed for non-contact measurement of shaft vibration, radial position, eccentricity, and mechanical displacement in rotating machinery. It is widely used in turbines, compressors, pumps, and generators for continuous condition monitoring and protection.
As part of the Bently Nevada 3300 XL 11 mm proximity transducer system, this probe provides excellent linearity, strong EMI resistance, and stable long-term performance in harsh industrial environments. The configuration includes a 5.0 m integral cable, Miniature ClickLoc connector with connector protector, and standard industrial cable construction, suitable for heavy-duty applications.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330703-000-040-90-01-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Unthreaded Length | 000 – 0 mm |
| Overall Case Length | 040 – 40 mm |
| Cable Length Option | 90 – 9.0 m (long integral cable) |
| Connector Type | 01 – Miniature ClickLoc connector with protector |
| Cable Type | Standard industrial shielded cable |
| Agency Approval | 00 – No special certification required |
| Output Signal | Analog displacement signal |
| Application | Shaft vibration, shaft position, gap measurement, eccentricity |
Physical Dimensions
| Parameter | Value |
| Dimensions (L × W × H) | 9000 × 11 × 11 mm (approx. overall assembly with cable) |
| Weight | Approx. 0.30–0.40 kg |
