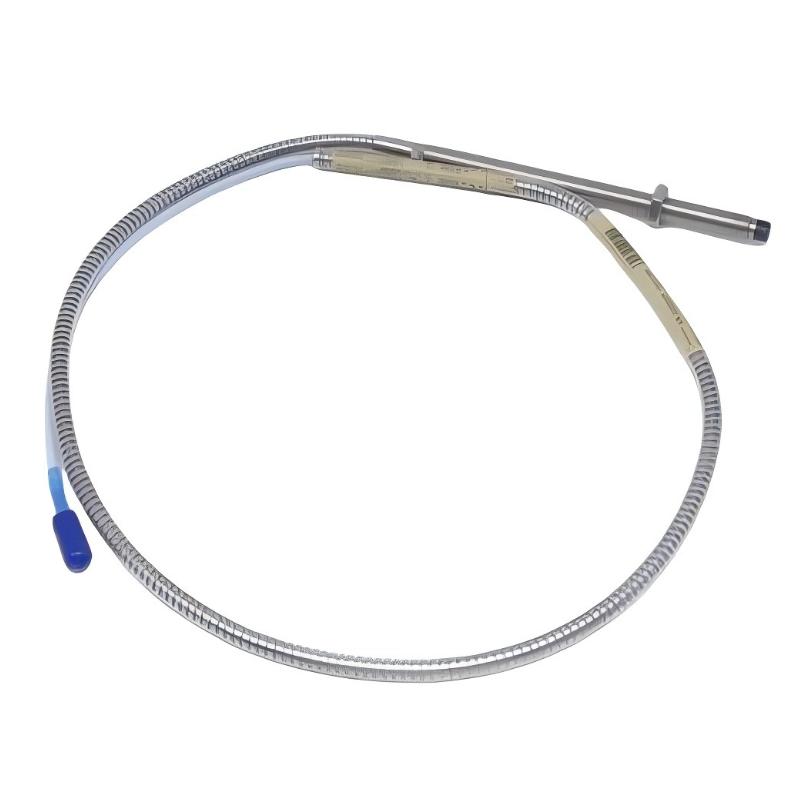

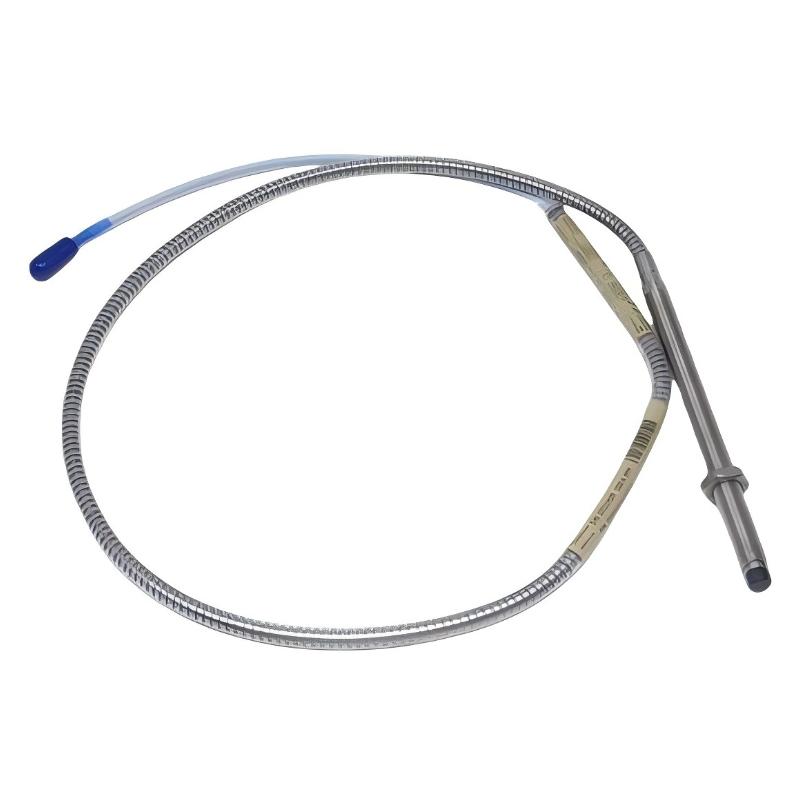

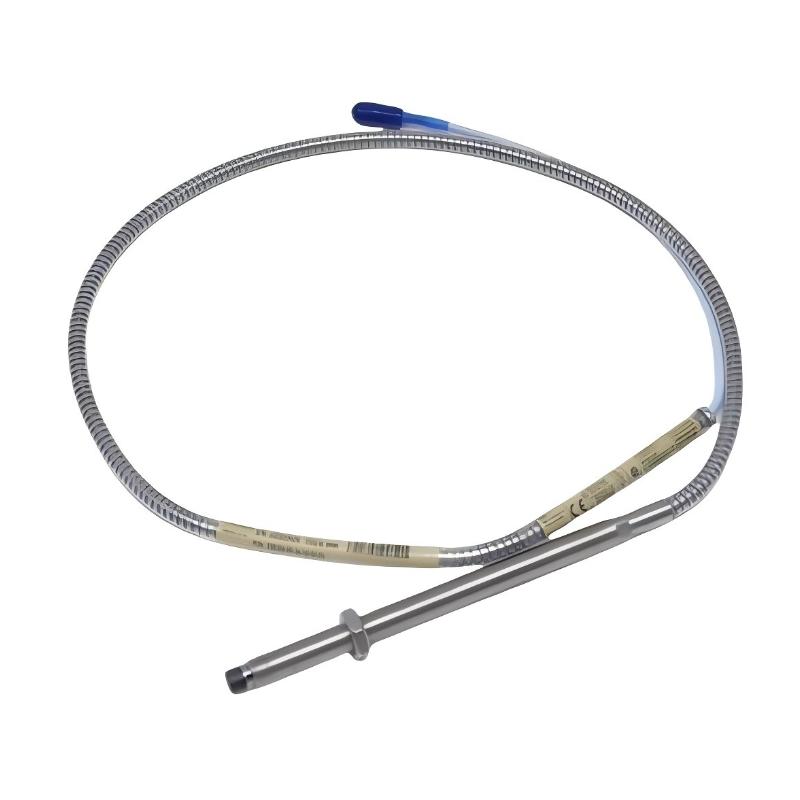

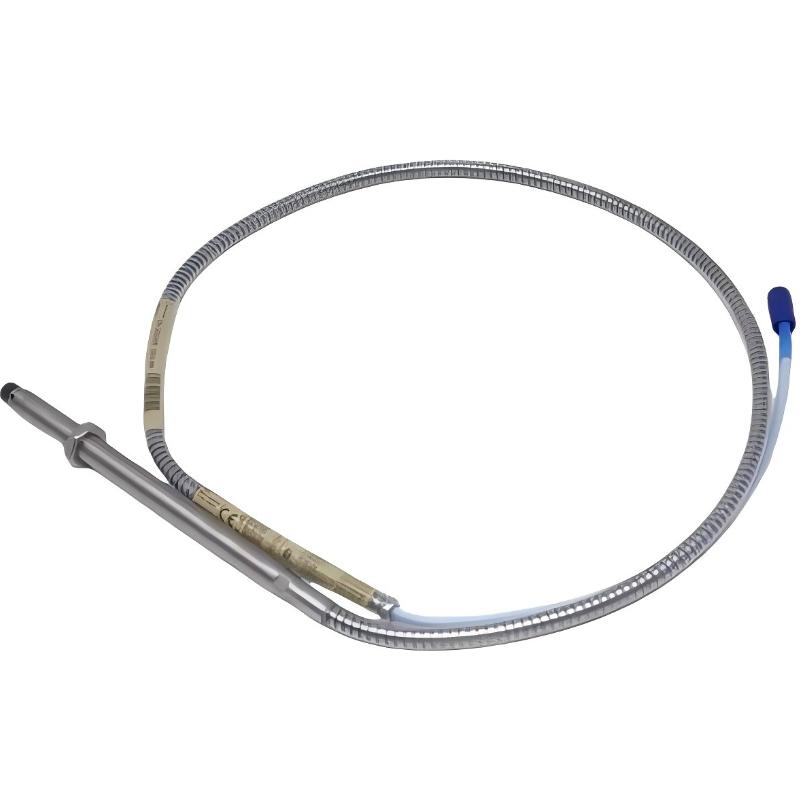

Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:330104-13-20-10-02-00 Product Origin:USA Product Dimensions:Total Length: 1 meter Product Weight:0.323 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for critical rotating machinery monitoring. It is widely used to measure shaft vibration, displacement, and eccentricity in industrial equipment where reliability and accuracy are essential.
Technical Specifications
Parameter
Value
Model
330104-13-20-10-02-00
Series
Bently Nevada 3300 XL
Type
8 mm Eddy Current Proximity Probe
Measurement Principle
Non-contact eddy current
Probe Diameter
8 mm
Total Length
1 meter
Cable Type
Integrated coaxial cable system
Target Material
Conductive ferromagnetic steel
Operating Temperature
-40°C to +150°C
Signal Output
Analog displacement signal (system dependent)
Installation Type
Proximity probe mounting
Weight
0.323 kg
Recommended Related Models
Model
Product Name
330104-02-25-10-01-00
Bently Nevada 3300 XL 8 mm Proximity Probe
330104-13-20-10-01-00
Bently Nevada 3300 XL Probe Variant
330105-02-12-10-01-00
Bently Nevada Proximity Probe System
330130-040-00-00
Bently Nevada Extension Cable Assembly
Popular Related Models
Model
Product Name
330103-00-05-10-02-00
Bently Nevada 3300 XL Sensor System
330104-00-25-10-01-00
Bently Nevada Standard Proximity Probe
330180-50-00
Bently Nevada Proximitor Sensor Module
3300 XL System
Bently Nevada Machinery Protection System
Applications
• Used in turbine supervisory systems for steam, gas, and hydroelectric power generation equipment.
• Applied in compressors, pumps, and industrial rotating machinery for continuous shaft vibration and displacement monitoring.
• Suitable for oil & gas and petrochemical plants requiring high-reliability machinery protection.
• Integrated into predictive maintenance systems for detecting misalignment, shaft eccentricity, and bearing wear.
• Used in critical rotating assets where non-contact measurement accuracy is essential for safe operation.
Key Advantages
• High-precision eddy current technology ensures stable and repeatable measurement performance.
• Non-contact design eliminates mechanical wear and extends operational lifespan.
• Excellent signal stability under high vibration and harsh industrial conditions.
• Fully compatible with Bently Nevada 3300 XL monitoring and protection systems.
• Rugged construction supports long-term operation in demanding environments.
Technical FAQs
Q1: What is the working principle of this probe?
It uses eddy current technology to measure the distance between the probe tip and a conductive metallic surface.
Q2: What systems is it compatible with?
It is designed for use with Bently Nevada 3300 XL proximity monitoring systems.
Q3: Does it require physical contact with the shaft?
No, it is a non-contact measurement probe.
Q4: What type of signal does it generate?
It outputs an analog signal proportional to shaft displacement.
Q5: What is it typically used for?
It is used for vibration, axial position, and eccentricity monitoring in rotating machinery.
Q6: Can it operate in harsh environments?
Yes, it is designed for high-temperature and high-vibration industrial conditions.
Q7: Which industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy industry sectors.
Q8: Does it support continuous monitoring?
Yes, it is suitable for 24/7 machinery protection systems.
Q9: Is calibration required?
Yes, system calibration is required during installation with compatible modules.
Q10: What is the main benefit of this probe?
It provides highly reliable non-contact measurement for critical rotating equipment protection.
