Brand:Schneider PLC Item No.:ATS130N2D45LT Product Origin:France Product Dimensions:166 × 55 × 165 mm Product Weight:1.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

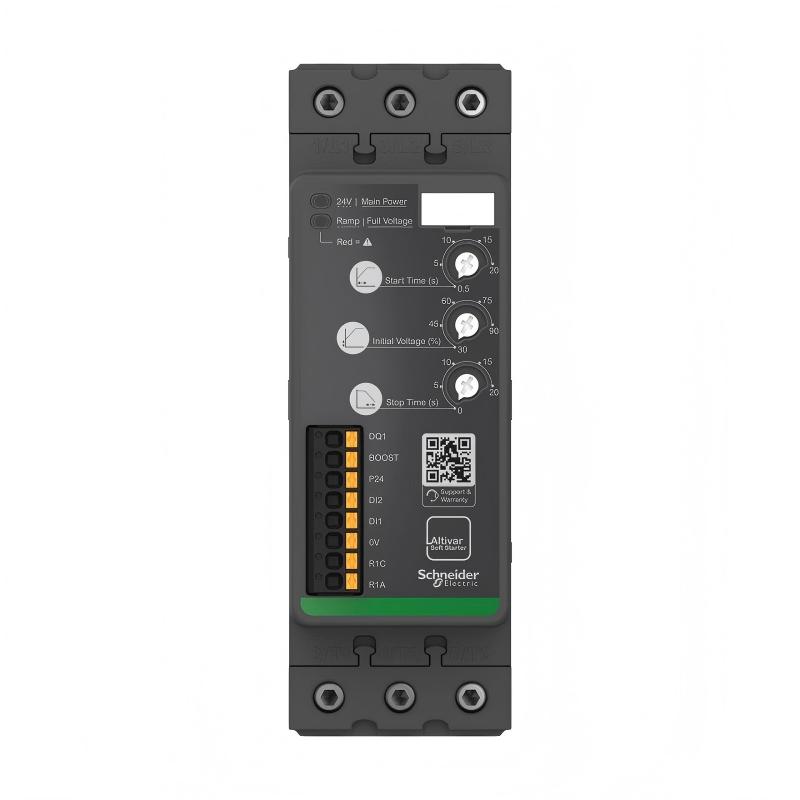

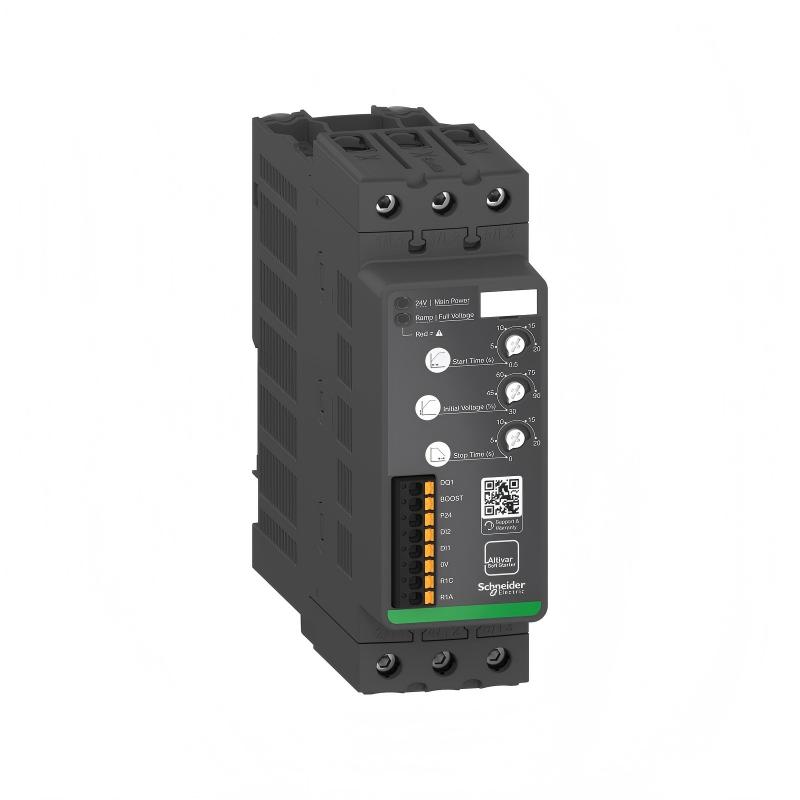

The Schneider ATS130N2D45LT is a compact soft starter designed for industrial motor starting applications. It provides controlled voltage ramp-up during motor startup, helping reduce stress on both electrical supply systems and mechanical equipment.
This model is intended for standard industrial environments where reliable motor starting is required without complex control functionality. Its compact size makes it suitable for installation in space-constrained control panels.
Technical Specifications
Item
Specification
Product Type
Soft Starter
Model
ATS130N2D45LT
Rated Current
45 A
Voltage
200–480 V AC
Control Voltage
24 V DC
Frequency
50–60 Hz
Dimensions (H × W × D)
166 × 55 × 165 mm
Weight
1.3 kg（2.87 lb）
Mounting
Panel installation
Recommended Related Models
ATS130N2D25LT
ATS130N2D32LT
Popular Related Models
ATS130N2D45LT
ATS130 series soft starter range
Applications
The ATS130N2D45LT soft starter is used in industrial motor starting systems where controlled acceleration is required to reduce mechanical stress on equipment.
Typical applications include:
Pumping systems for water transfer and circulation
HVAC ventilation and air handling equipment
Compressor motor start control
Conveyor and light industrial transport systems
General three-phase motor starting applications
It is applied in systems where direct-on-line starting is not preferred due to mechanical or electrical impact considerations.
Advantages
Controlled motor start to reduce mechanical stress
Helps reduce electrical inrush during motor startup
Compact housing suitable for control cabinet installation
Designed for basic industrial motor starting applications
Suitable for standard pump and fan systems
Simple integration into industrial control panels
Technical FAQs (10 Questions)
Q1: Is this a variable speed drive (VFD)?
A: No, it is a soft starter used only for motor starting control.
Q2: Does it control motor speed during operation?
A: No, it only controls the start and stop phase.
Q3: What is the main function of this device?
A: To provide controlled motor acceleration.
Q4: Can it be used with pump systems?
A: Yes, it is commonly used in pump applications.
Q5: Is it suitable for HVAC systems?
A: Yes, it is used in ventilation and air handling systems.
Q6: Does it require external bypass contactors?
A: It uses built-in bypass operation after start-up.
Q7: Is programming required for installation?
A: Configuration is typically basic for commissioning.
Q8: Can it reduce mechanical shock?
A: Yes, it provides gradual voltage ramp during motor start.
Q9: Is it suitable for continuous motor control?
A: No, it is not designed for continuous speed regulation.
Q10: Where is it typically installed?
A: Inside industrial electrical control cabinets.
