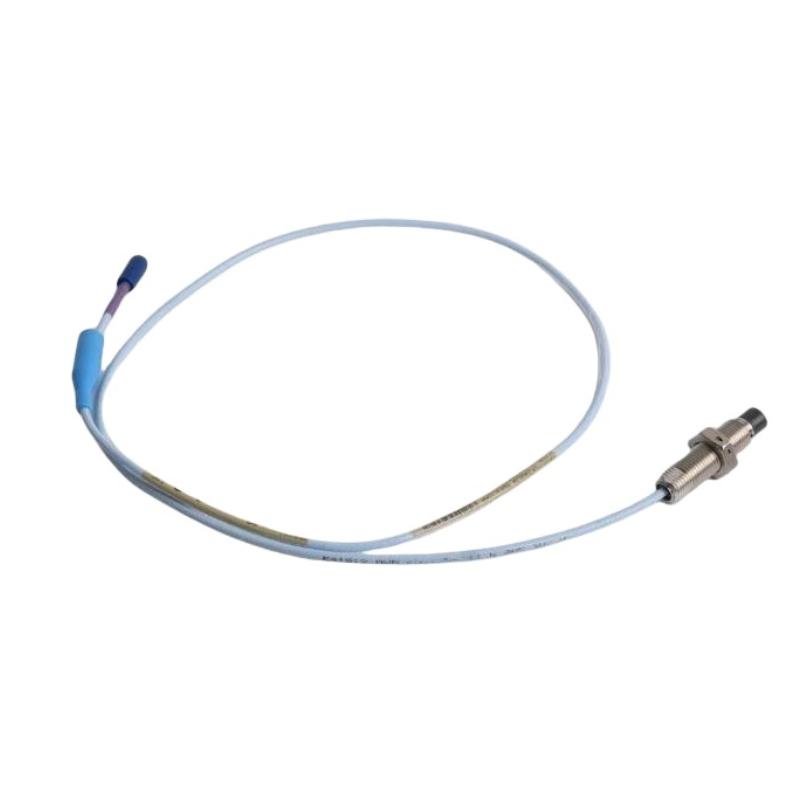

The Bently Nevada 330703-000-060-50-12-00 Proximity Probe is a high-precision 11 mm eddy current displacement sensor designed for continuous monitoring of shaft vibration, radial position, and mechanical clearance in rotating machinery.

As part of the Bently Nevada 3300 XL proximity transducer system, this model is engineered for demanding industrial environments where signal stability, EMI resistance, and long-term reliability are essential. The 060 configuration provides a 60 mm probe case length, making it suitable for deeper installation positions and mechanically constrained assemblies.

The 50-12-00 configuration typically represents an extended system cable option combined with a Miniature ClickLoc connector and standard agency approval, making it a flexible choice for large rotating equipment installations such as turbines and compressors.

Technical Specifications

Parameter	Specification
Brand	Bently Nevada
Model	330703-000-060-50-12-00
Product Type	11 mm Proximity Probe
Measurement Technology	Eddy current non-contact displacement sensing
System Series	3300 XL Proximity Transducer System
Probe Diameter	11 mm
Case Length	60 mm
Integrated Cable Length	5.0 m (system configuration dependent)
Connector Type	12 – Miniature ClickLoc connector (FluidLoc-style cable)
Cable Type	Industrial shielded / FluidLoc cable
Output Signal	Analog displacement signal (100 mV/mil class)
Mounting Thread	M14 × 1.5
Operating Temperature	-52°C to +177°C
Certification	00 – No special agency approval required

Dimensions & Weight

Item	Value
Overall Dimensions (L × W × H)	5000 × 11 × 11 mm
Weight	Approx. 0.10 – 0.35 kg

Recommended Related Models

Bently Nevada 330701 8 mm Proximity Probe
Bently Nevada 330702 XL 11 mm Probe Series
Bently Nevada 330704 High-Temperature Probe Series
Bently Nevada 330180 Proximitor Sensor
Bently Nevada 330190 Extension Cable System

Popular Bently Nevada Models

3300 XL 8 mm Proximity Probe Series
3300 XL 11 mm Proximity Probe Family
330180 Monitoring Modules
330190 Cable & Connector Systems
3500 Machinery Protection System Modules

Applications

Steam turbine vibration monitoring
Gas turbine shaft displacement measurement
Centrifugal compressor condition monitoring
Pump bearing diagnostics and protection
Generator rotor stability analysis
Petrochemical rotating machinery systems
Oil & gas production equipment monitoring
Heavy industrial predictive maintenance systems

Advantages

High-accuracy eddy current measurement with long-term stability
Extended cable configuration suitable for large installations
Strong EMI and vibration resistance in harsh environments
60 mm probe body improves mechanical installation flexibility
Compact 11 mm sensing design for precise displacement monitoring
Reliable ClickLoc connector ensures secure field wiring
Fully compatible with Bently Nevada 3300 XL systems
Designed for continuous 24/7 industrial operation
Excellent long-term signal repeatability and drift control
Proven reliability in global heavy-duty industrial applications

Technical FAQs

1. What is the main function of this probe?

It measures shaft vibration and displacement without physical contact using eddy current technology.

2. What system is it used with?

It belongs to the Bently Nevada 3300 XL proximity transducer system.

3. What does “060” represent?

It indicates a 60 mm probe case length.

4. What does “50” represent?

It typically refers to an extended system cable configuration (approx. 5.0 m depending on system build).

5. What does “12” mean?

It refers to a Miniature ClickLoc connector with FluidLoc-style industrial cable design.

6. What does “00” mean?

It indicates no special agency approval requirement.

7. What industries use this probe?

Power generation, oil & gas, petrochemical, marine, and heavy industry sectors.

8. Can it operate in harsh environments?

Yes, it is designed for high vibration, extreme temperatures, and EMI-heavy conditions.

9. What is the key advantage?

It provides stable long-distance vibration monitoring for large industrial machinery installations.

10. Why is it widely used?

Because it combines extended cable capability, rugged design, and strong compatibility with rotating machinery monitoring systems.
