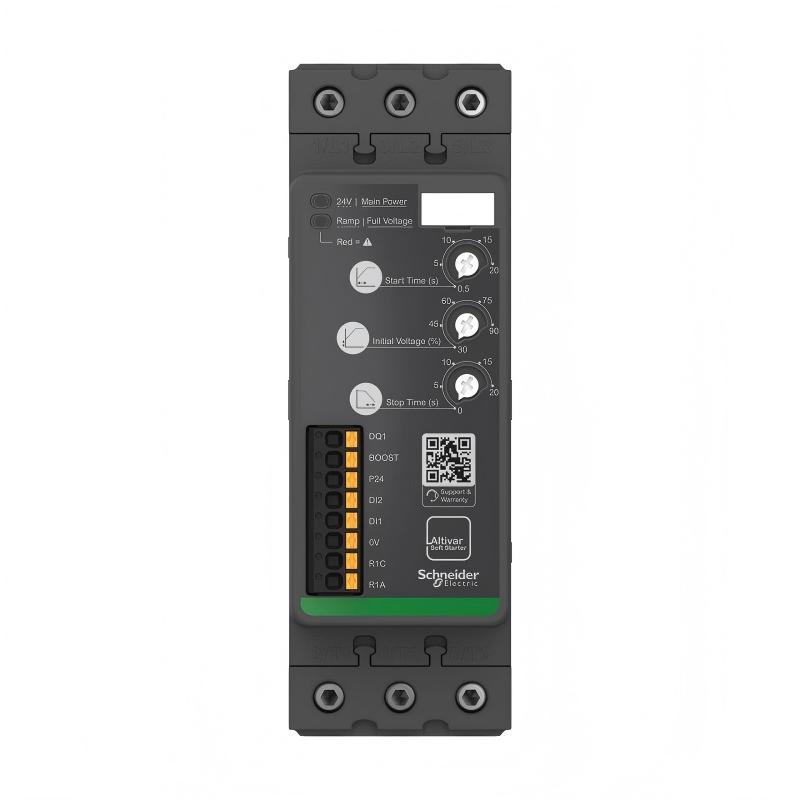

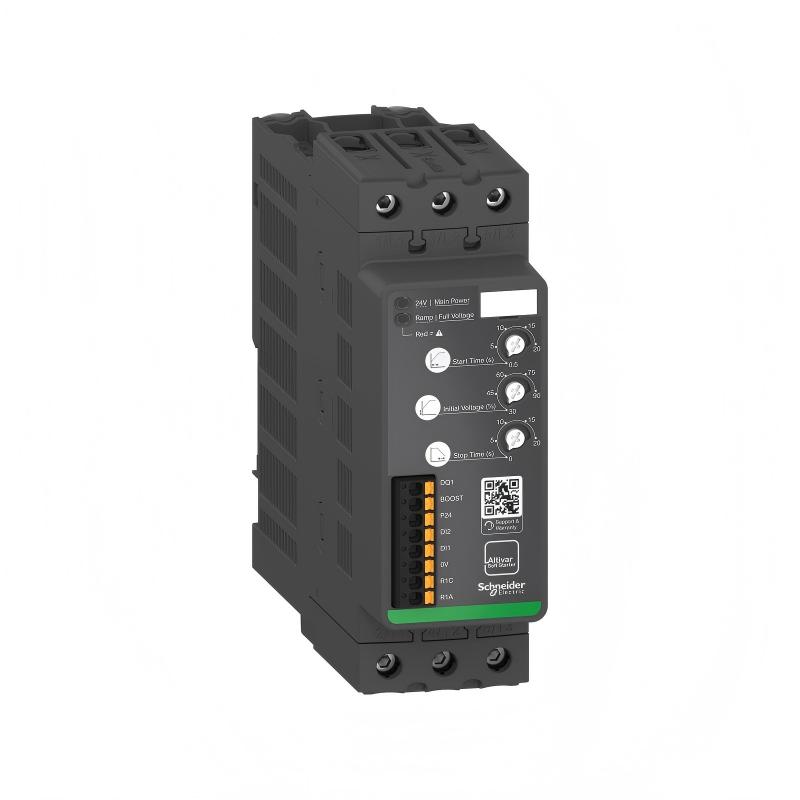

Schneider ATS130N2D65LT Soft Starter

Applications

• Three-phase induction motor starting control
• Pump drive systems
• Fan and ventilation motor control systems
• Conveyor motor starting circuits
• Compressor motor starting applications
• Motor control in industrial electrical cabinets

Advantages

• Reduces starting current compared with direct-on-line starting
• Controlled voltage ramp during motor start and stop
• Internal bypass contactor used after start sequence
• Designed for panel installation
• Adjustable acceleration and deceleration parameters
• Compatible with standard industrial control circuits

Technical FAQs (10 Questions)

Q1: What type of motor is compatible?
A1: Three-phase induction motors.

Q2: Is it suitable for pump applications?
A2: Yes, pump control is a standard application.

Q3: Does it support communication functions?
A3: Communication capability depends on system configuration.

Q4: Is external motor protection required?
A4: External protection devices are normally used in system design.

Q5: What is the starting method?
A5: Voltage ramp starting is used to control motor acceleration.

Q6: What happens after startup?
A6: The internal bypass contactor operates after motor reaches steady state.

Q7: Can ramp settings be adjusted?
A7: Yes, acceleration and deceleration settings are adjustable.

Q8: Is it suitable for repeated starts?
A8: Yes, within rated operating conditions defined by the system design.

Q9: Does it require forced cooling?
A9: Cooling depends on cabinet ventilation conditions.

Q10: Is maintenance required?
A10: No routine maintenance is defined for normal operation.
