Brand:Schneider PLC Item No.:ATS22C11Q Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

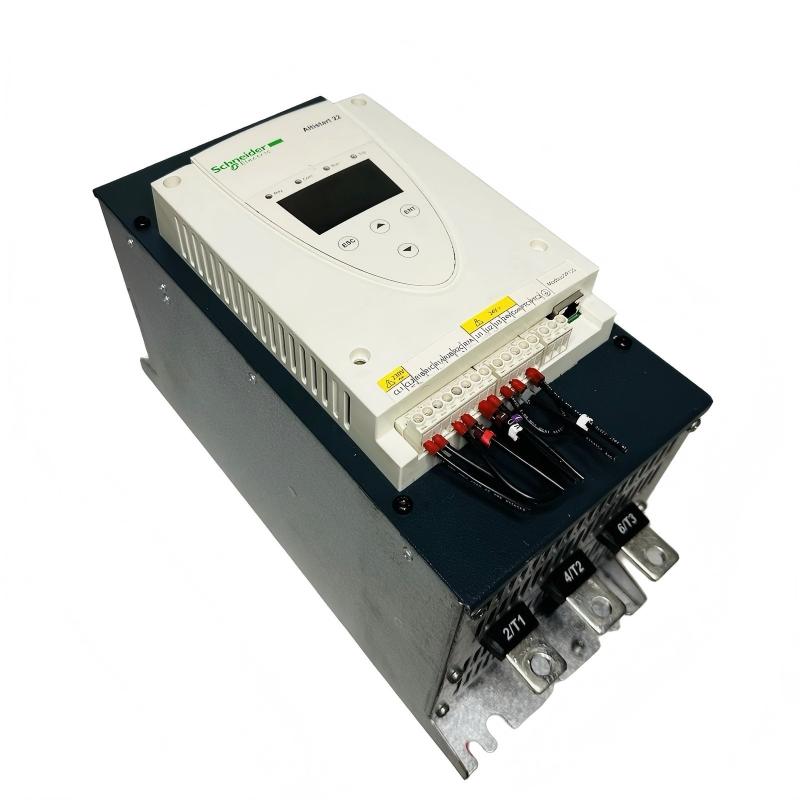

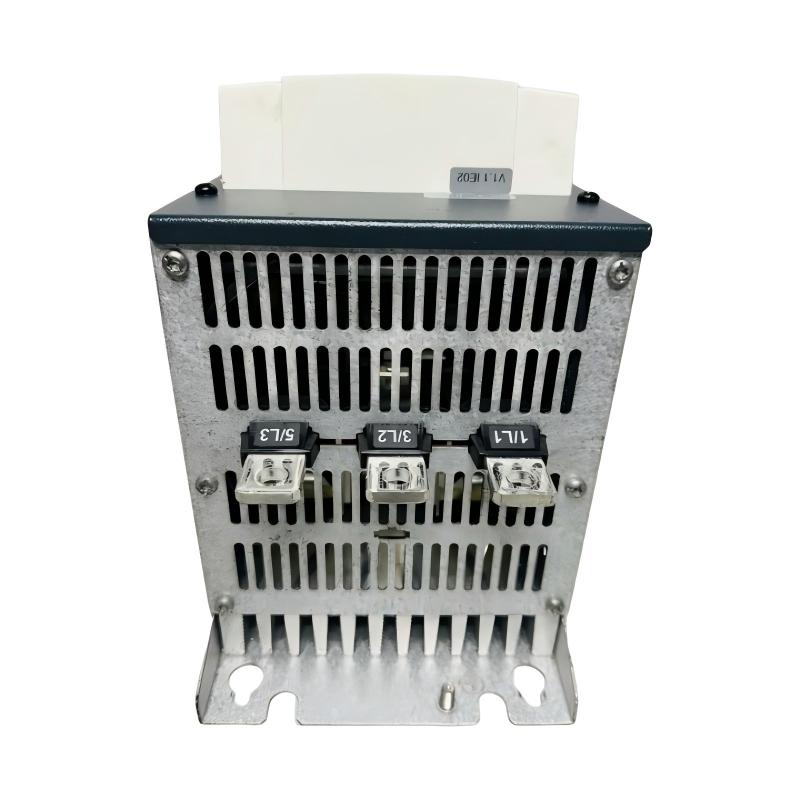

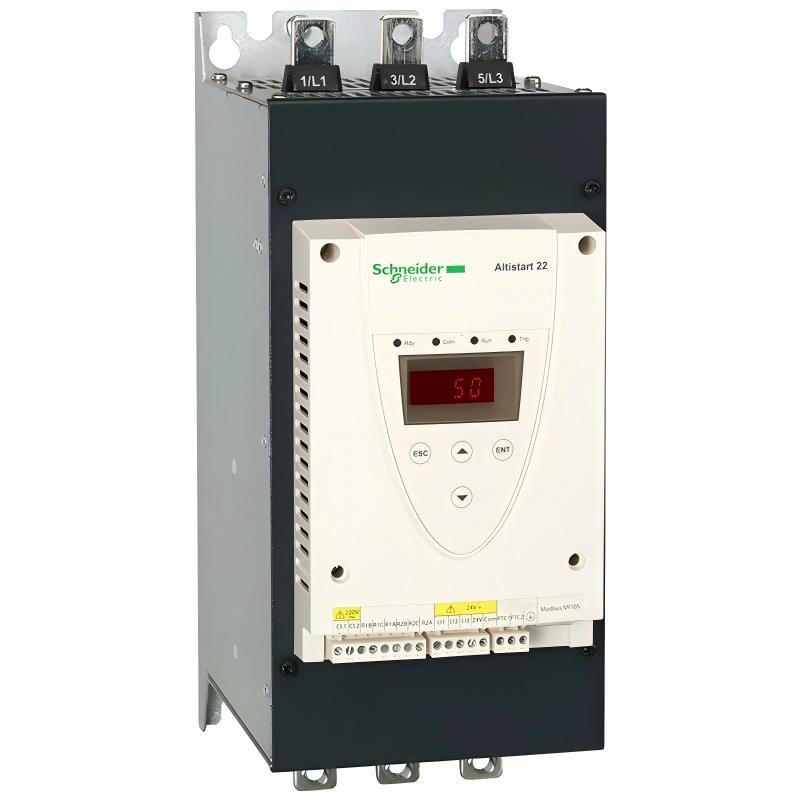

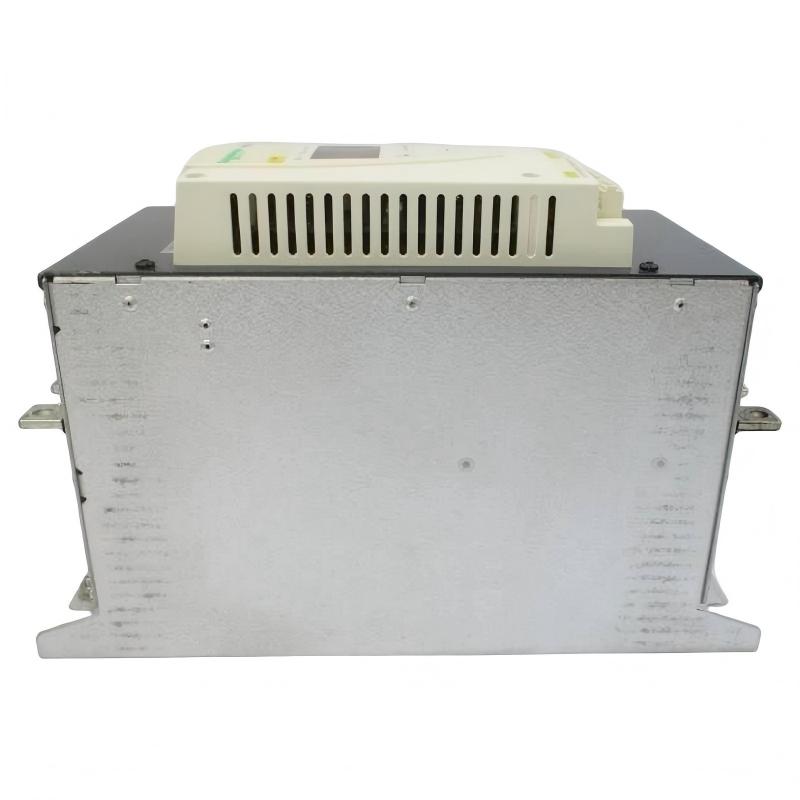

The ATS22C11Q from Schneider Electric’s Altistart 22 series is a high-performance soft starter engineered for demanding industrial environments. It ensures smooth motor acceleration by gradually increasing voltage, reducing inrush current and minimizing mechanical stress on driven equipment.
Its robust construction and proven SCR-based control technology make it a reliable choice for industries requiring stable motor control under heavy load conditions. With integrated protection and bypass functionality, it delivers both efficiency and durability in long-term operation.
ATS22D17Q – Lower power variant for medium industrial loads
ATS22D32Q – Higher capacity model for heavy-duty motor systems
ATS130 Series – Compact next-generation soft starter range
ATS480 Series – Advanced motor control platform with expanded diagnostics
ATS01N Series – Entry-level soft starter for cost-sensitive applications
Popular Related Models
ATS22C11Q – Standard 110A industrial soft starter (this model)
ATS22D17Q – Common in HVAC and pumping installations
ATS22D32Q – Frequently used in conveyor and compressor systems
ATS480C11Q – Popular upgraded alternative in modern automation panels
Applications
The Schneider ATS22C11Q Soft Starter Module is designed for medium-to-heavy industrial motor control applications where smooth acceleration, controlled torque, and reduced electrical stress are required. It is widely used in systems that demand high reliability under continuous or semi-continuous operation.
Typical applications include:
Heavy-duty pumping systems (water, wastewater, process fluids)
Industrial HVAC chillers and large ventilation systems
High-power compressor stations
Conveyor and bulk material handling systems
Mining, wood processing, and industrial machinery
General three-phase motor starting systems in automation plants
Its torque-controlled ramping behavior reduces mechanical shock and significantly improves system lifespan in high-load environments.
Advantages
Advanced torque control reduces mechanical and electrical stress
Suitable for high-power motor loads up to industrial scale
Integrated bypass function improves energy efficiency and heat management
Stable soft start and soft stop performance for critical processes
High robustness for demanding industrial environments
Compatible with modern PLC-based automation systems
Built-in motor protection enhances operational safety
Reduces downtime and maintenance cost in continuous operations
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with ATS22C11Q?
It is designed for three-phase asynchronous induction motors.
Q2: Can it handle high-power industrial loads?
Yes, it is suitable for medium to heavy-duty motor applications up to 55 kW (depending on voltage conditions).
Q3: Does it support bypass operation?
Yes, it includes an integrated internal bypass contactor.
Q4: What communication interface is available?
It supports Modbus communication for industrial control integration.
Q5: Is it suitable for pump systems?
Yes, it is widely used in pumping applications to reduce water hammer effects.
Q6: Can it be used in continuous-duty environments?
Yes, it is designed for industrial continuous operation.
Q7: Does it support PLC integration?
Yes, it integrates easily into PLC-controlled automation systems.
Q8: Does it include motor protection features?
Yes, including overload, phase loss, and thermal protection functions.
Q9: Is commissioning complex?
No, setup is relatively simple with standard parameter configuration.
Q10: Can it be used in retrofit projects?
Yes, it is commonly used for upgrading older motor control systems.
