Brand:Schneider PLC Item No.:ATS22C11S6U Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

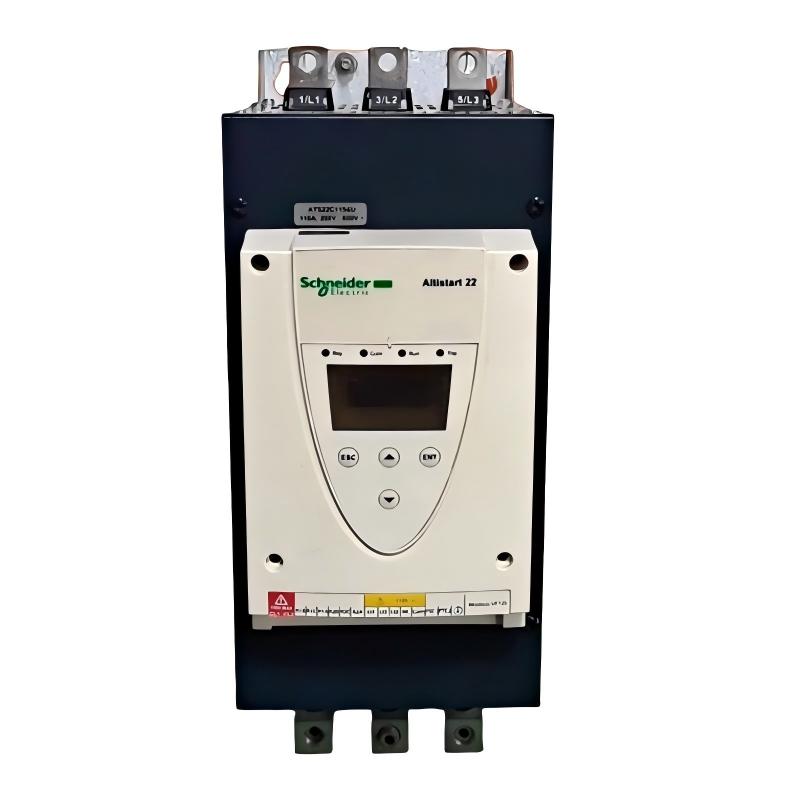

The ATS22C11S6U belongs to Schneider Electric’s Altistart 22 soft starter family, designed to deliver controlled motor starting and stopping for three-phase systems. It uses voltage ramp technology to reduce inrush current and limit mechanical stress on driven equipment.
Compared with standard across-the-line starting methods, this model significantly improves operational smoothness and reduces wear on mechanical components. Its industrial-grade construction ensures stable performance in harsh operating environments, making it a reliable choice for mission-critical applications.
ATS22C11Q – Standard 110A Altistart 22 variant for general applications
ATS22D17Q – Lower current model for medium industrial loads
ATS22D32Q – Higher capacity model for heavy-duty motor systems
ATS130 Series – Compact next-generation soft starter range
ATS480 Series – Advanced motor control platform with diagnostics upgrade
Popular Related Models
ATS22C11S6U – Standard 110A industrial soft starter (this model)
ATS22C11Q – Widely used HVAC and pump control version
ATS22D17Q – Common in conveyor and compressor applications
ATS480C11Q – Popular modern replacement in upgraded automation systems
Applications
The Schneider ATS22C11S6U Soft Starter Module is engineered for industrial motor control applications requiring controlled acceleration, reduced inrush current, and improved mechanical protection. It is widely adopted in medium to heavy-duty automation systems where operational stability and long equipment life are critical.
Typical applications include:
Industrial pumping systems (water, wastewater, process fluids)
Large HVAC air handling and ventilation systems
Compressor stations and refrigeration systems
Conveyor and bulk material handling systems
Mining, cement, and heavy industrial machinery
General three-phase induction motor control in automation plants
Its torque-controlled ramping improves system reliability by reducing mechanical shock and electrical stress during startup cycles.
Advantages
Smooth torque control reduces mechanical wear and system stress
High current capacity suitable for industrial-scale motors
Integrated bypass contactor improves energy efficiency and thermal performance
Robust design for demanding industrial environments
Compatible with PLC and industrial automation systems
Built-in motor protection enhances operational safety
Stable performance under continuous duty conditions
Reduces downtime and maintenance requirements
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with ATS22C11S6U?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
It is typically rated at around 110 A depending on configuration.
Q3: Does it include an internal bypass?
Yes, it has an integrated internal bypass contactor.
Q4: What is the supply voltage range?
It supports 208–600 V AC industrial power systems.
Q5: Can it be used with PLC systems?
Yes, it integrates easily with PLC-based automation architectures.
Q6: Does it support Modbus communication?
Yes, Modbus RTU is commonly supported for industrial integration.
Q7: Is it suitable for pump applications?
Yes, it is widely used to reduce water hammer and hydraulic shock.
Q8: Does it require complex commissioning?
No, setup is relatively simple with standard parameter configuration.
Q9: Can it operate in continuous-duty environments?
Yes, it is designed for continuous industrial operation.
Q10: Is it suitable for retrofit projects?
Yes, it is commonly used in system upgrades and replacements.
