Brand:Schneider PLC Item No.:ATS22C14Q Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

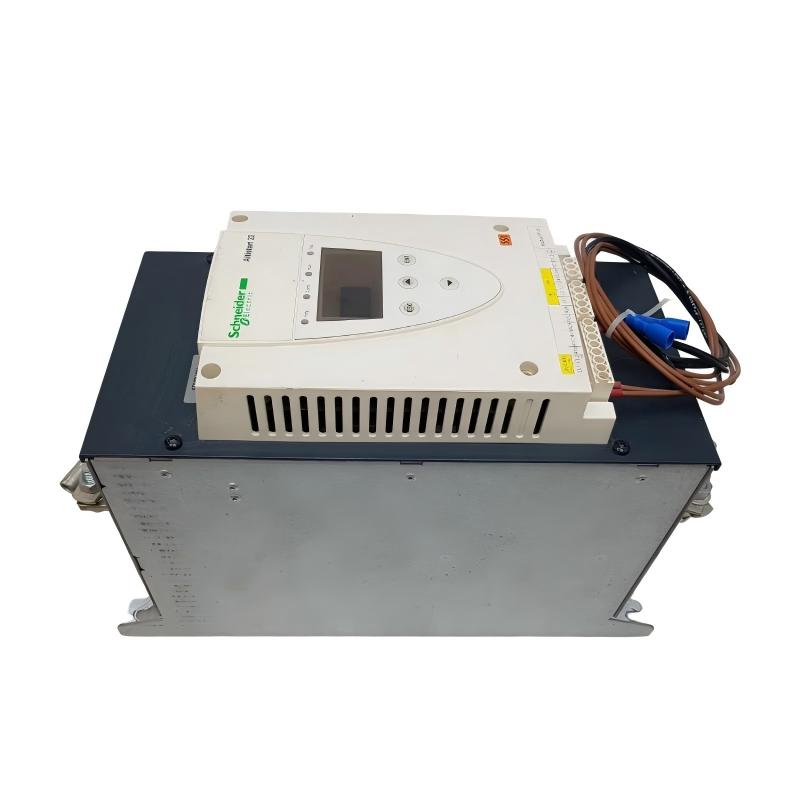

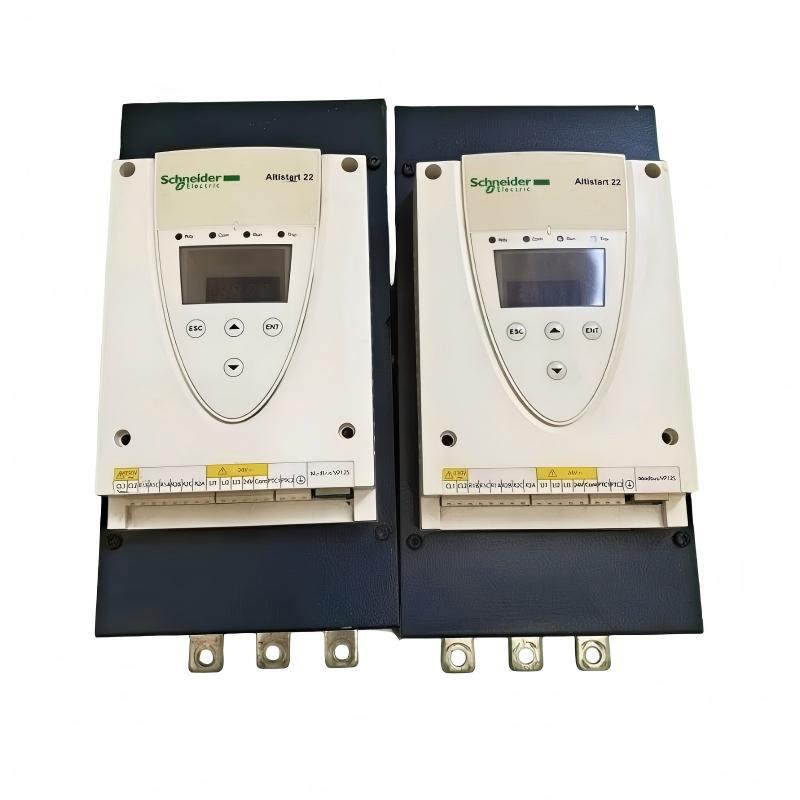

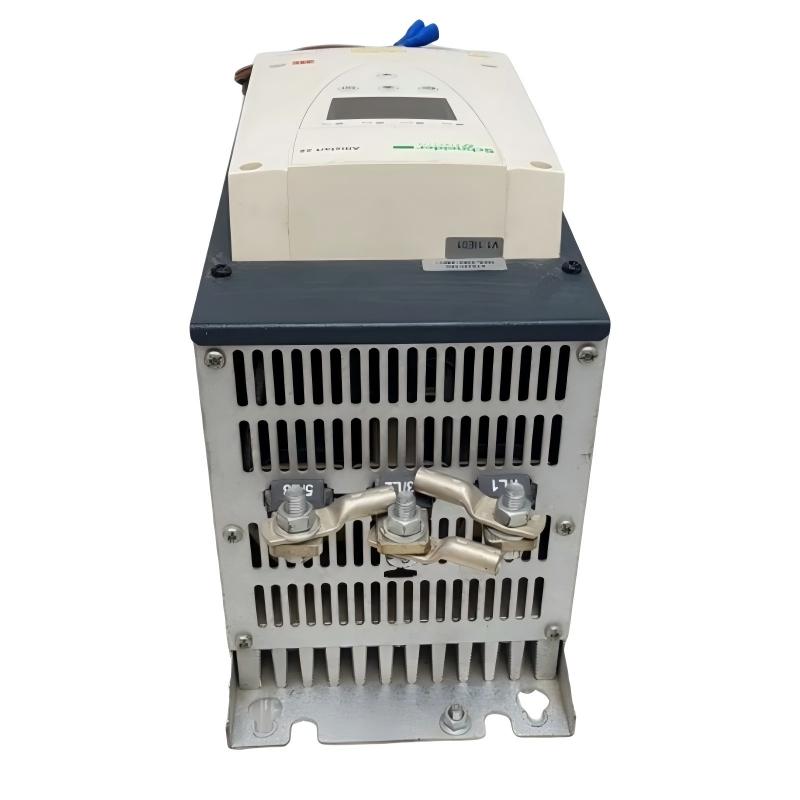

The ATS22C14Q belongs to Schneider Electric’s Altistart 22 series, designed for controlled starting and stopping of three-phase asynchronous motors. It uses voltage ramp technology to limit inrush current and reduce mechanical stress during motor startup.
Engineered for industrial environments, it combines SCR-based power control with integrated bypass functionality to deliver efficient thermal performance and stable long-term operation. Its robust design makes it suitable for critical applications where reliability and uptime are essential.
ATS22C11Q – Lower current 110A variant for medium industrial loads
ATS22D17Q – Smaller capacity model for standard pump systems
ATS22D32Q – Higher power variant for heavy-duty motor applications
ATS130 Series – Compact next-generation soft starter family
ATS480 Series – Advanced motor control platform with extended diagnostics
Popular Related Models
ATS22C14Q – Standard 140A industrial soft starter (this model)
ATS22C11Q – Widely used in HVAC and pumping installations
ATS22D17Q – Common in conveyor and compressor systems
ATS480C14Q – Popular upgraded alternative in modern automation panels
Applications
The Schneider ATS22C14Q Soft Starter Module is designed for medium-to-heavy industrial motor control applications where controlled acceleration, reduced electrical stress, and improved mechanical protection are required. It is widely used in demanding automation environments with continuous or high-load operation.
Typical applications include:
Industrial pumping stations (water supply, wastewater, process fluids)
Large HVAC systems and air handling units
Compressor systems in industrial plants
Conveyor and bulk material handling systems
Mining, cement, and heavy-duty processing machinery
General three-phase induction motor control systems
Its torque-controlled ramping reduces mechanical shock, helping extend motor and drivetrain lifespan while improving system stability.
Advantages
High-performance soft-start control reduces inrush current and grid impact
Suitable for heavy industrial loads up to 75 kW class systems
Integrated bypass contactor improves thermal efficiency and energy savings
