Brand:Schneider PLC Item No.:ATS22C14S6 Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

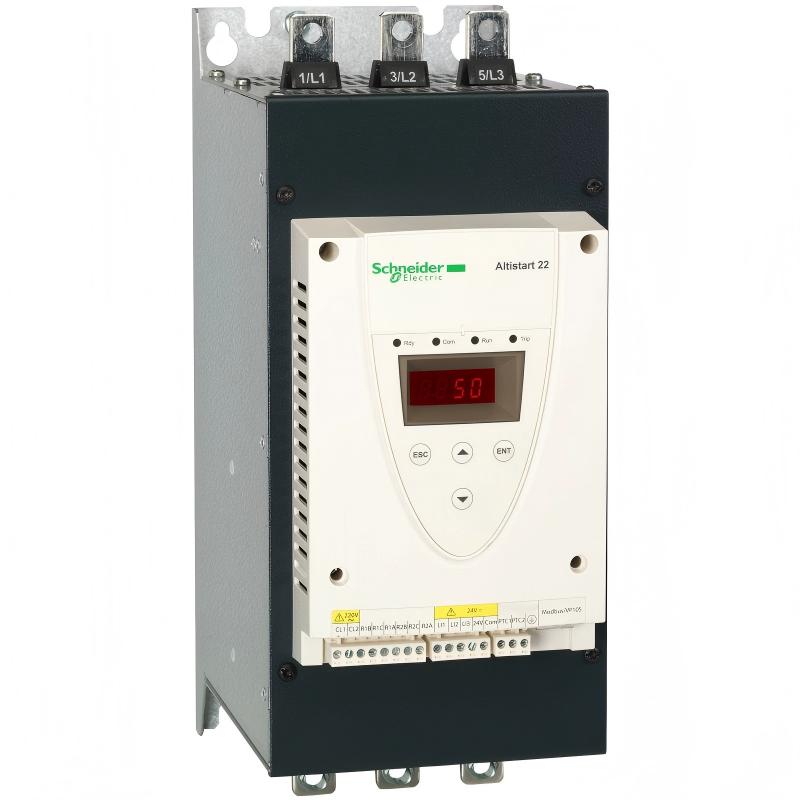

The ATS22C14S6 is part of Schneider Electric’s Altistart 22 soft starter series, engineered for reliable motor starting and stopping in industrial environments. It uses controlled voltage ramp technology to limit inrush current and reduce mechanical stress on driven equipment during startup and shutdown cycles.
Built for robustness and long-term industrial use, it combines SCR-based power control with integrated bypass functionality to ensure stable performance and improved thermal efficiency. Its design makes it suitable for critical applications where uptime, reliability, and energy efficiency are essential.
ATS22C11Q – 110A version for medium industrial applications
ATS22C14Q – Standard 140A variant for general heavy-duty use
ATS22D32Q – Higher power model for demanding industrial loads
ATS130 Series – Compact next-generation soft starter family
ATS480 Series – Advanced motor control with enhanced diagnostics
Popular Related Models
ATS22C14S6 – Standard 140A industrial soft starter (this model)
ATS22C14Q – Widely used in pumping and HVAC systems
ATS22C11Q – Common in general automation applications
ATS480C14Q – Popular upgraded alternative in modern control panels
Applications
The Schneider ATS22C14S6 Soft Starter Module is designed for demanding industrial motor control applications where controlled acceleration, reduced mechanical stress, and stable electrical performance are required. It is commonly used in medium to heavy-duty systems operating under continuous or near-continuous load conditions.
Typical applications include:
Industrial pumping systems (water supply, wastewater, process transfer)
Large HVAC installations and air handling units
Compressor stations and refrigeration systems
Conveyor and bulk material transport systems
Mining, cement, and heavy industrial processing equipment
General three-phase induction motor control in automation plants
Its controlled voltage ramping helps reduce inrush current and mechanical shock, improving equipment lifespan and overall system reliability.
Advantages
Smooth torque control reduces mechanical and electrical stress during start-up
High-power industrial design suitable for demanding motor loads
Integrated bypass contactor improves efficiency and reduces heat dissipation
Stable soft start and soft stop behavior improves process control quality
Robust construction for harsh industrial environments
Compatible with PLC-based automation and control systems
Built-in motor protection functions enhance operational safety
Reduces maintenance frequency and unplanned downtime
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with ATS22C14S6?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated power range?
Typically supports up to 90 kW depending on voltage conditions.
Q3: What is the supply voltage range?
It operates in the 230–600 V AC industrial voltage range.
Q4: Does it include an internal bypass function?
Yes, it integrates a built-in bypass contactor.
Q5: Can it be used in pump systems?
Yes, it is widely used in pumping applications to reduce water hammer effects.
Q6: Is it suitable for HVAC systems?
Yes, it is commonly used in ventilation and air handling systems.
Q7: Does it support Modbus communication?
Yes, Modbus RTU is supported for industrial integration.
Q8: Can it be integrated into PLC systems?
Yes, it is fully compatible with PLC-based automation architectures.
Q9: Does it require complex commissioning?
No, setup is relatively simple with standard parameter configuration.
Q10: Is it suitable for retrofit projects?
Yes, it is frequently used in modernization and system upgrade projects.
