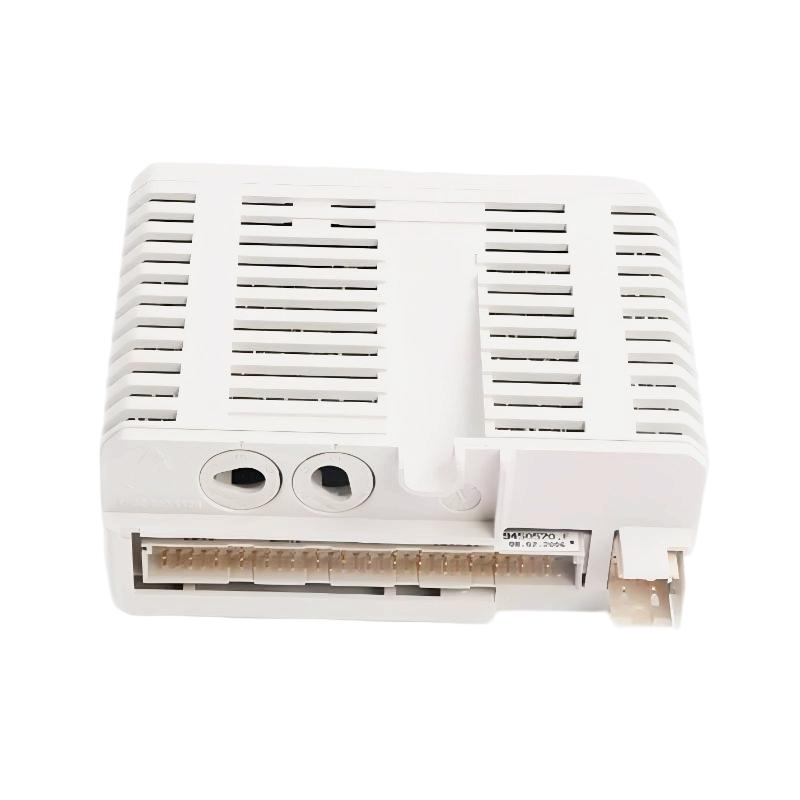

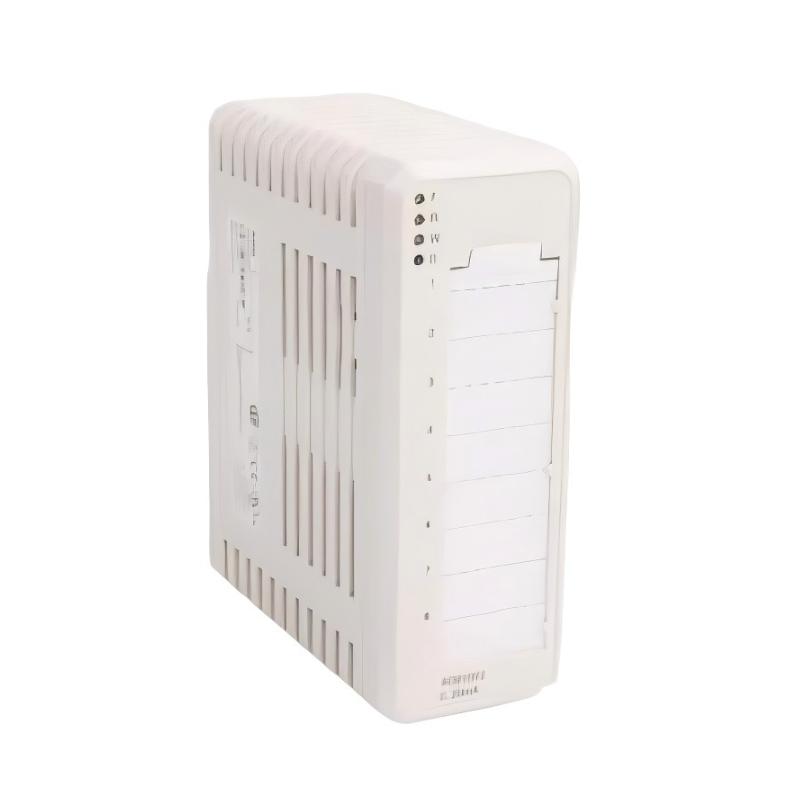

ABB DO818 3BSE069053R1 Digital Output Module

Applications

The ABB DO818 Digital Output Module is engineered for precise and reliable digital control in industrial automation systems. Ideal for managing actuators, relays, and other output devices, it is widely used in process automation, factory floor machinery, and power distribution systems. This module ensures smooth operation and enhances the safety and efficiency of automated processes.

Advantages

• High-Speed Digital Switching: Provides rapid and accurate signal output for critical control applications.

• Compact and Lightweight: Minimal footprint of 45 × 102 × 119 mm and only 0.18 kg, saving space in control panels.

• Seamless Integration: Fully compatible with ABB modular automation systems for easy installation.

• Robust and Durable: Designed to withstand industrial vibration, temperature variations, and electrical noise.

• Maintenance-Friendly: Simple wiring and quick mounting reduce setup time and operational disruption.

Technical FAQs

1. What type of output signals does it support?
   Digital ON/OFF signals.

2. Can it integrate with other ABB DO modules?
   Yes, fully compatible with ABB automation systems.

3. What is the operating temperature range?
   -25°C to +70°C.

4. Is it suitable for high-speed switching applications?
   Yes, ideal for fast signal transitions.

5. What is the module’s response time?
   Less than 10 milliseconds.

6. Is installation straightforward?
   Yes, designed for DIN rail or panel mounting with standard terminals.

7. Does it include status indicators or diagnostics?
   Yes, basic indicators allow quick operational checks.

8. Can multiple modules be networked together?
   Yes, supports scalable configurations in control cabinets.

9. Is it designed for harsh industrial environments?
   Yes, engineered for vibration, temperature swings, and electrical interference.

10. What is the module’s power supply requirement?
    Standard 24 VDC operation.
