Introduction

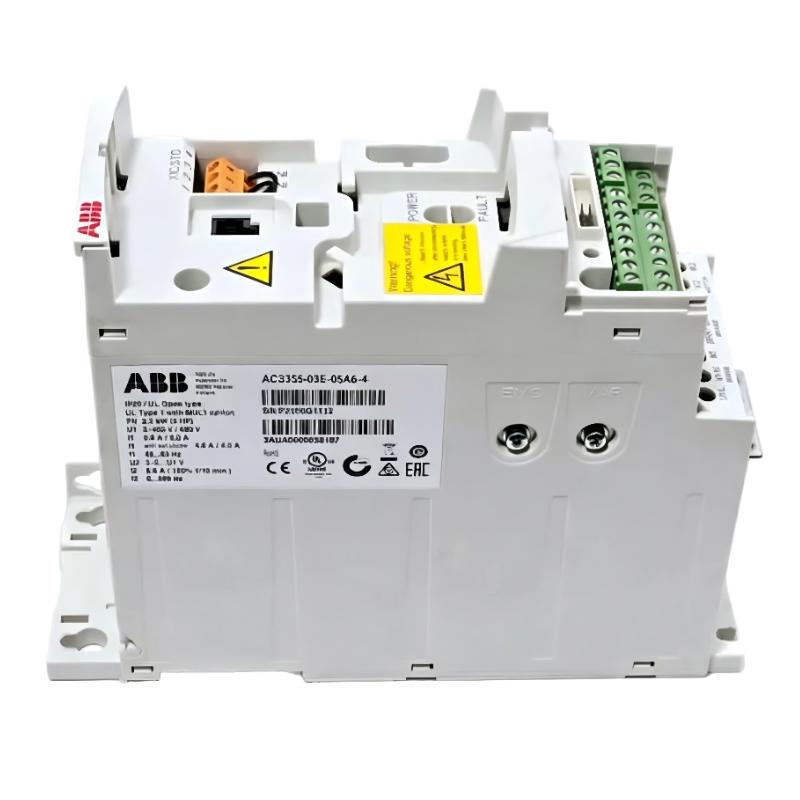

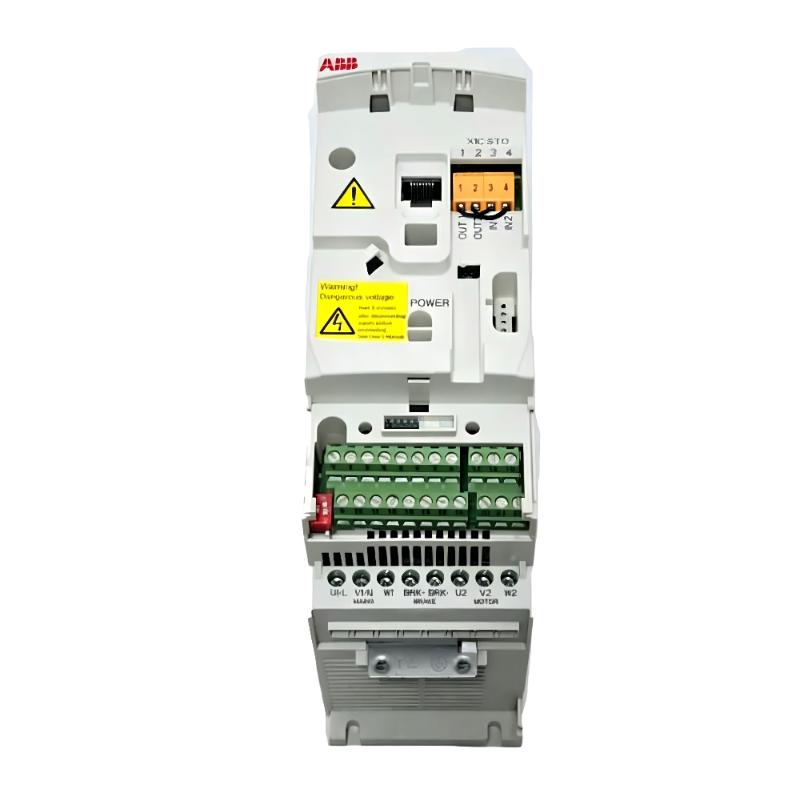

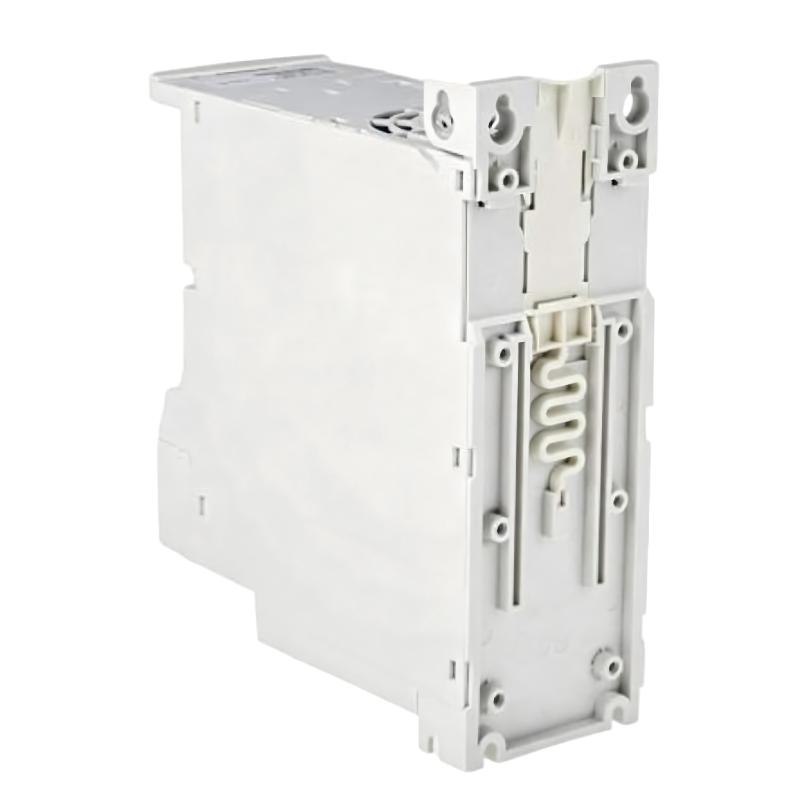

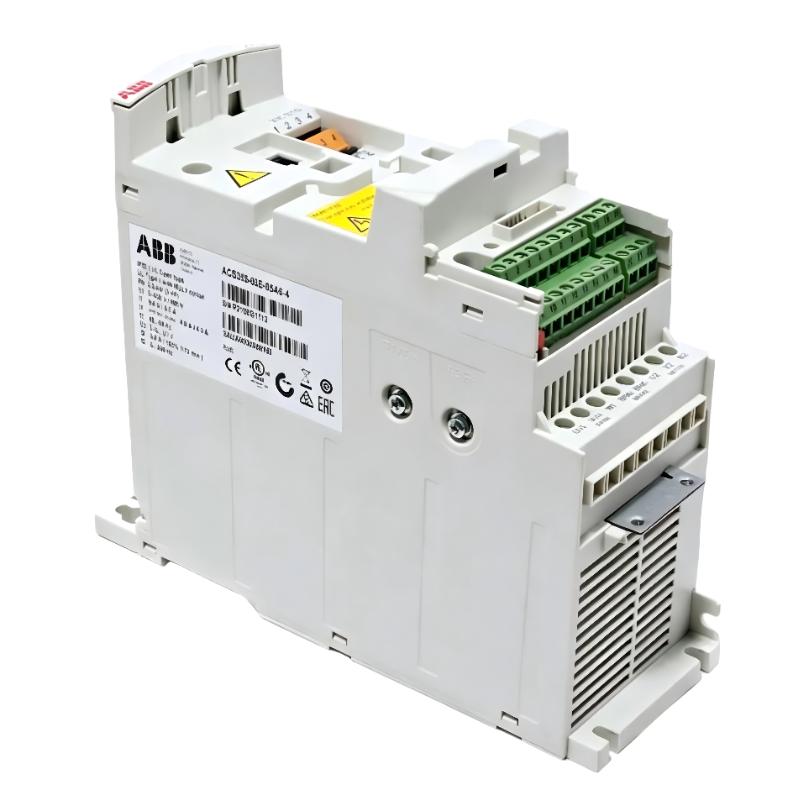

ABB ACS355-03E-05A6-4 is a frequency converter used for controlling the speed of AC induction motors. It is part of the ACS355 series and is designed for installation in industrial control cabinets. The drive is intended for general-purpose motor speed control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | ACS355-03E-05A6-4 |
| Manufacturer Part Number | 3ABD0000058247 |
| Product Type | Frequency Converter |
| Rated Motor Power | 2.2 kW |
| Rated Output Current | 5.6 A |
| Supply Voltage | 3-phase 380–480 VAC |
| Output Frequency Range | 0–599 Hz |
| Control Method | Scalar / Sensorless vector control |
| Protection Class | IP20 |
| Mounting Type | Cabinet mounting |
| Dimensions (H × W × D) | 239 × 70 × 161 mm |
| Weight | 0.98 kg (2.16 lb) |
