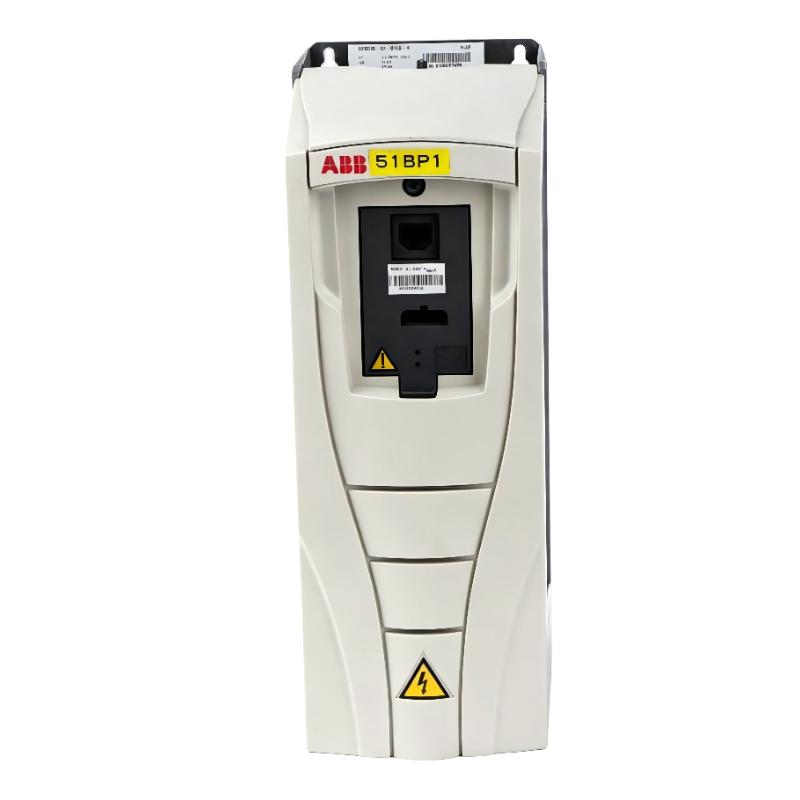

ABB ACS510-01-012A-4 3ABD00015746-D Frequency Converter
ABB ACS510-01-012A-4 3ABD00015746-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-012A-4 Product Origin:Sweden (SE) Product Dimensions:465 × 225 × 365 mm Product Weight:6.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-012A-4 (3ABD00015746-D) is a general-purpose frequency converter designed for reliable motor speed control in industrial and building automation systems. As part of ABB’s ACS510 drive family, it focuses on simplicity, energy efficiency, and optimized performance for variable torque applications.
It is widely used in HVAC systems and pump/fan control environments where stable operation and reduced energy consumption are key requirements. Its proven ABB design ensures long-term reliability and easy system integration.
Technical Specifications
Parameter
Specification
Product Model
ACS510-01-012A-4
Product Code
3ABD00015746-D
Input Voltage
3-phase 380–480 V AC
Rated Output Current
11.9 A
Rated Power
5.5 kW
Control Method
V/f Control with Energy Optimization
Frequency Range
47.5–63 Hz (up to 500 Hz max)
Protection Class
IP21
Operating Temperature
up to 40°C (rated)
Control Interfaces
Digital I/O, Analog I/O, Modbus RTU
Dimensions (H × W × D)
365 × 225 × 465 mm
Weight
6.10 kg (13.45 lb)
Recommended Related Models
ABB ACS510-01-017A-4 (higher current variant for larger motors)
ABB ACS510-01-009A-4 (lower power compact variant)
ABB ACS355-03E series (compact OEM machine drives)
ABB ACS510 series frequency converters (standard HVAC & pump drives)
ABB ACS355 series compact automation drives
ABB ACS580 series high-performance industrial drives
ABB ACH550 HVAC-specific drive series
Applications
The ABB ACS510-01-012A-4 (3ABD00015746-D) is a robust industrial frequency converter designed primarily for variable torque applications such as HVAC and general industrial automation systems. It is widely used in environments where stable motor control, energy efficiency, and simplified operation are essential.
Typical applications include pump systems, fan control units, HVAC ventilation systems, water treatment plants, and light-to-medium industrial automation processes. Its optimized control structure ensures smooth motor operation and reduced mechanical stress across varying load conditions.
Advantages
This model is part of ABB’s ACS510 series, engineered for reliable performance in standard industrial environments with a strong focus on energy savings and ease of use.
Key advantages:
Optimized for fan and pump variable torque applications
Built-in PID controller for process automation
Swinging choke design reduces harmonics and improves efficiency
Simple commissioning with intuitive control panel
Integrated EMC filtering for stable operation
Energy-efficient motor control with reduced power losses
Reliable protection functions for long service life
Technical FAQs (10 Questions)
Q1: Is this drive suitable for HVAC systems?
Yes, it is specifically optimized for HVAC, fan, and pump applications.
Q2: Does it support PID control?
Yes, it has a built-in PID controller for process regulation.
Q3: What motor types are supported?
It supports standard three-phase induction motors.
Q4: Can it be used in continuous operation?
Yes, it is designed for continuous industrial-duty operation.
Q5: Does it include EMC protection?
Yes, it includes integrated EMC filtering for industrial environments.
Q6: What communication options are available?
It supports Modbus RTU and optional fieldbus modules.
Q7: Can it handle overload conditions?
Yes, it includes overload and thermal protection functions.
Q8: Is it easy to commission?
Yes, it features a simplified setup interface with standard macros.
Q9: Does it support energy optimization?
Yes, it is designed to minimize energy consumption in variable torque loads.
Q10: Can it be installed in control cabinets?
It is a wall-mounted drive designed for cabinet integration.
