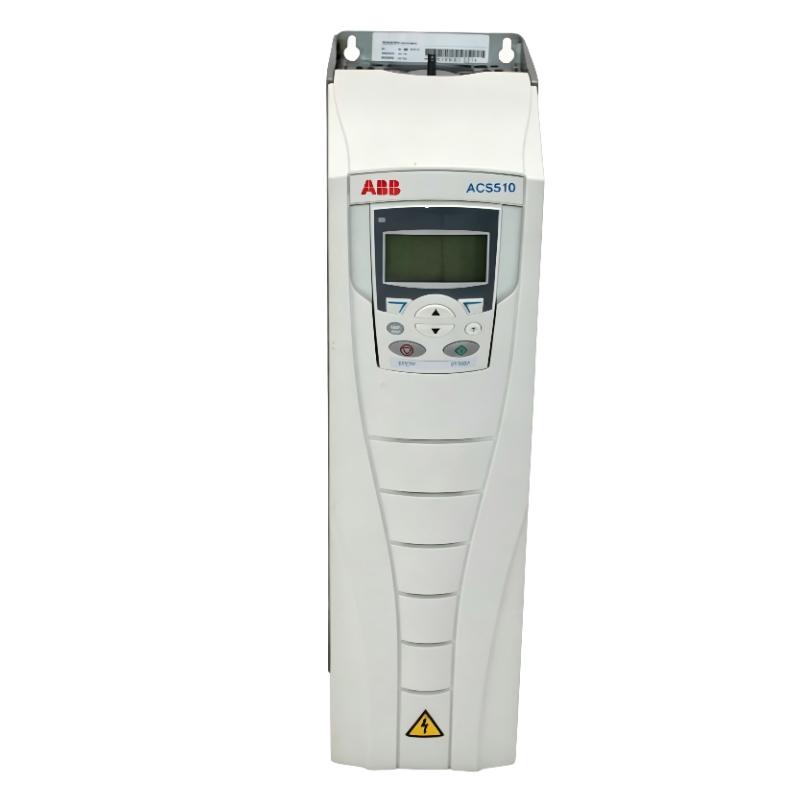

ABB ACS510-01-017A-4 3ABD00015747-D Frequency Converter
ABB ACS510-01-017A-4 3ABD00015747-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-017A-4 Product Origin:Sweden (SE) Product Dimensions:565 × 225 × 365 mm Product Weight:8.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-017A-4 is part of the ACS510 series frequency converters, designed for reliable motor speed control in pump, fan, and HVAC applications. It provides stable operation and straightforward configuration for general industrial use.
The product focuses on consistent performance, basic process control capability, and ease of integration into standard electrical systems.
Technical Specifications
Parameter
Specification
Product Model
ACS510-01-017A-4
Product Code
3ABD00015747-D
Input Voltage
3-phase 380–480 V AC
Rated Output Current
17 A
Rated Power
7.5 kW
Control Method
V/f Control
Frequency Range
47.5–63 Hz (up to 500 Hz max)
Protection Class
IP21
Operating Temperature
up to 40°C
Control Interfaces
Digital I/O, Analog I/O, Modbus RTU
Dimensions (H × W × D)
565 × 225 × 365 mm
Weight
8.80 kg (19.40 lb)
Recommended Related Models
ABB ACS510-01-012A-4 (lower power version)
ABB ACS510-01-025A-4 (higher power version)
ABB ACS355 series compact drives (OEM machine use)
ABB ACS580-01-017A-4 (new generation drive series)
Popular Related Models
ABB ACS510 series general-purpose drives
ABB ACS355 compact industrial drives
ABB ACS580 high-performance industrial drives
ABB ACH550 HVAC dedicated drives
Applications
The ABB ACS510-01-017A-4 is a general-purpose frequency converter designed for variable torque motor control in industrial and building automation systems. It is commonly applied where stable operation and efficient energy use are required.
Typical application areas include HVAC ventilation systems, water supply and treatment pumps, cooling fans, and light industrial process equipment. The drive is suitable for installations that require smooth motor starting, steady speed regulation, and basic process control functions.
Advantages
This drive is designed for straightforward integration and stable performance in standard industrial environments.
Suitable for pump and fan applications
Integrated PID controller for basic process control
Built-in EMC filtering for improved system stability
Simple parameter setup and commissioning
Energy-saving operation under variable load conditions
Protection functions for motor and drive safety
Compact installation suitable for control cabinets
Technical FAQs (10 Questions)
Q1: What type of applications is this drive intended for?
It is mainly used for pumps, fans, and HVAC systems.
Q2: Does it support process control functions?
Yes, it includes a built-in PID controller.
Q3: What motor type can be used?
Standard three-phase induction motors.
Q4: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial use.
Q5: Does it include built-in protection functions?
Yes, including overload and thermal protection.
Q6: What communication interface is available?
Modbus RTU is supported.
Q7: Can it be installed in a cabinet?
Yes, it is designed for cabinet installation.
Q8: Is parameter setup complicated?
No, basic setup is simplified with standard parameters.
Q9: Does it support energy optimization?
Yes, it can reduce energy consumption in variable torque applications.
Q10: Is it suitable for harsh industrial environments?
It is suitable for standard industrial environments within rated conditions.
