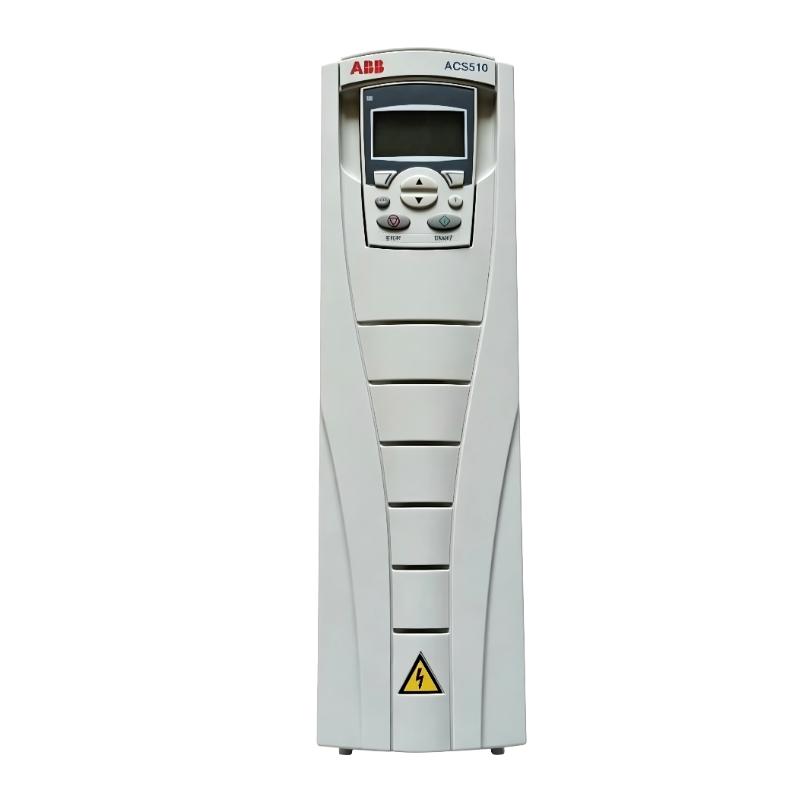

ABB ACS510-01-025A-4 3ABD00015748-D Frequency Converter
ABB ACS510-01-025A-4 3ABD00015748-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-025A-4 Product Origin:Sweden (SE) Product Dimensions:565 × 225 × 365 mm Product Weight:8.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-025A-4 (3ABD00015748-D) is a frequency converter designed for reliable motor control in HVAC and industrial pump applications. It is part of the ABB ACS510 series, known for stable performance and straightforward operation.
The drive is widely used in systems where consistent motor speed control, reduced energy consumption, and simple installation are required. Its design supports standard industrial environments and offers dependable operation over long service life.
Technical Specifications
Parameter
Specification
Product Model
ACS510-01-025A-4
Product Code
3ABD00015748-D
Input Voltage
3-phase 380–480 V AC
Rated Output Current
25 A
Rated Power
11 kW
Control Method
V/f Control
Frequency Range
47.5–63 Hz (up to 500 Hz max)
Protection Class
IP21
Operating Temperature
up to 40°C
Control Interfaces
Digital I/O, Analog I/O, Modbus RTU
Dimensions (H × W × D)
565 × 225 × 365 mm
Weight
8.80 kg (19.40 lb)
Recommended Related Models
ABB ACS510-01-017A-4 (lower power variant)
ABB ACS510-01-032A-4 (higher power variant)
ABB ACS355 series compact drives (OEM machinery use)
ABB ACS580-01-025A-4 (new generation industrial drive)
Popular Related Models
ABB ACS510 series general-purpose frequency converters
ABB ACS355 compact industrial drives
ABB ACS580 high-performance drive series
ABB ACH550 HVAC optimized drive series
Applications
The ABB ACS510-01-025A-4 is a general-purpose frequency converter used for controlling motor speed in variable torque applications. It is commonly applied in HVAC systems and light industrial automation where stable operation and energy efficiency are required.
Typical application areas include pump systems, ventilation fans, water treatment equipment, cooling systems, and general industrial process equipment. The drive supports smooth motor starting and steady speed regulation in continuous operation environments.
Advantages
This model is designed for reliable operation and simple integration in standard industrial systems.
Suitable for pump and fan control applications
Built-in PID controller for basic process regulation
Integrated EMC filter for stable operation
Simple commissioning and parameter setup
Energy-efficient motor control under variable load
Standard protection functions for motor safety
Designed for cabinet or wall mounting installation
Technical FAQs (10 Questions)
Q1: What applications is this drive mainly used for?
It is mainly used for pumps, fans, and HVAC systems.
Q2: Does it support PID control?
Yes, it includes a built-in PID controller.
Q3: What motor type is compatible?
Standard three-phase induction motors.
Q4: Can it operate continuously?
Yes, it is designed for continuous industrial use.
Q5: Does it include EMC filtering?
Yes, integrated EMC filtering is included.
Q6: What communication interface is supported?
It supports Modbus RTU communication.
Q7: Is it suitable for cabinet installation?
Yes, it is designed for control cabinet installation.
Q8: Does it support overload protection?
Yes, it includes overload and thermal protection.
Q9: Is commissioning complicated?
No, it uses simplified parameter settings.
Q10: Does it support energy saving operation?
Yes, it adjusts motor speed to reduce energy consumption in variable torque loads.
