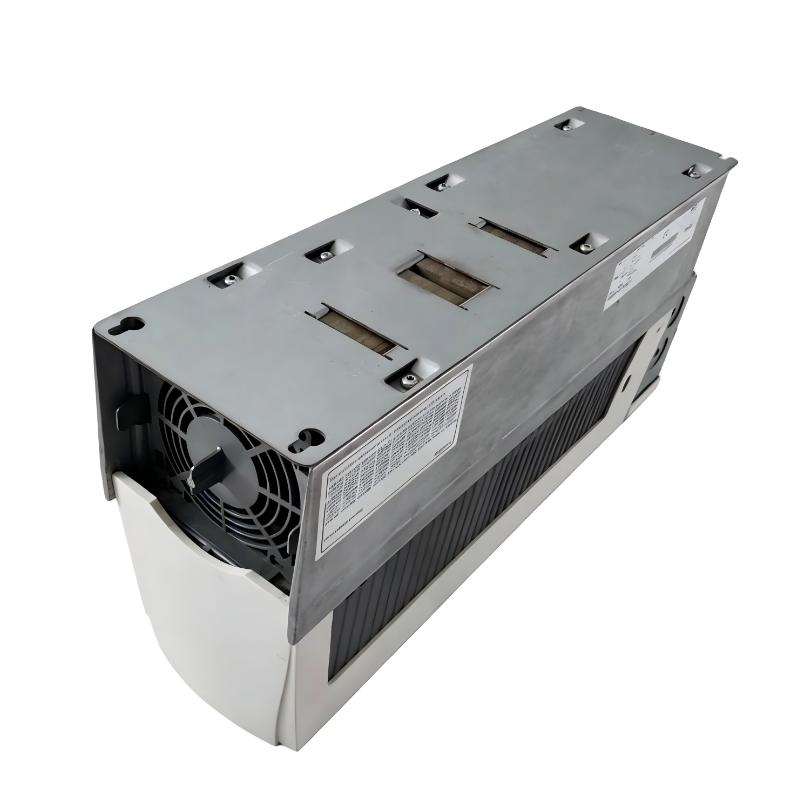

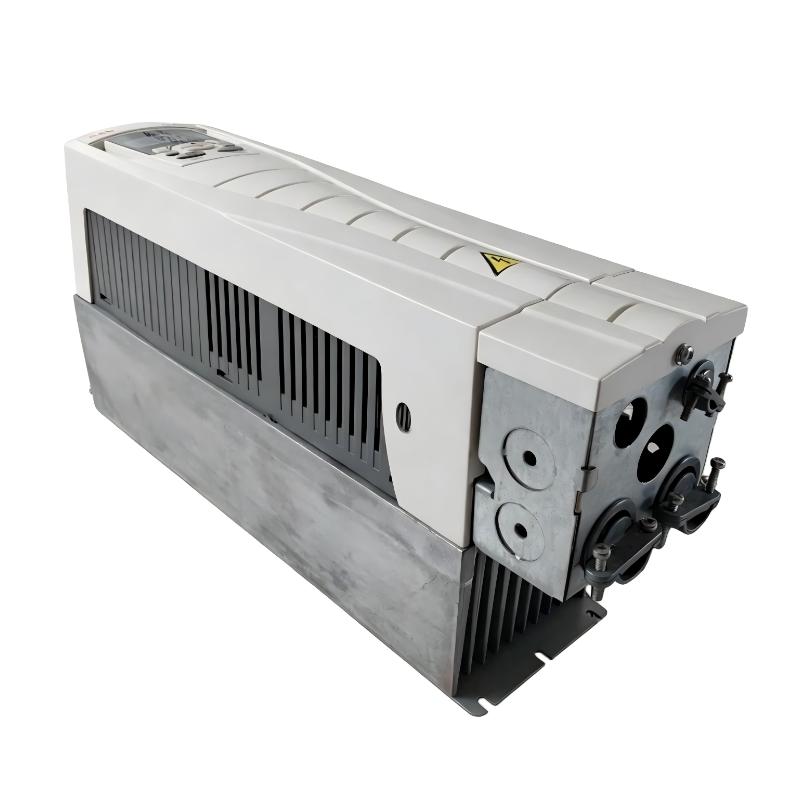

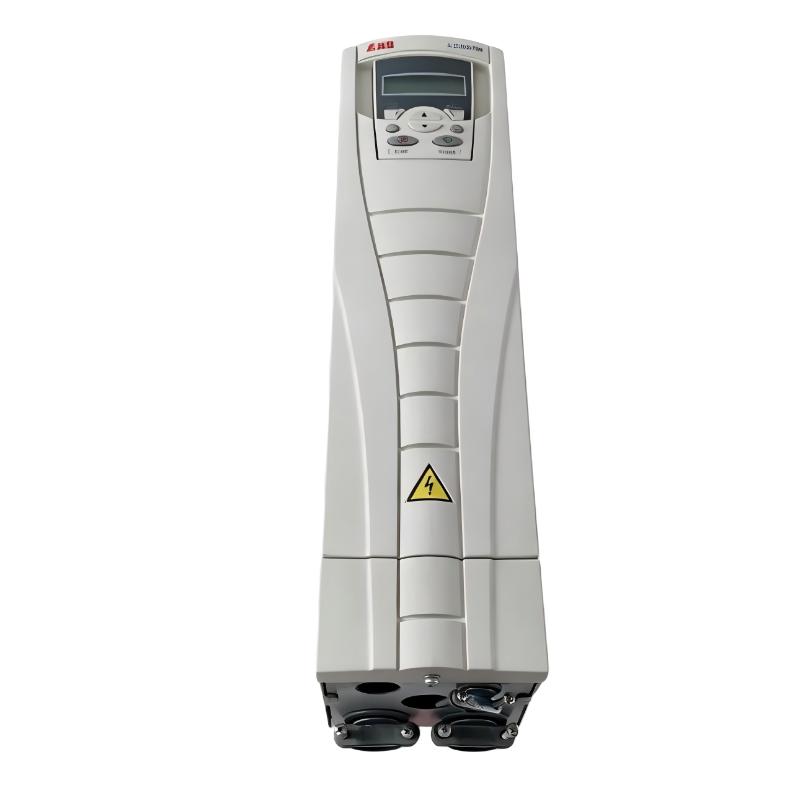

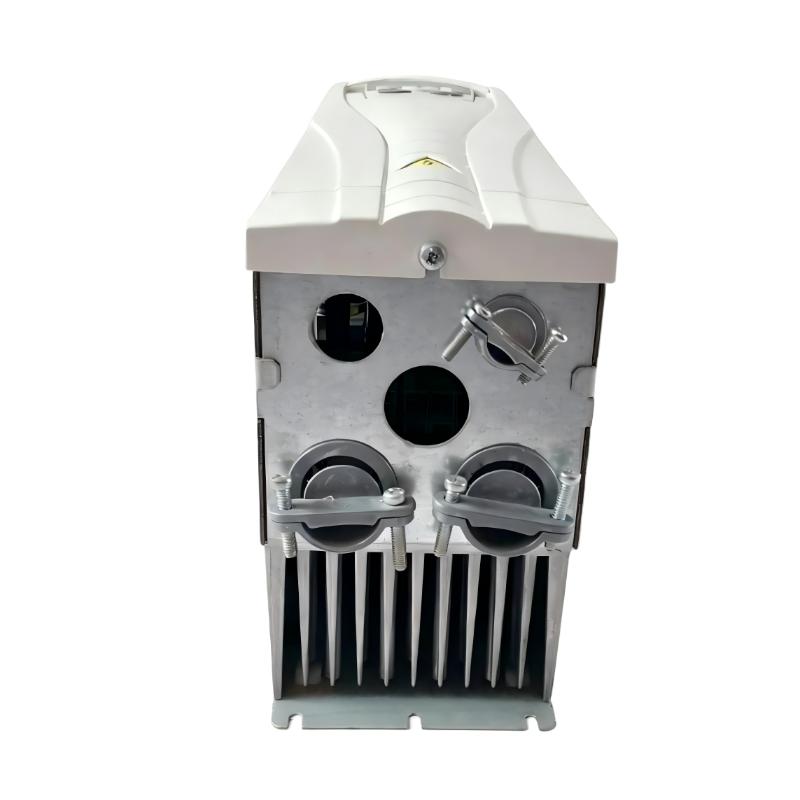

ABB ACS510-01-025A-4 3ABD00015748-S Frequency Converter
ABB ACS510-01-025A-4 3ABD00015748-S Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-025A-4 Product Origin:Sweden (SE) Product Dimensions:565 × 225 × 365 mm Product Weight:8.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-025A-4 (3ABD00015748-S) is a frequency converter designed for reliable motor speed control in HVAC and industrial pump applications. It is part of the ACS510 series, known for stable performance and ease of use in standard industrial environments.
The drive is widely applied in systems requiring consistent motor control, reduced energy consumption, and simple installation. Its design focuses on dependable operation and long service life in variable torque applications.
Technical Specifications
Parameter
Specification
Product Model
ACS510-01-025A-4
Product Code
3ABD00015748-S
Input Voltage
3-phase 380–480 V AC
Rated Output Current
25 A
Rated Power
11 kW
Control Method
V/f Control
Frequency Range
47.5–63 Hz (up to 500 Hz max)
Protection Class
IP21
Operating Temperature
up to 40°C
Control Interfaces
Digital I/O, Analog I/O, Modbus RTU
Dimensions (H × W × D)
565 × 225 × 365 mm
Weight
8.80 kg (19.40 lb)
Recommended Related Models
ABB ACS510-01-017A-4 (lower power variant)
ABB ACS510-01-032A-4 (higher power variant)
ABB ACS355 series compact drives (OEM machinery applications)
ABB ACS580-01-025A-4 (new generation industrial drive series)
Popular Related Models
ABB ACS510 series general-purpose frequency converters
ABB ACS355 compact industrial drives
ABB ACS580 high-performance drive series
ABB ACH550 HVAC optimized drive series
Applications
The ABB ACS510-01-025A-4 is a general-purpose frequency converter designed for variable torque motor control in industrial and building automation systems. It is commonly used in applications where stable speed regulation and energy efficiency are required.
Typical application areas include HVAC ventilation systems, pump stations, cooling systems, water treatment plants, and general industrial process equipment. It supports smooth motor operation under varying load conditions and is suitable for continuous operation environments.
Advantages
This drive is designed for stable performance and straightforward integration in standard industrial installations.
Suitable for pump and fan control applications
Built-in PID controller for process regulation
Integrated EMC filtering for stable operation
Simple parameter setup and commissioning
Energy-efficient motor speed control
Standard protection functions for motor safety
Designed for cabinet mounting applications
Technical FAQs (10 Questions)
Q1: What type of applications is this drive suitable for?
It is mainly used for HVAC, pumps, and fan systems.
Q2: Does it support PID control?
Yes, it includes a built-in PID function for process control.
Q3: What motor type is supported?
It supports standard three-phase induction motors.
Q4: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial use.
Q5: Does it include EMC protection?
Yes, it has integrated EMC filtering.
Q6: What communication protocol is supported?
Modbus RTU is supported.
Q7: Can it be installed in a control cabinet?
Yes, it is designed for cabinet installation.
Q8: Does it support overload protection?
Yes, it includes overload and thermal protection.
Q9: Is commissioning complicated?
No, basic setup is simplified with standard parameters.
Q10: Does it support energy saving functions?
Yes, it adjusts motor speed based on load demand to reduce energy consumption.
