Brand:Schneider PLC Item No.:ATS22D47S6 Product Origin:France Product Dimensions:265 x 130 x 169 mm Product Weight:7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

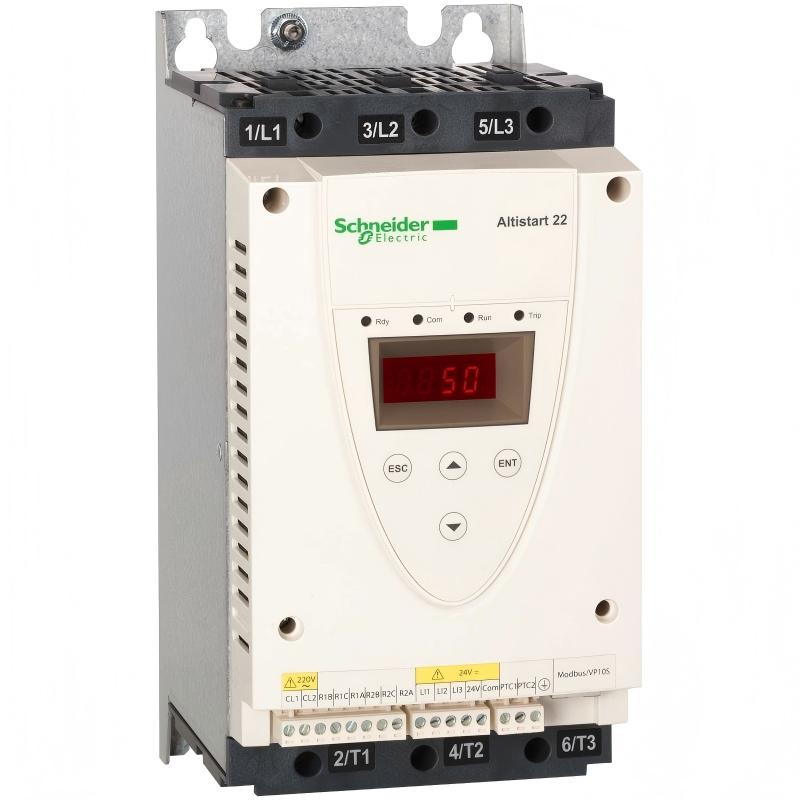

The Schneider Altistart 22 ATS22D47S6 is a motor starting control device designed to support smooth acceleration of three-phase motors. It is positioned as an intermediate solution between traditional direct-on-line starters and variable speed drives.
This model is widely applied in industrial systems where consistent startup behavior and simplified operation are required without the need for full speed regulation.
ATS22D17S6 – Suitable for lower power motor applications
ATS22D32S6 – Medium capacity soft starter model
ATS22D62S6 – Higher current industrial variant
ATS48 Series – Advanced soft starter series for heavier applications
ATV320 Series – Variable speed drive alternative for speed control requirements
Popular Related Models
ATS22D17S6
ATS22D32S6
ATS22D47S6
ATS22D62S6
ATS22D88S6
Applications
The Schneider ATS22D47S6 Soft Starter is designed for controlled motor starting applications in industrial environments where smooth acceleration is required for operational stability.
It is commonly used in:
Water circulation and treatment systems
HVAC systems including chillers and ventilation units
Conveyor and automated material transport lines
Industrial processing equipment such as mixers and crushers
Pumping systems in general industrial operations
Material handling systems in manufacturing plants
Auxiliary systems in energy and process facilities
The device supports gradual motor acceleration to help improve overall mechanical system consistency during startup phases.
Advantages
The ATS22D47S6 provides efficient motor starting control with a focus on stable operation and simplified integration.
Enables smooth motor acceleration for stable system startup
Supports reduced electrical stress during motor start phases
Integrated bypass function improves operational efficiency after start
Compact structure suitable for control cabinet installation
Helps improve mechanical system service life through controlled operation
Suitable for a wide range of industrial load types
Simplified setup and commissioning process
Designed for continuous industrial usage environments
Technical FAQs (10 Questions)
Q1: What type of motors is this device suitable for?
It is designed for three-phase induction motors used in industrial applications.
Q2: Does it include an internal bypass function?
Yes, it includes an integrated bypass feature after startup.
Q3: Can it be used in pumping systems?
Yes, it is commonly used in pump-based applications.
Q4: Is additional motor protection required?
System-level protection may be applied depending on installation requirements.
Q5: What communication interface does it support?
It supports Modbus RTU communication via RS485.
Q6: Can it be used with PLC systems?
Yes, it supports integration through digital I/O and communication interfaces.
Q7: Is it suitable for repeated starting cycles?
It supports repeated operation within defined operating conditions.
Q8: Does it control motor torque during startup?
It provides controlled voltage ramping for smooth starting behavior.
Q9: What installation position is required?
Vertical installation with adequate ventilation space is recommended.
Q10: Is configuration required before operation?
Yes, basic motor parameters need to be configured before use.
