Brand:Schneider PLC Item No.:ATS22D75S6 Product Origin:France Product Dimensions:295 x 145 x 207 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

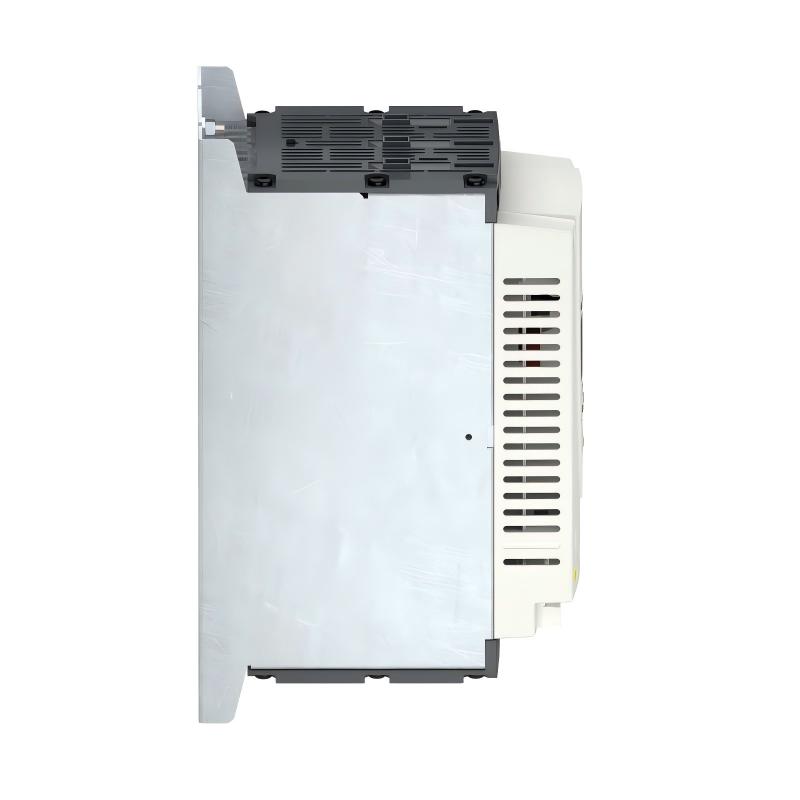

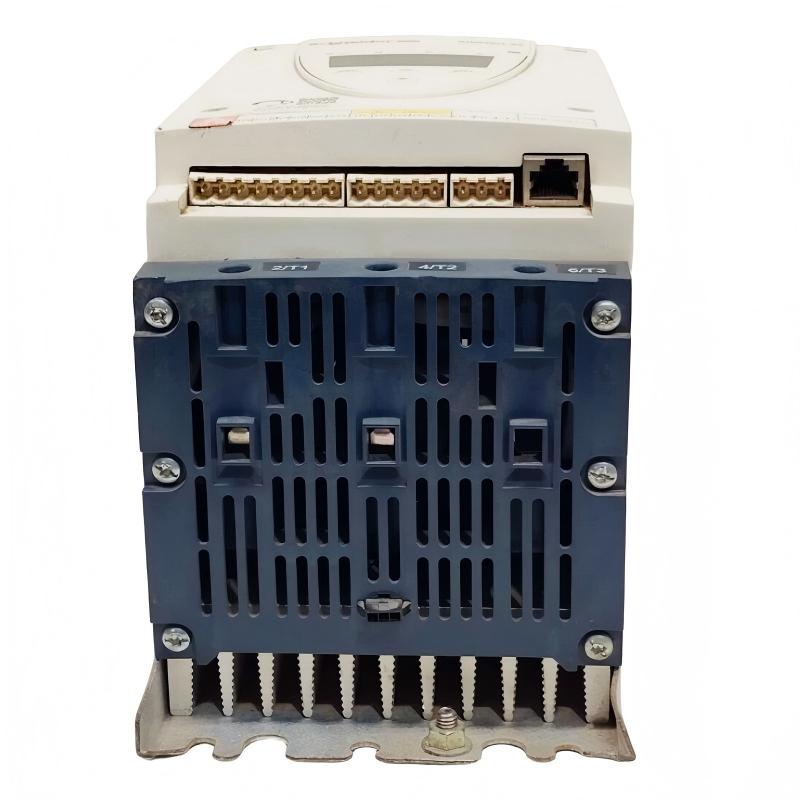

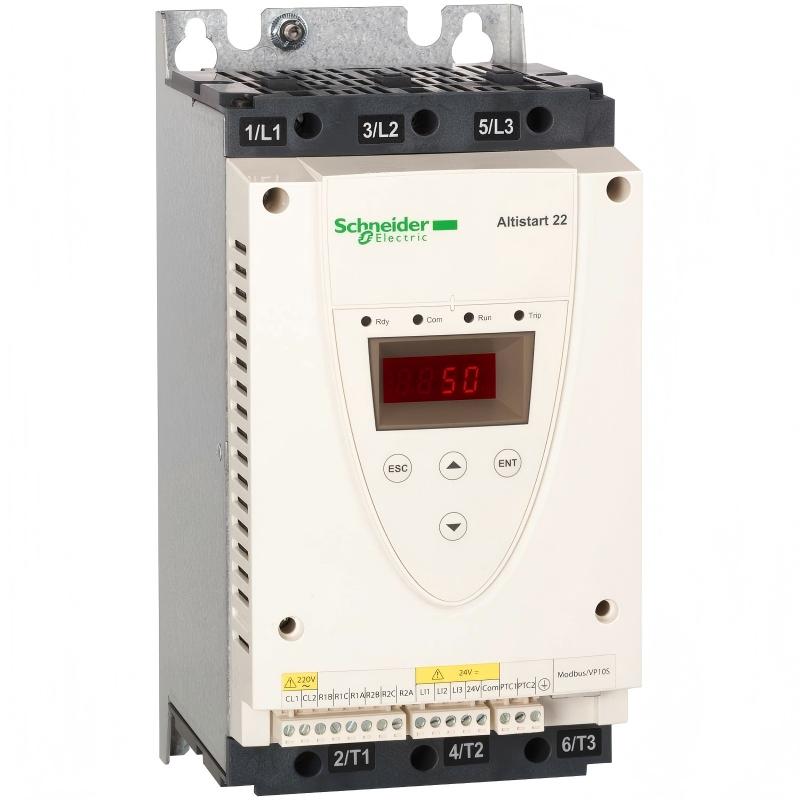

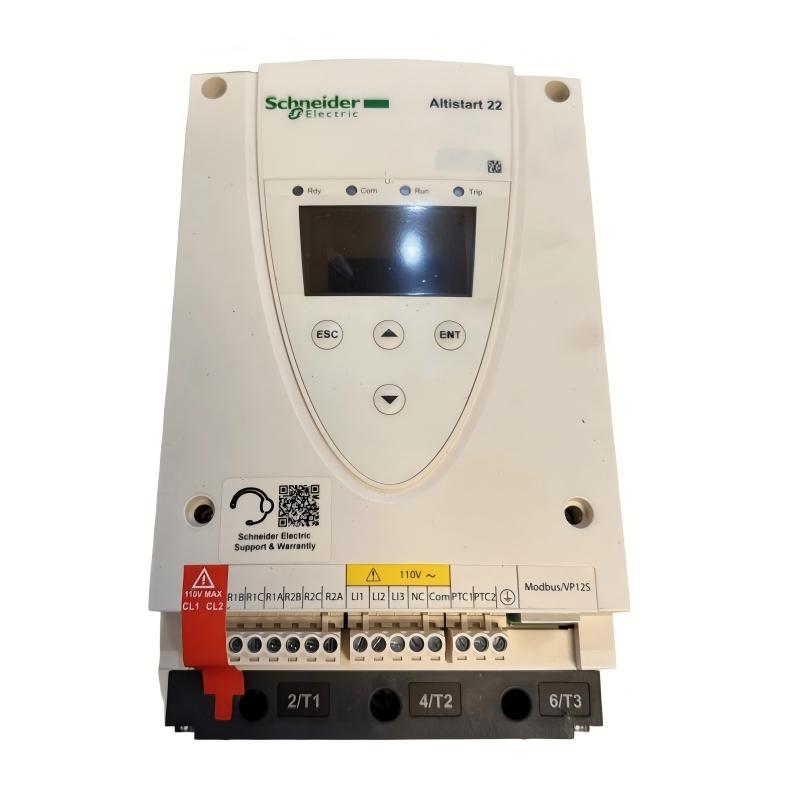

The Schneider Altistart 22 ATS22D75S6 is a motor starting module designed to support gradual acceleration of three-phase motors in industrial applications. It is positioned between basic motor starters and variable speed drive solutions.
This model is widely used in industrial environments where stable startup behavior and simplified operation are required.
ATS22D62S6 – Medium power variant for industrial motors
ATS22D47S6 – Lower current soft starter model
ATS22D88S6 – Higher capacity model for larger loads
ATS48 Series – Advanced soft starter platform
ATV320 Series – Variable speed drive alternative
Popular Related Models
ATS22D17S6
ATS22D32S6
ATS22D47S6
ATS22D62S6
ATS22D75S6
Applications
The Schneider ATS22D75S6 Soft Starter is used in industrial systems where three-phase motors require a smooth and gradual start sequence for stable equipment operation.
Typical application areas include:
Water circulation and treatment systems
HVAC ventilation and cooling installations
Conveyor and material handling systems
Industrial processing equipment
Pumps, fans, and compressor systems
Mining and material transport equipment
General industrial machinery systems
It is commonly applied in systems where gradual motor starting behavior is preferred for consistent operation.
Advantages
The ATS22D75S6 provides reliable and consistent motor starting behavior for industrial environments.
Supports gradual motor start sequence
Helps reduce sudden electrical demand during startup phase
Integrated bypass function for normal running mode
Compact structure suitable for control cabinet installation
Compatible with a wide range of industrial motor applications
Stable performance across different load conditions
Simplified installation and configuration process
Designed for continuous industrial operation
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with ATS22D75S6?
It is designed for three-phase induction motors.
Q2: Does it include a bypass function?
Yes, it includes an internal bypass function.
Q3: Can it be used in pumping systems?
Yes, it is commonly used in fluid and pumping applications.
Q4: What communication interface is supported?
It supports Modbus RTU communication via RS485.
Q5: Can it be integrated with PLC systems?
Yes, it supports digital I/O and communication-based integration.
Q6: Is external motor protection required?
It depends on the overall system design.
Q7: Can it support repeated start cycles?
Yes, within rated operating conditions.
Q8: Does it support controlled startup behavior?
Yes, it enables a gradual motor start sequence.
Q9: What installation position is required?
Vertical mounting with sufficient ventilation is recommended.
Q10: Is configuration required before operation?
Yes, motor parameters must be set during commissioning.
