Brand:Schneider PLC Item No.:ATS22D75S6U Product Origin:France Product Dimensions:295 x 145 x 207 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

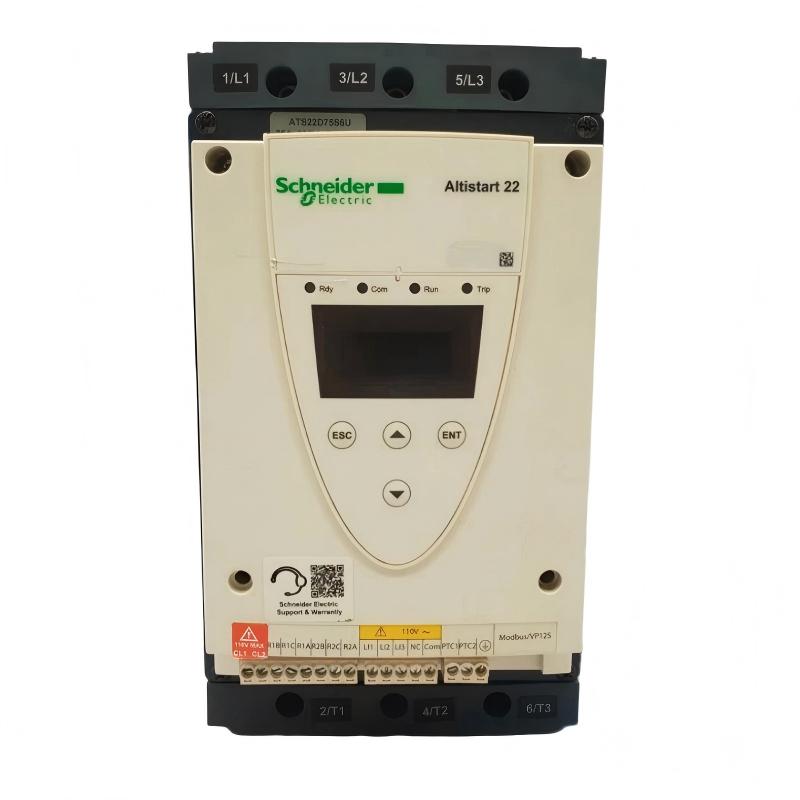

The Schneider Altistart 22 ATS22D75S6U is a motor starting module designed to support gradual acceleration of three-phase motors in industrial applications. It is positioned between basic motor starters and variable speed drive solutions.
This model is widely used where stable startup behavior and simplified operation are required in industrial systems.
ATS22D88S6U – Higher capacity model for larger motors
ATS48 Series – Advanced motor starting platform
ATV320 Series – Variable speed drive alternative
Popular Related Models
ATS22D17S6U
ATS22D32S6U
ATS22D47S6U
ATS22D62S6U
ATS22D75S6U
Applications
The Schneider ATS22D75S6U Soft Starter is used in industrial motor systems where three-phase motors operate with a requirement for smooth and stable startup behavior.
Typical application areas include:
Water circulation and treatment systems
HVAC ventilation and cooling installations
Conveyor and material handling systems
Industrial processing equipment
Pumping and fluid transfer systems
Mining and production equipment
General industrial machinery systems
It is commonly used in environments where gradual motor startup is preferred for stable equipment operation.
Advantages
The ATS22D75S6U provides practical benefits for industrial equipment operation.
Supports smooth motor start behavior
Helps reduce sudden electrical demand during startup
Integrated bypass function for normal running condition
Compact structure suitable for control cabinet installation
Compatible with a wide range of industrial motor systems
Stable performance under different load conditions
Simple installation and setup process
Designed for continuous industrial operation
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with ATS22D75S6U?
It is designed for three-phase induction motors.
Q2: Does it include a bypass function?
Yes, it includes an integrated bypass function.
Q3: Can it be used in pump systems?
Yes, it is commonly used in pumping and fluid applications.
Q4: What communication protocol is supported?
Modbus RTU via RS485.
Q5: Can it be integrated with PLC systems?
Yes, it supports digital inputs and communication integration.
Q6: Is external motor protection required?
It depends on system design requirements.
Q7: Can it support repeated start cycles?
Yes, within rated operating conditions.
Q8: Does it support gradual startup behavior?
Yes, it enables controlled motor startup behavior.
Q9: What installation orientation is required?
Vertical mounting with proper ventilation is recommended.
Q10: Is configuration required before operation?
Yes, motor parameters must be set during commissioning.
