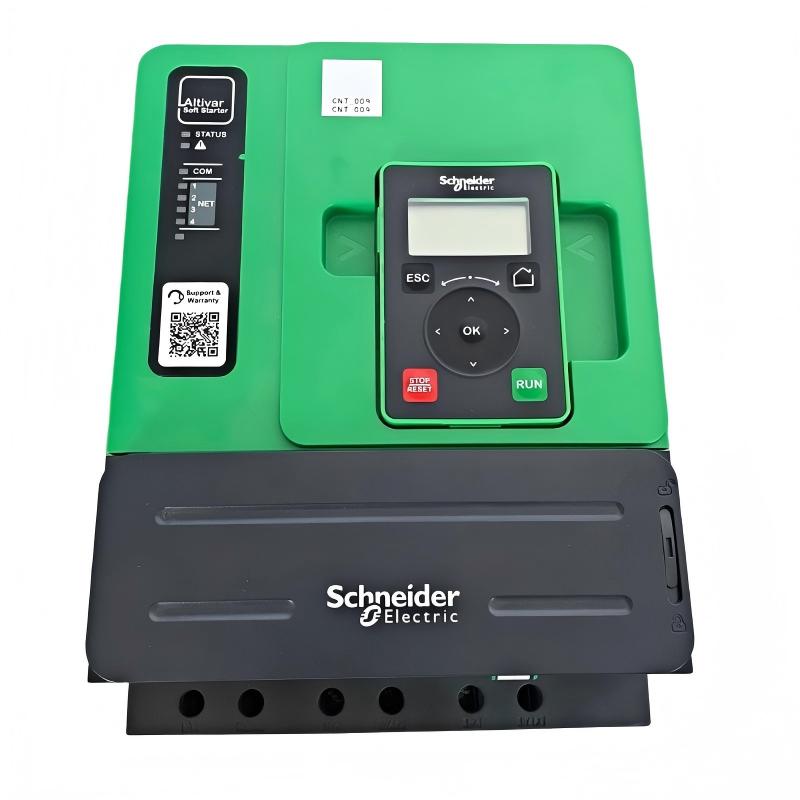

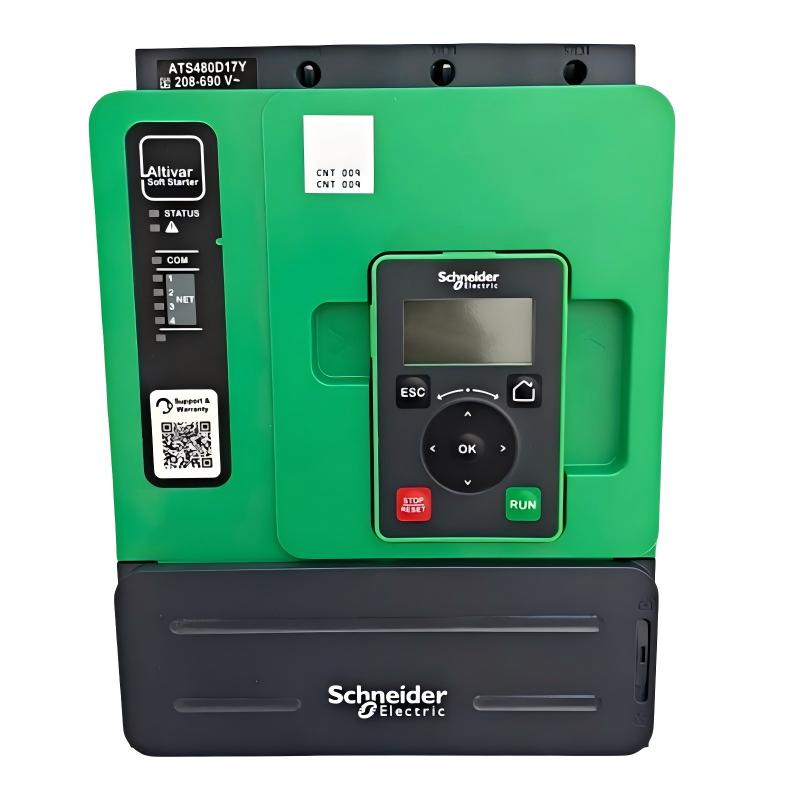

Introduction The Schneider ATS480D17Y is an industrial module used in equipment systems that involve motor-driven mechanical movement. It belongs to the ATS480 series and is designed for use in factory and infrastructure environments.
It is commonly selected for applications where smooth equipment operation is preferred during startup conditions.
Technical Specifications (Including Dimensions & Weight) Parameter Value Product Model ATS480D17Y Manufacturer Schneider Electric Series Altivar ATS480 Device Type Industrial Module Unit Rated Current 17 A Supply Voltage 208–690 VAC Control Voltage 110–230 VAC Power Range up to ~15 kW (application dependent) Frequency 50/60 Hz Dimensions (H × W × D) 275 × 160 × 203 mm Weight 4.90 kg / 10.80 lb Protection Level IP20 Installation Type Enclosure mounting Cooling Method Air-based cooling Communication Optional modules depending on setup Operating Temperature -15°C to +60°C Usage Class Industrial equipment class
Recommended Related Models
ATS480D22Y – Higher capacity model
ATS480D32Y – Medium range model
ATS480D47Y – Larger equipment model
ATS480D62Y – Heavy industrial model
ATS22 Series – Previous generation product line
Popular Related Models
ATS480D17Y
ATS480D22Y
ATS480D32Y
ATS480D47Y
ATS480D62Y
Applications The Schneider ATS480D17Y is used in industrial equipment environments involving three-phase motor-based machinery.
Typical usage includes:
Water handling equipment
Air movement and ventilation equipment
Material transport equipment
Industrial processing machines
Compressor-related equipment
Mining and material flow equipment
General factory equipment setups
It is applied in equipment where gradual mechanical movement at startup is preferred.
Advantages The ATS480D17Y provides stable support for industrial equipment usage.
Supports gradual movement at equipment start phase
Suitable for various industrial machine types
Designed for long-term industrial environments
Compact structure for installation in equipment enclosures
Works with modern industrial equipment layouts
Suitable for continuous working conditions
Designed for stable operation in factory environments
Applicable to a wide range of equipment types
Technical FAQs (10 Questions) Q1: What type of motor is used with this unit?
Q2: What is the rated current?
Q3: What voltage range is supported?
Q4: Is it used in industrial environments?
Q5: Can it be used in pumping systems?
Q6: Can it be used in air systems?
Q7: What installation type is required?
Q8: Does it require configuration?
Q9: Is it suitable for continuous use?
Q10: Is it used in heavy equipment?
