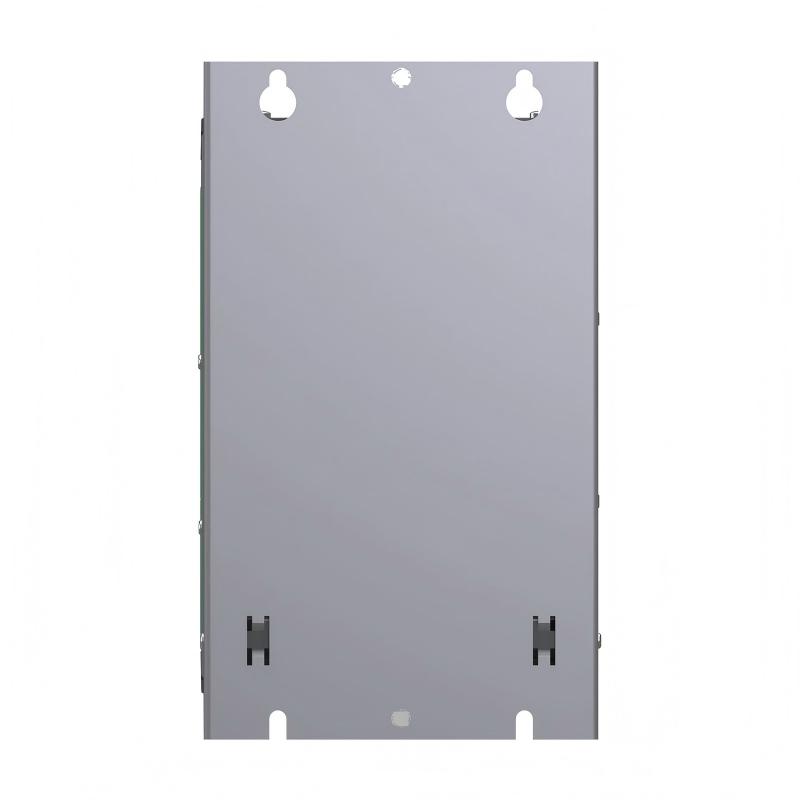

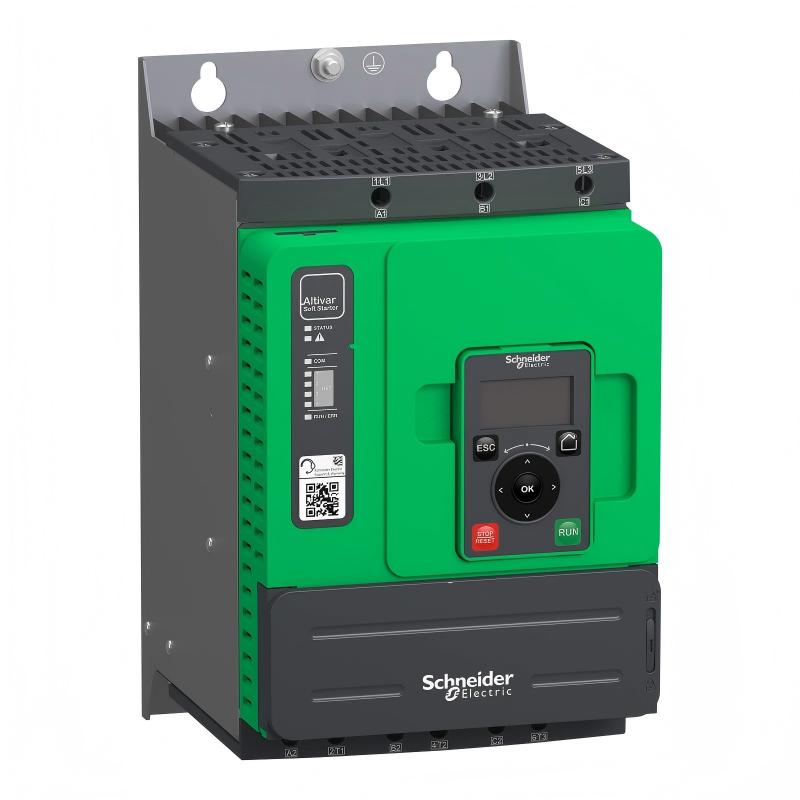

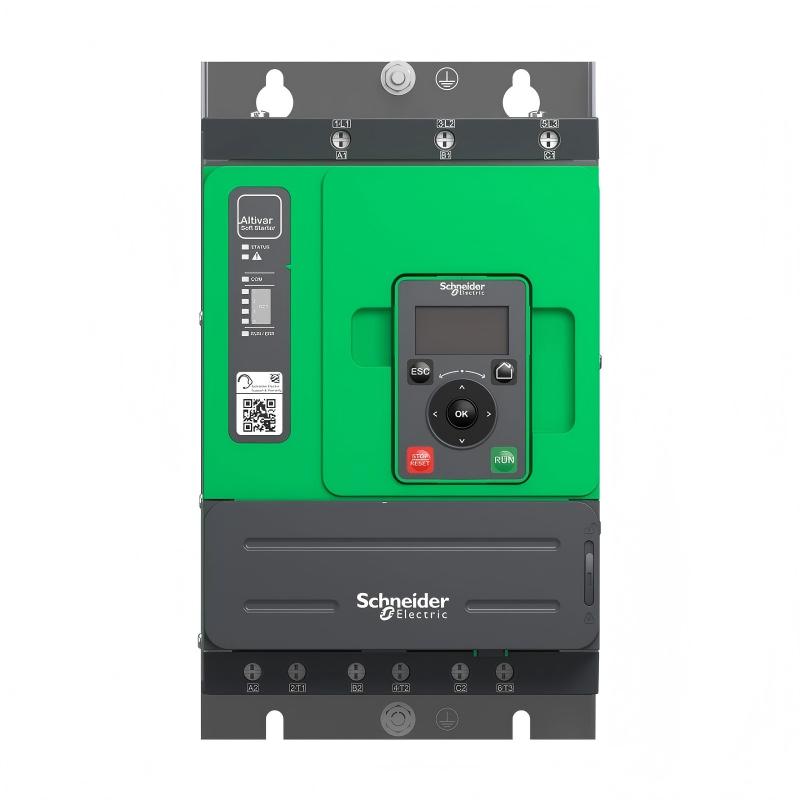

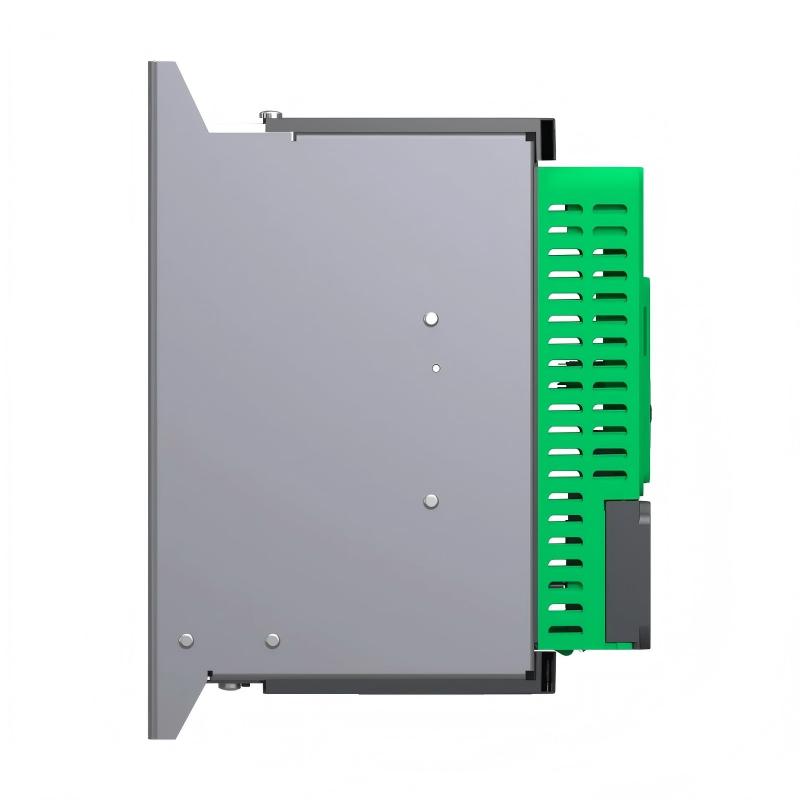

Introduction The Schneider ATS480D22Y is an industrial equipment module designed for use in motor-based machinery environments. It belongs to the ATS480 series and is used in factory and infrastructure equipment setups.
It is commonly selected where consistent mechanical behavior during initial operation phase is required.
Technical Specifications (Including Dimensions & Weight) Parameter Value Product Model ATS480D22Y Manufacturer Schneider Electric Series Altivar ATS480 Device Type Industrial Equipment Module Rated Current 22 A Supply Voltage 208–690 VAC Control Voltage 110–230 VAC Power Range up to ~18.5 kW (application dependent) Frequency 50/60 Hz Dimensions (H × W × D) 275 × 160 × 203 mm Weight 4.90 kg / 10.80 lb Protection Class IP20 Installation Type Enclosure mounting Cooling Method Air convection Communication Optional modules depending on configuration Operating Temperature -15°C to +60°C Usage Class Industrial equipment class
Recommended Related Models
ATS480D17Y
ATS480D32Y
ATS480D47Y
ATS480D62Y
ATS22 Series
Popular Related Models
ATS480D17Y
ATS480D22Y
ATS480D32Y
ATS480D47Y
ATS480D62Y
Applications The Schneider ATS480D22Y is used in industrial environments involving three-phase motor-based equipment.
Typical usage includes:
Water treatment equipment
Air movement equipment
Material transport equipment
Industrial processing equipment
Compressor equipment
Mining equipment
Factory equipment systems
It is used in equipment arrangements where gradual mechanical movement at initial phase is required.
Advantages The ATS480D22Y provides stable use characteristics in industrial equipment environments.
Supports gradual mechanical movement at initial phase
Suitable for a wide range of industrial equipment
Designed for long-term industrial environments
Compact structure for enclosure installation
Compatible with modern industrial equipment layouts
Stable performance in continuous usage environments
Modular design structure
Suitable for heavy industrial environments
Technical FAQs (10 Questions) Q1: What type of motor is used with this model?
Q2: What is the rated current?
Q3: What voltage range is supported?
Q4: Is it used in industrial environments?
Q5: Can it be used in water-related equipment?
Q6: Can it be used in air-related equipment?
Q7: What installation type is required?
Q8: Are optional modules available?
Q9: Is preparation required before use?
Q10: Is it suitable for continuous use?
