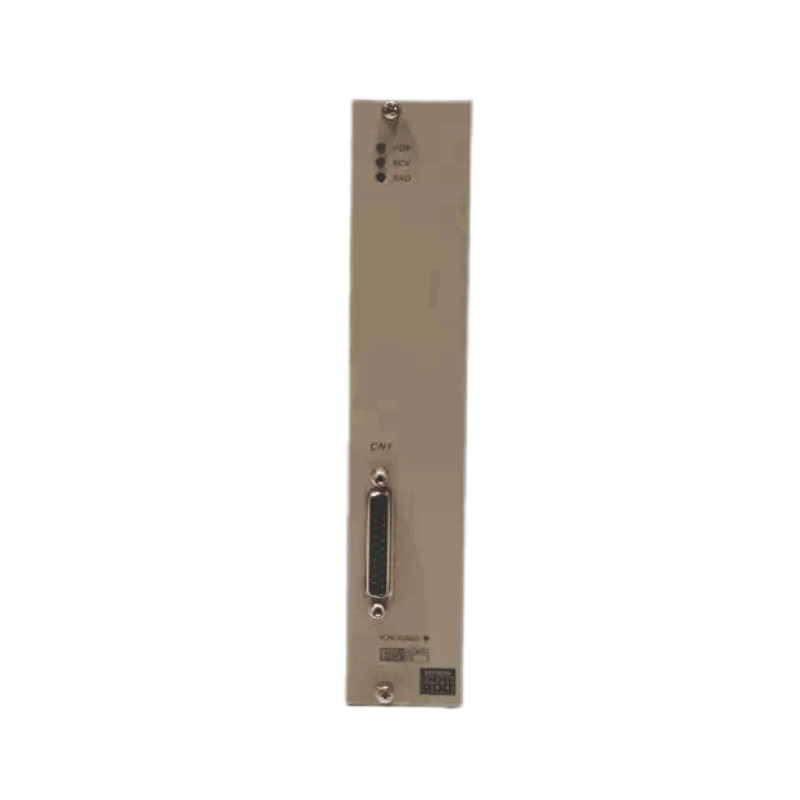

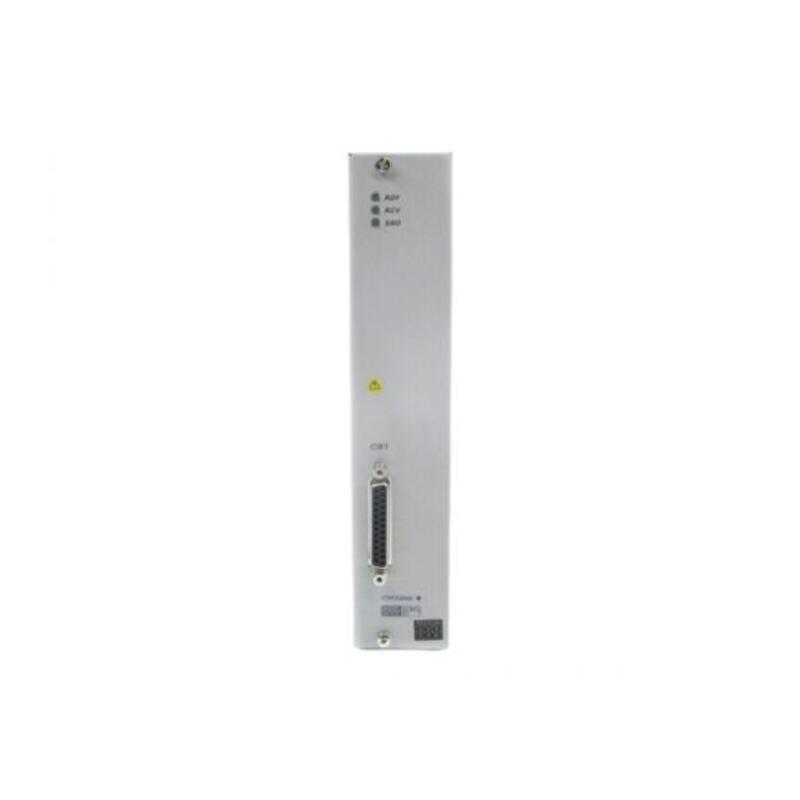

Yokogawa ACM11 Advanced Communication Module – Versatile Connectivity Solution for Industrial Control Systems

Applications

The Yokogawa ACM11 Advanced Communication Module is ideal for a wide range of industrial applications that require high-speed, reliable communication, including:

• Power Plants: Seamless data exchange between control systems and field devices to monitor plant performance.

• Manufacturing Automation: Real-time communication between programmable logic controllers (PLCs), sensors, and actuators to optimize production processes.

• Water and Wastewater Treatment: Control and monitor the operation of pumps, valves, and other equipment using advanced communication protocols.

• Oil and Gas: Integration with various control and monitoring devices in upstream and downstream operations.

• Building Automation: Manage HVAC systems, lighting, and other building infrastructure with remote communication capabilities.

Advantages

• Multiple Protocols Supported: The ACM11 supports a wide variety of communication protocols, ensuring compatibility with most industrial devices.

• Seamless Integration: Easily integrates with existing Yokogawa and third-party control systems, ensuring smooth operation across your automation network.

• Flexible Mounting Options: The ACM11 can be mounted on a DIN rail or panel, offering installation flexibility in various environments.

• Reliable Data Transmission: The ACM11 offers high-speed data communication over Ethernet and serial ports, ensuring real-time data flow.

• Compact Design: Its small footprint allows for installation in space-constrained environments without compromising functionality.

Technical FAQs

1. What communication protocols are supported by the ACM11 module?

   • The ACM11 supports Modbus RTU, Modbus TCP, OPC, and Yokogawa proprietary protocols.

2. Can the ACM11 module be used with both Ethernet and serial devices?

   • Yes, the ACM11 supports both Ethernet (TCP/IP) and serial communication (RS-232, RS-485).

3. What is the power supply requirement for the ACM11?

   • The ACM11 requires a 24 VDC power supply.

4. What is the operating temperature range of the ACM11?

   • The module can operate within the temperature range of -20°C to 60°C (-4°F to 140°F).

5. What are the dimensions of the ACM11?

   • The ACM11 has dimensions of 5.5 inches in length, 3.2 inches in width, and 2.1 inches in height.

6. How much does the ACM11 module weigh?

   • The ACM11 weighs approximately 0.7 lbs (320 g).

7. What mounting options are available for the ACM11?

   • The ACM11 can be mounted on a DIN rail or directly to a panel, offering installation flexibility.

8. Can the ACM11 be used in hazardous environments?

   • The ACM11 is designed for industrial environments but is not specifically rated for hazardous locations. Appropriate enclosures may be required.

9. Does the ACM11 support data logging?

   • While the ACM11 focuses on communication and data exchange, integration with Yokogawa’s data acquisition systems allows for effective data logging.

10. Is the ACM11 compatible with other Yokogawa control devices?

• Yes, the ACM11 is fully compatible with other Yokogawa control systems, including PLCs and DCS systems, ensuring smooth integration.
