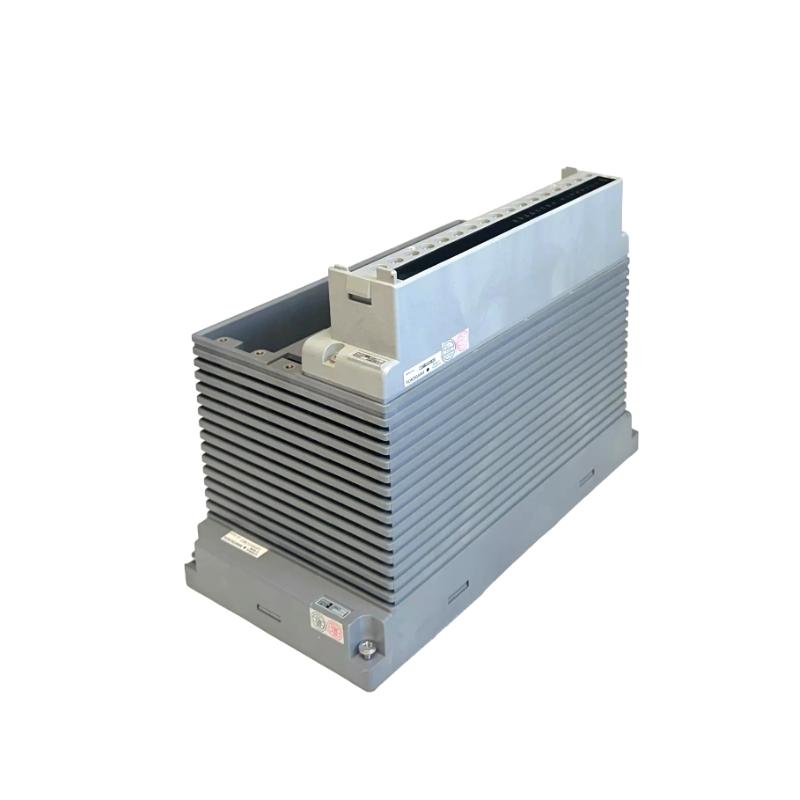

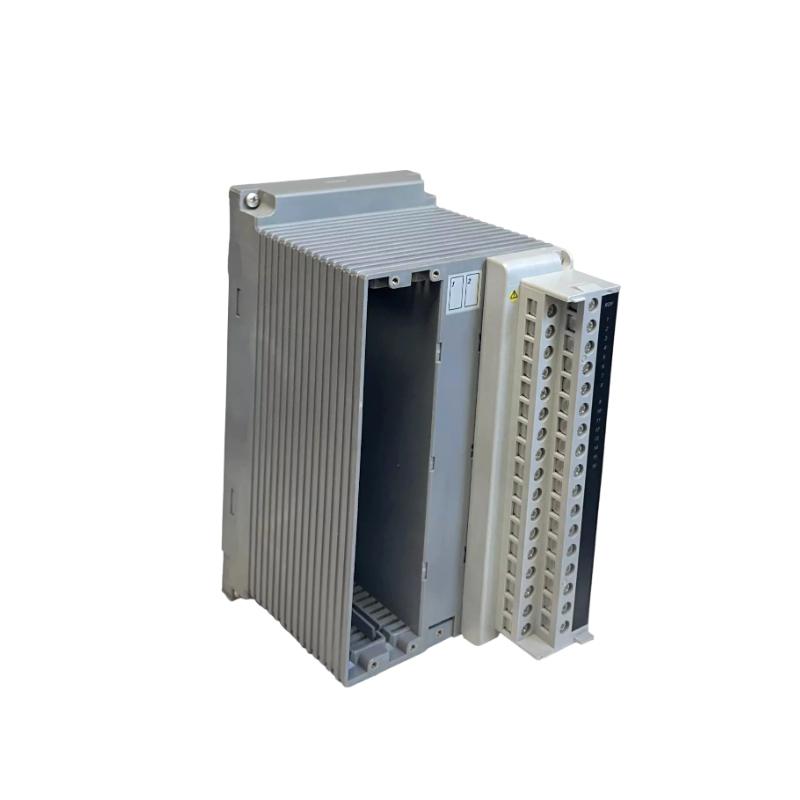

Yokogawa ADM11T Advanced Temperature I/O Module – Precision Temperature Monitoring for Industrial Control Systems

Applications

The Yokogawa ADM11T Advanced Temperature I/O Module excels in industries that demand high-precision temperature monitoring and control:

• Chemical Processing: Controls the temperature of reactors, mixers, and heat exchangers in chemical plants.

• Power Generation: Monitors temperatures in boilers, turbines, and other critical equipment in power plants.

• Manufacturing: Ensures accurate temperature measurement in processes such as metal forming, plastic molding, and food production.

• Oil & Gas: Used for temperature measurement in wellheads, pipelines, and refineries.

• Pharmaceuticals: Monitors environmental conditions in critical areas like cleanrooms and storage facilities.

Advantages

• High Accuracy: The ADM11T offers superior accuracy for both thermocouple and RTD inputs, ensuring reliable temperature data for critical processes.

• Wide Input Compatibility: Supports multiple temperature sensor types (thermocouples and RTDs), making it flexible and adaptable to different applications.

• Fast Signal Conversion: With a conversion speed of 250 ms per channel, the ADM11T delivers real-time data with minimal lag, which is essential for fast-moving processes.

• Flexible Mounting: The module can be easily mounted on a DIN rail or directly to a panel, offering versatility in various industrial setups.

• Compact Design: Despite its high functionality, the ADM11T maintains a small form factor, making it ideal for space-limited environments.

Technical FAQs

1. What temperature sensors are supported by the ADM11T module?

   • The ADM11T supports thermocouples (Types J, K, T, E, R, S, B, N) and RTDs (PT100, PT1000).

2. What is the accuracy of the ADM11T temperature module?

   • The module offers ±0.1% accuracy for thermocouple inputs and ±0.2% accuracy for RTD inputs.

3. What is the input voltage range for thermocouples and RTDs?

   • The thermocouple input voltage range is ±100 mV, and the RTD input range is 0 to 1000 ohms.

4. How many channels does the ADM11T have?

   • The ADM11T has 16 temperature input channels.

5. What is the power supply requirement for the ADM11T?

   • The module operates on a 24 VDC power supply.

6. What is the signal conversion speed of the ADM11T?

   • The conversion speed is 250 ms per channel.

7. Can the ADM11T be used in high-temperature environments?

   • The ADM11T operates within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for most industrial environments, but it is not designed for extreme temperatures.

8. What is the size of the ADM11T module?

   • The ADM11T measures 5.5 inches in length, 3.5 inches in width, and 2.2 inches in height.

9. Can I use the ADM11T with both Yokogawa and third-party systems?

   • Yes, the ADM11T is compatible with both Yokogawa systems and third-party devices that support Modbus RTU or Yokogawa’s proprietary protocol.

10. What is the mounting option for the ADM11T?

• The ADM11T can be mounted on a DIN rail or directly onto a panel, offering flexibility for installation.
