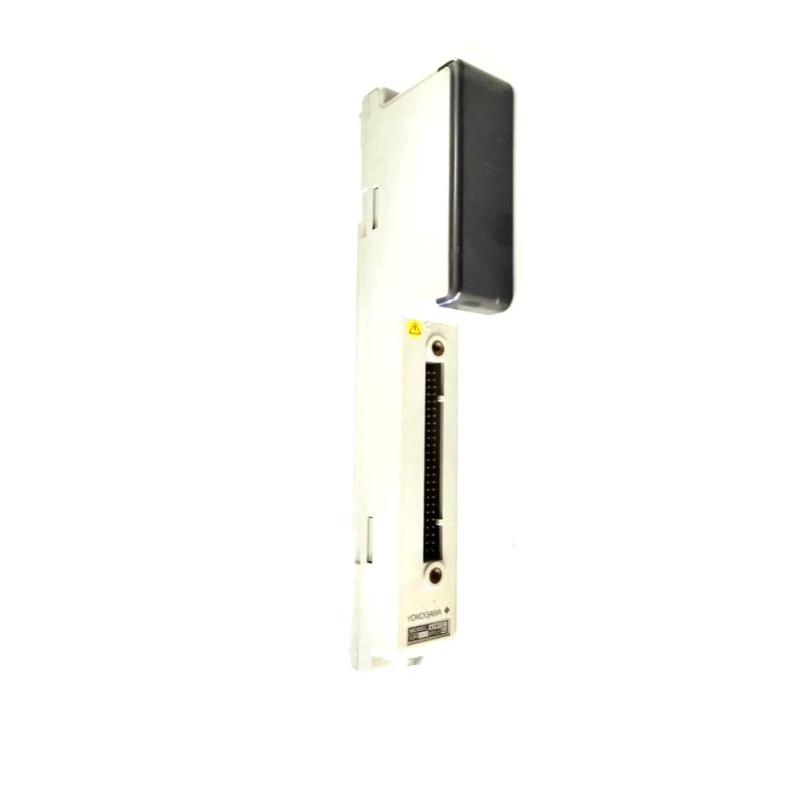

Yokogawa ADM12C Universal I/O Module – High-Performance Data Acquisition for Critical Industrial Applications

Applications

The Yokogawa ADM12C Universal I/O Module is highly versatile and suitable for a wide array of applications that require precise and reliable data acquisition:

• Manufacturing Automation: Monitors and controls production lines, handling various analog and digital sensors for optimal performance.

• Power Plants: Facilitates critical measurements in turbines, boilers, and cooling systems for efficient power generation.

• Water Treatment: Controls the monitoring of water quality, flow rates, and chemical dosing in purification plants.

• Oil & Gas: Used for monitoring temperatures, pressures, and flow rates in drilling operations, refineries, and pipeline systems.

• Chemical Processing: Controls reactors, mixers, and distillation columns by providing real-time data from multiple field devices.

• Building Automation: Efficiently controls environmental systems, including HVAC, lighting, and other infrastructure in commercial and industrial buildings.

Advantages

• Universal I/O Support: The ADM12C module supports both analog and digital I/O, as well as RTD and thermocouple inputs, offering extensive flexibility for various industrial processes.

• High Accuracy: With precise signal processing and high measurement accuracy, the ADM12C ensures reliable and consistent data acquisition.

• Scalable and Modular Design: The ADM12C’s modular architecture allows easy expansion to accommodate growing system requirements and new technologies.

• Robust Performance: The module can handle harsh industrial conditions with an operating temperature range of -20°C to 60°C, making it suitable for a wide range of environments.

• Seamless Integration: The ADM12C integrates easily with other Yokogawa systems (such as PLCs, DCS, and SCADA systems) and third-party devices via Modbus RTU and OPC, ensuring smooth operation in complex control networks.

Technical FAQs

1. What types of inputs are supported by the ADM12C module?

   • The ADM12C supports analog (voltage, current), digital, RTD, and thermocouple inputs (including types J, K, T, R, and S).

2. What output types does the ADM12C support?

   • The ADM12C supports analog outputs (voltage, current) and digital outputs (discrete, relay).

3. What is the signal conversion speed of the ADM12C?

   • The module has a conversion speed of 250 ms for both analog and digital inputs and outputs.

4. How many input/output channels are available in the ADM12C?

   • The ADM12C provides 16 channels, which can be configured for either analog or digital I/O.

5. What is the power supply requirement for the ADM12C?

   • The ADM12C operates on a 24 VDC power supply.

6. What is the size of the ADM12C module?

   • The ADM12C measures 6.2 inches in length, 3.6 inches in width, and 2.3 inches in height.

7. Can the ADM12C be used in extreme industrial environments?

   • The ADM12C operates in a temperature range of -20°C to 60°C (-4°F to 140°F), suitable for most industrial conditions.

8. What communication protocols are supported by the ADM12C?

   • The ADM12C supports Yokogawa proprietary protocol, Modbus RTU, and OPC for seamless communication with other systems.

9. Is the ADM12C compatible with Yokogawa’s DCS and PLC systems?

   • Yes, the ADM12C is fully compatible with Yokogawa systems such as CENTUM VP, RX3i PLC, and other Yokogawa automation solutions.

10. What mounting options are available for the ADM12C?

• The ADM12C can be mounted on a DIN rail or directly onto a panel, offering installation flexibility.
