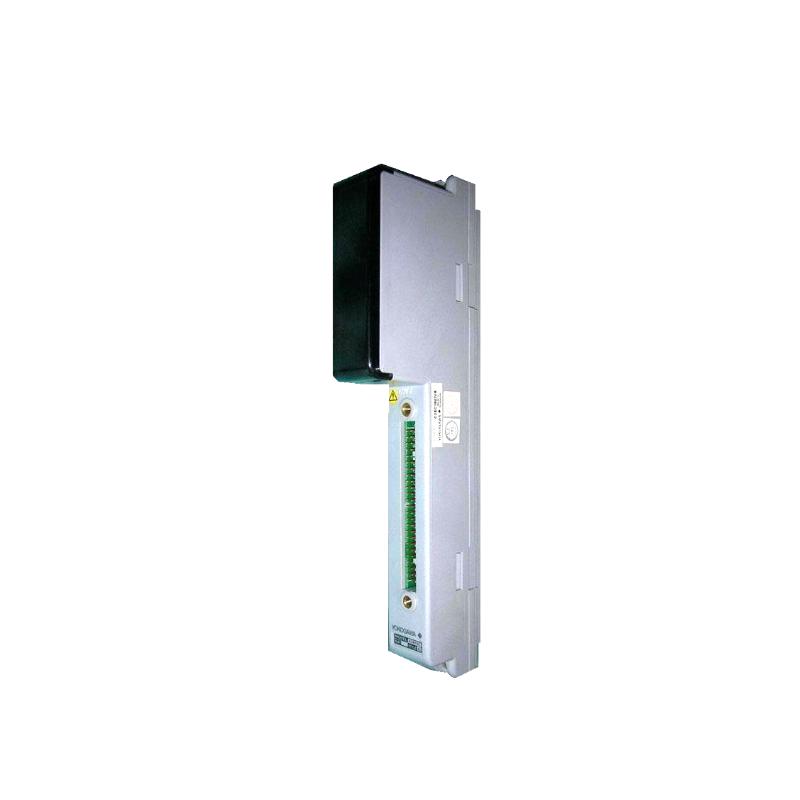

Yokogawa ADM12T Universal I/O Module – Precision Data Acquisition for Advanced Temperature Control Systems

Applications

The Yokogawa ADM12T Universal I/O Module is ideal for applications that require highly accurate temperature measurements and control. Some of the key industries and processes where it is used include:

• Power Generation: The ADM12T provides real-time monitoring of turbine and boiler temperatures to ensure optimal performance and safety in power plants.

• Oil & Gas: Used to monitor the temperature of pipelines, refineries, and drilling operations, helping to maintain safe and efficient production.

• Chemical Processing: Controls reactor and distillation column temperatures, as well as other critical measurements in chemical plants.

• HVAC Systems: Provides temperature regulation for building automation and climate control systems, improving energy efficiency and user comfort.

• Water and Wastewater Treatment: Helps monitor and control temperature in filtration and chemical dosing processes, ensuring water quality and safety.

• Manufacturing: Ideal for temperature-sensitive processes in manufacturing industries such as automotive, food production, and electronics assembly.

Advantages

• High-Precision Temperature Measurement: The ADM12T is specifically designed for temperature control and monitoring, offering accurate measurements for both thermocouple and RTD inputs.

• Flexible I/O Configuration: Supports 16 channels, configurable for analog and digital I/O, and handles a wide variety of temperature sensors, making it suitable for diverse applications.

• Fast Signal Conversion: With a signal conversion speed of 250 ms per channel, the ADM12T enables real-time monitoring and fast response to changes in temperature.

• Seamless Integration: The ADM12T integrates easily with Yokogawa’s larger automation systems, including PLCs, DCS, and SCADA systems, ensuring smooth and efficient control operations.

• Compact and Reliable: Despite its powerful capabilities, the ADM12T features a compact design, making it easy to install in space-limited control panels or enclosures.

• Durability: Designed to operate in harsh environments, the ADM12T can withstand temperatures ranging from -20°C to 60°C, making it suitable for challenging industrial conditions.

Technical FAQs

1. What types of temperature sensors are supported by the ADM12T module?

   • The ADM12T supports thermocouples (Types J, K, T, R, S, N, B, E) and RTDs (PT100, PT1000).

2. What is the accuracy of the ADM12T module for temperature measurements?

   • The ADM12T offers ±0.5% accuracy for thermocouple inputs and ±0.2% for RTD inputs.

3. How many channels are available on the ADM12T?

   • The ADM12T provides 16 temperature input/output channels.

4. What is the signal conversion speed of the ADM12T?

   • The ADM12T has a signal conversion speed of 250 ms per channel.

5. What power supply is required for the ADM12T?

   • The ADM12T operates on a 24 VDC power supply.

6. Can the ADM12T be used with both Yokogawa and third-party systems?

   • Yes, the ADM12T supports communication via Modbus RTU and OPC, allowing it to integrate with other third-party systems.

7. What is the size of the ADM12T module?

   • The ADM12T has dimensions of 6.3 inches in length, 3.7 inches in width, and 2.4 inches in height.

8. What is the operating temperature range of the ADM12T?

   • The ADM12T can operate in temperatures ranging from -20°C to 60°C (-4°F to 140°F).

9. What mounting options are available for the ADM12T?

   • The ADM12T can be mounted on a DIN rail or directly onto a panel, offering flexibility for different installation setups.

10. Is the ADM12T suitable for use in industrial environments?

• Yes, the ADM12T is built to handle the rigors of industrial environments, with a rugged design and the ability to operate in harsh conditions.
