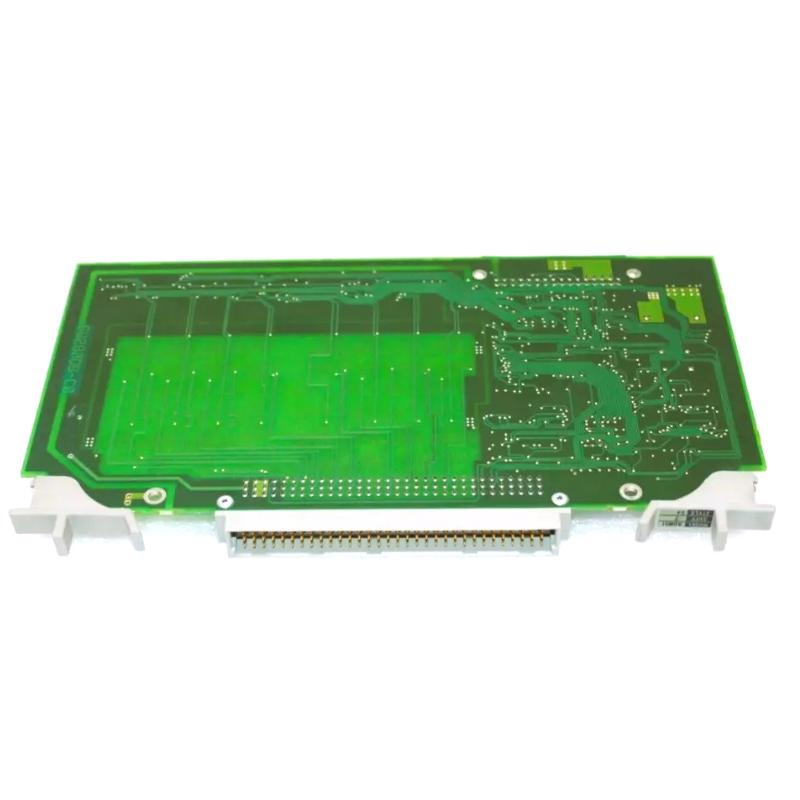

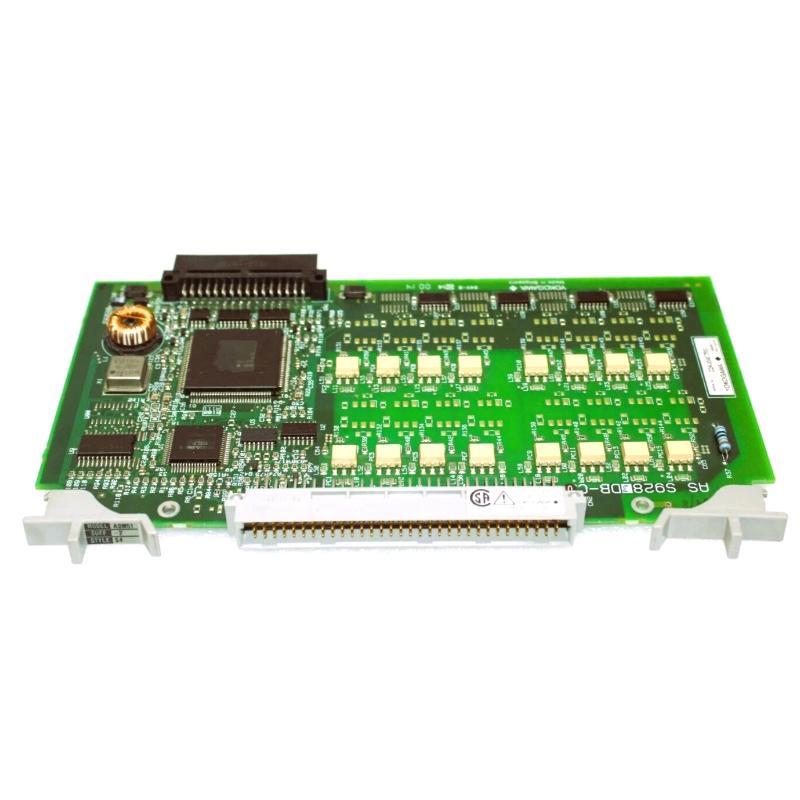

Yokogawa ADM51 Universal I/O Module – High-Precision Data Acquisition for Industrial Automation

Applications

The Yokogawa ADM51 Universal I/O Module is ideal for a wide range of industrial applications, providing real-time data acquisition and control:

• Power Generation: The ADM51 is used to monitor temperature, pressure, and flow in power plants, ensuring efficient energy generation and safe operations.

• Oil & Gas: The module helps monitor wellhead pressure, temperature, and flow rates in both upstream and downstream operations, optimizing production and maintaining safety.

• Chemical Processing: It provides critical data for process control in reactors, mixers, and distillation columns, ensuring precise chemical reactions and reducing downtime.

• Manufacturing Automation: In industrial manufacturing systems, the ADM51 controls complex machinery, tracks temperature and pressure, and ensures consistent production rates.

• Water and Wastewater Treatment: Monitors water quality and flow in treatment plants, facilitating efficient operation and environmental compliance.

• HVAC and Building Automation: Controls heating, ventilation, and air conditioning systems for energy efficiency and comfort in large buildings or campuses.

Advantages

• Universal I/O Flexibility: The ADM51 supports a wide range of input and output types, including analog, digital, RTD, and thermocouple inputs, making it adaptable to various industrial needs.

• High Accuracy: The module provides ±0.1% accuracy for analog inputs and ±0.2% for RTDs, ensuring precise measurements in demanding control applications.

• Fast Signal Conversion: The ADM51 offers a fast signal conversion speed of 250 ms per channel, allowing for real-time monitoring and immediate response to changes in process conditions.

• Seamless Integration: It integrates effortlessly with Yokogawa’s DCS, PLCs, and SCADA systems, ensuring a unified automation platform for complex processes.

• Durable and Reliable: Designed for harsh industrial environments, the ADM51 operates within a wide temperature range of -20°C to 60°C and is built to withstand challenging operating conditions.

• Compact and Efficient: Despite offering high functionality, the ADM51 is designed with a compact form factor, making it suitable for space-constrained installations.

Technical FAQs

1. What types of inputs does the ADM51 module support?

   • The ADM51 supports analog (voltage, current), digital (discrete), RTD, and thermocouple inputs (Types J, K, T, R, S, N, B, E).

2. What is the accuracy of the ADM51 for temperature measurements?

   • The module provides ±0.1% accuracy for analog inputs, ±0.2% for RTDs, and ±0.5% for thermocouples.

3. How many channels are available on the ADM51?

   • The ADM51 features 16 configurable input/output channels that can be used for analog or digital I/O.

4. What is the signal conversion speed of the ADM51?

   • The signal conversion speed is 250 ms per channel for both analog and digital I/O signals.

5. What power supply does the ADM51 require?

   • The ADM51 operates on a 24 VDC power supply.

6. Can the ADM51 integrate with other Yokogawa systems?

   • Yes, the ADM51 is fully compatible with Yokogawa DCS, PLCs, and SCADA systems for streamlined system control.

7. What is the operating temperature range for the ADM51?

   • The ADM51 can operate in temperatures ranging from -20°C to 60°C (-4°F to 140°F).

8. What is the size of the ADM51 module?

   • The module measures 6.5 inches in length, 4.0 inches in width, and 2.6 inches in height.

9. What mounting options are available for the ADM51?

   • The ADM51 can be mounted on a DIN rail or directly onto a panel, offering flexibility for installation.

10. Is the ADM51 suitable for use in industrial environments?

• Yes, the ADM51 is designed for use in demanding industrial environments, offering reliable performance in harsh conditions.
