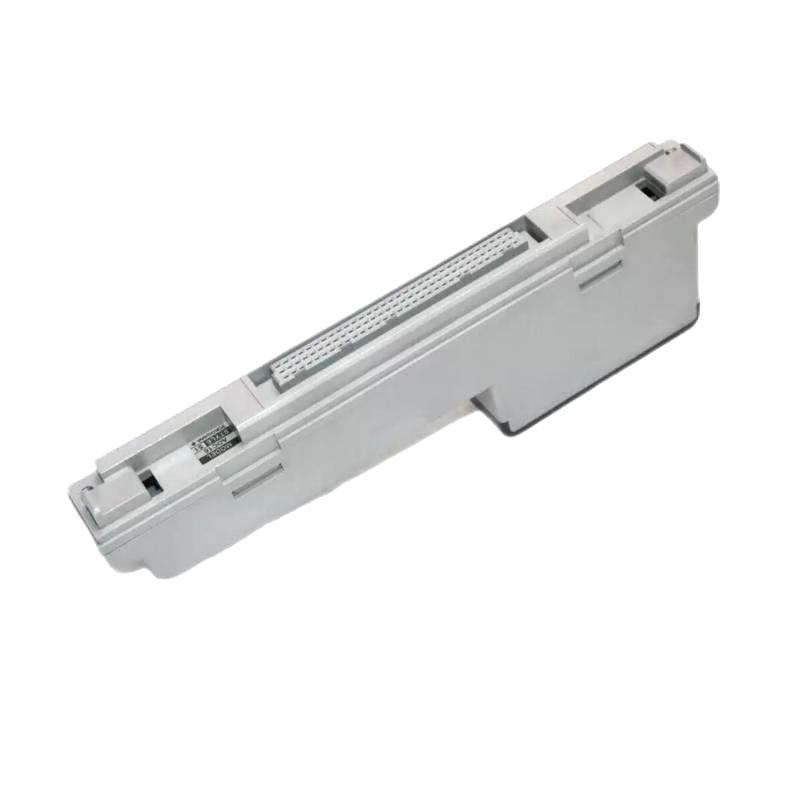

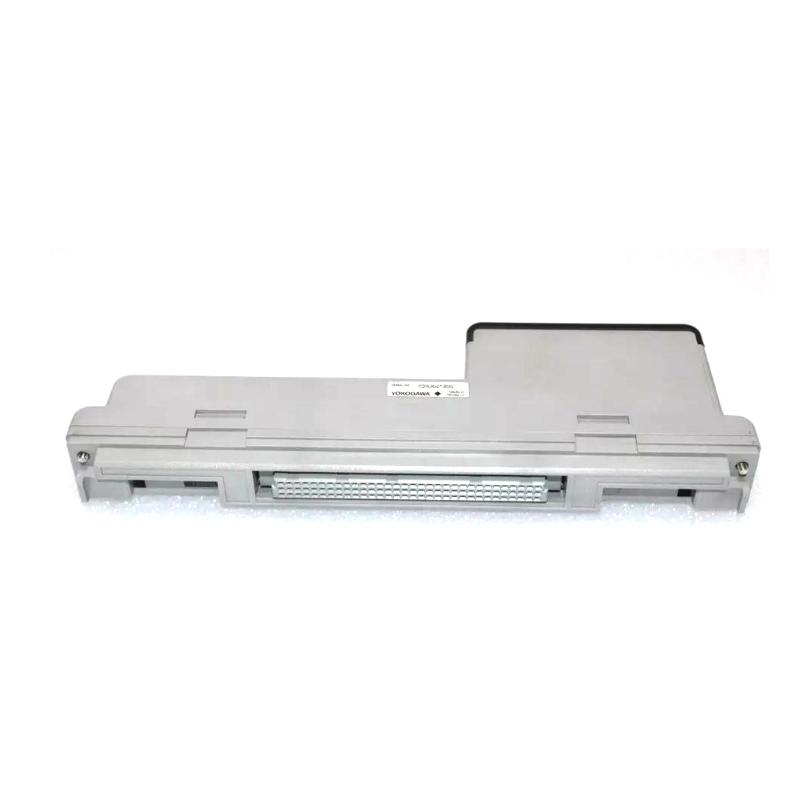

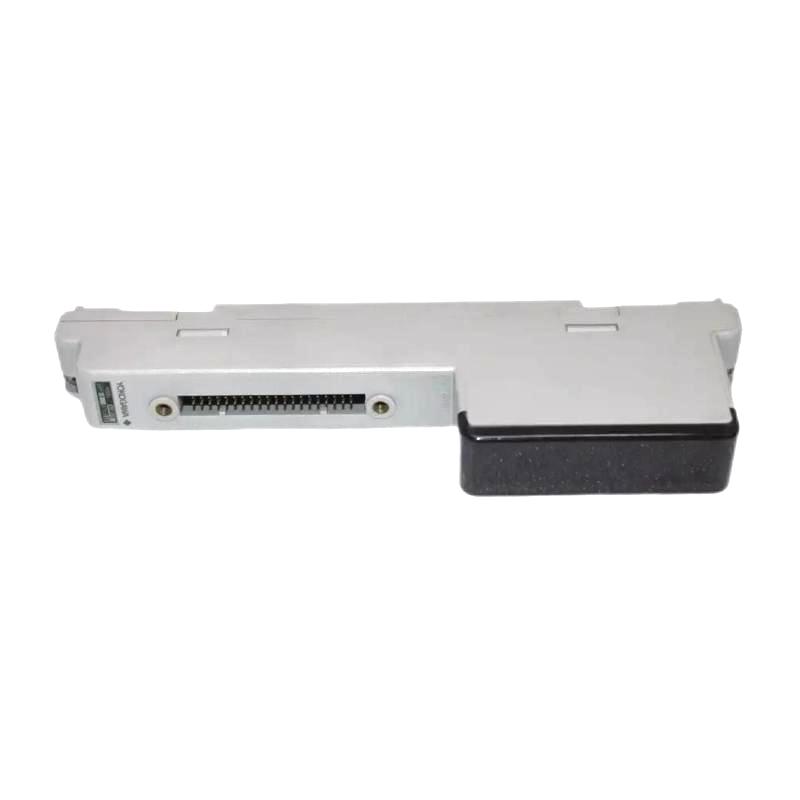

The Yokogawa ADM51C Universal I/O Module is designed to meet the demanding requirements of modern industrial automation systems, offering flexible data acquisition and control in critical applications. This module is ideal for industries like power generation, oil & gas, chemical processing, and manufacturing, where precise measurement and reliable control are paramount. The ADM51C supports a wide range of input and output types, including analog, digital, RTD, and thermocouple sensors, providing unparalleled versatility in one compact, high-performance unit.

With its high-speed data processing capabilities, seamless integration with Yokogawa’s control systems, and enhanced accuracy, the ADM51C ensures real-time monitoring and optimization of complex processes. It provides users with the ability to manage and control systems more efficiently, reducing downtime and enhancing operational safety.

Technical Specifications

Model: ADM51C
Type: Universal I/O Module
Number of Channels: 16 configurable input/output channels
Input Types:
- Analog (Voltage, Current)
- Digital (Discrete)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Output Types:
- Analog (Voltage, Current)
- Digital (Discrete, Relay)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.5 x 4.0 x 2.6 inches (165 x 102 x 66 mm)
Weight: 1.3 lbs (590 g)
Signal Conversion Speed: 250 ms per channel (for analog and digital I/O)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A flexible and modular PLC that integrates well with the ADM51C for scalable industrial automation solutions.
Yokogawa YS1700: Precision transmitters for temperature, pressure, and flow measurement that can complement the ADM51C in industrial applications.
Yokogawa ADMAG AXF: A magnetic flowmeter designed for high-precision flow measurement in challenging process environments.
Yokogawa DPharp EJA: Digital pressure transmitters for accurate and reliable pressure measurement in critical systems.

Popular Yokogawa Models

Yokogawa CENTUM VP: A comprehensive Distributed Control System (DCS) for process automation that integrates well with the ADM51C for efficient operation management.
Yokogawa RX3i PLC: High-performance PLC designed for advanced automation tasks in industries like manufacturing and process control.
Yokogawa YS1000: Smart process transmitters for precise temperature, pressure, and flow measurements in complex processes.
Yokogawa EJX Series: High-accuracy transmitters that ensure precise measurements in critical industrial applications such as temperature, pressure, and flow.

Applications

The Yokogawa ADM51C Universal I/O Module is designed for high-performance applications in industries that require precise, real-time data acquisition and process control. Some of the primary applications include:

Power Generation: Used for monitoring critical parameters like turbine temperatures, pressure, and flow rates to optimize power plant operations and ensure safety.
Oil & Gas: Monitors various process variables such as temperature, pressure, and flow, ensuring safe and efficient production in upstream and downstream operations.
Chemical Processing: Tracks parameters in chemical reactors, distillation columns, and mixing systems to ensure the smooth and safe operation of chemical processes.
Manufacturing Automation: Controls production line processes, including temperature, pressure, and flow measurements, improving product quality and reducing downtime.
Water and Wastewater Treatment: Monitors water quality and flow in treatment plants, optimizing performance and maintaining compliance with environmental regulations.
HVAC and Building Automation: Provides real-time control of temperature and humidity in large-scale HVAC systems, improving energy efficiency and occupant comfort.

Advantages

Flexible I/O Configuration: The ADM51C supports a wide variety of sensors, including analog (voltage, current), digital (discrete), RTD, and thermocouple inputs, making it ideal for diverse industrial applications.
Fast Signal Conversion: With a signal conversion speed of 250 ms per channel, the ADM51C ensures real-time monitoring and quick responses to changes in industrial processes.
High Accuracy: The module delivers ±0.1% accuracy for analog inputs, ±0.2% for RTDs, and ±0.5% for thermocouples, ensuring precise data acquisition and control.
Seamless Integration: The ADM51C is fully compatible with Yokogawa’s DCS, PLCs, and SCADA systems, making it a vital component for process optimization and automation.
Durability and Reliability: Built to withstand harsh industrial environments, the ADM51C operates across a wide temperature range of -20°C to 60°C, ensuring reliable performance even under challenging conditions.
Compact Design: Despite its high performance, the ADM51C features a compact design, making it suitable for installation in control panels with limited space.

Technical FAQs

What types of sensors can the ADM51C support?
- The ADM51C supports analog (voltage, current), digital (discrete), RTD, and thermocouple sensors (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADM51C module for temperature measurements?
- The module provides ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.
How many channels are available on the ADM51C?
- The ADM51C offers 16 configurable input/output channels that can handle both analog and digital signals.
What is the signal conversion speed of the ADM51C?
- The ADM51C processes data at 250 ms per channel for both analog and digital I/O signals, providing real-time system monitoring.
What power supply is required for the ADM51C?
- The ADM51C operates on a 24 VDC power supply.
Can the ADM51C integrate with other Yokogawa systems?
- Yes, the ADM51C integrates seamlessly with Yokogawa’s DCS, PLCs, and SCADA systems, ensuring efficient process control and monitoring.
What is the operating temperature range of the ADM51C?
- The ADM51C operates in a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for various industrial environments.
What is the size of the ADM51C module?
- The ADM51C has dimensions of 6.5 inches in length, 4.0 inches in width, and 2.6 inches in height.
What mounting options are available for the ADM51C?
- The ADM51C can be mounted on a DIN rail or directly to a panel, offering flexibility in installation.
Is the ADM51C suitable for hazardous environments?
