Product Overview and Engineering Introduction

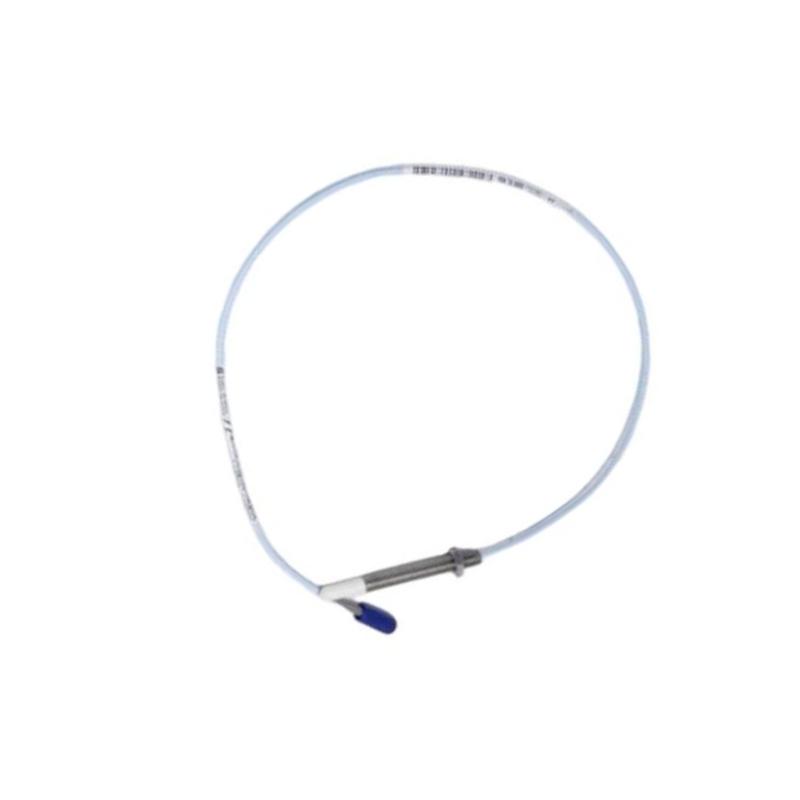

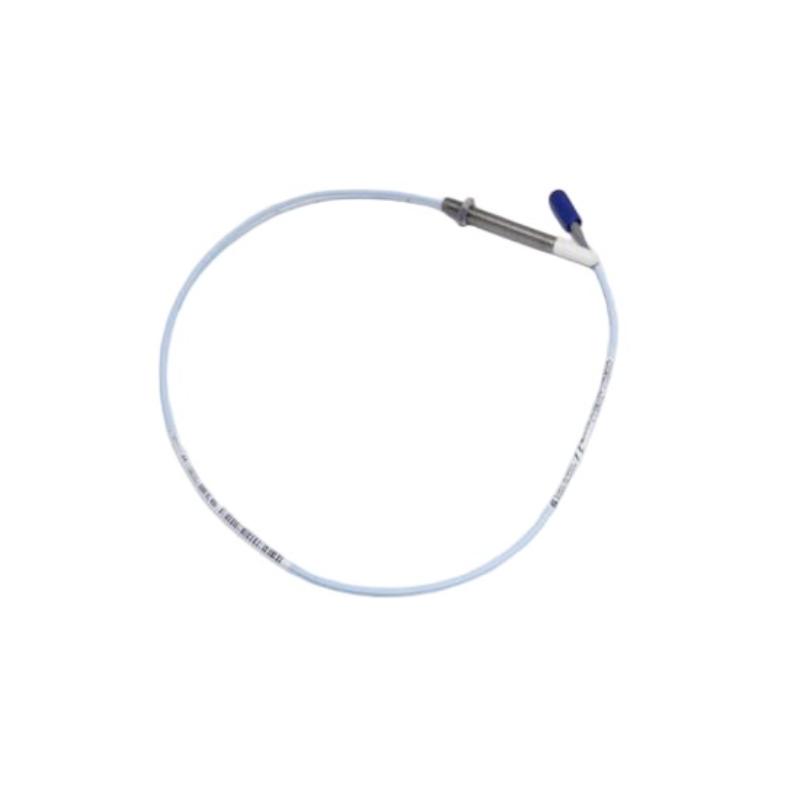

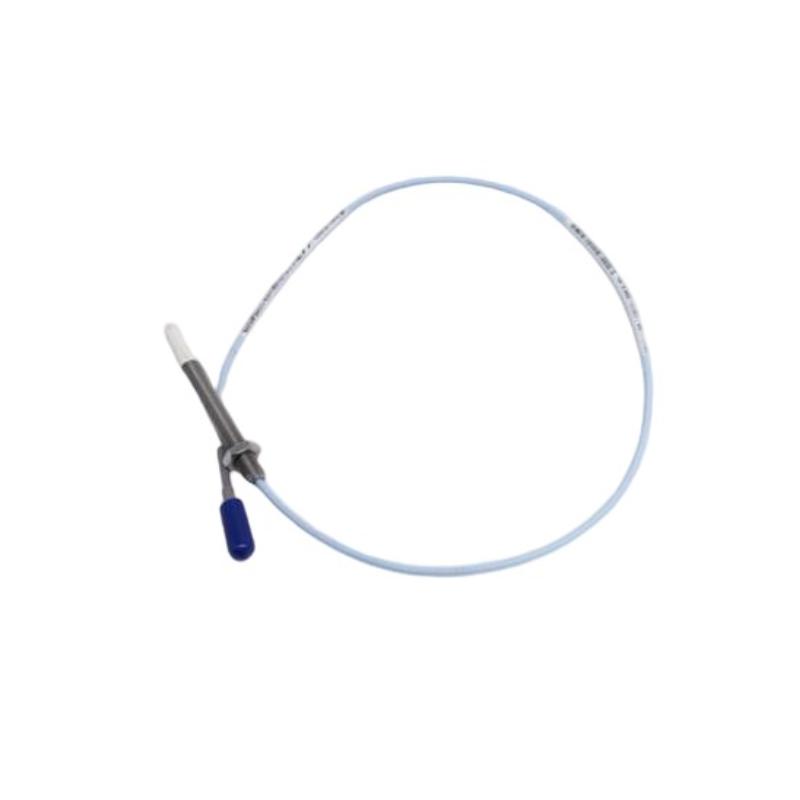

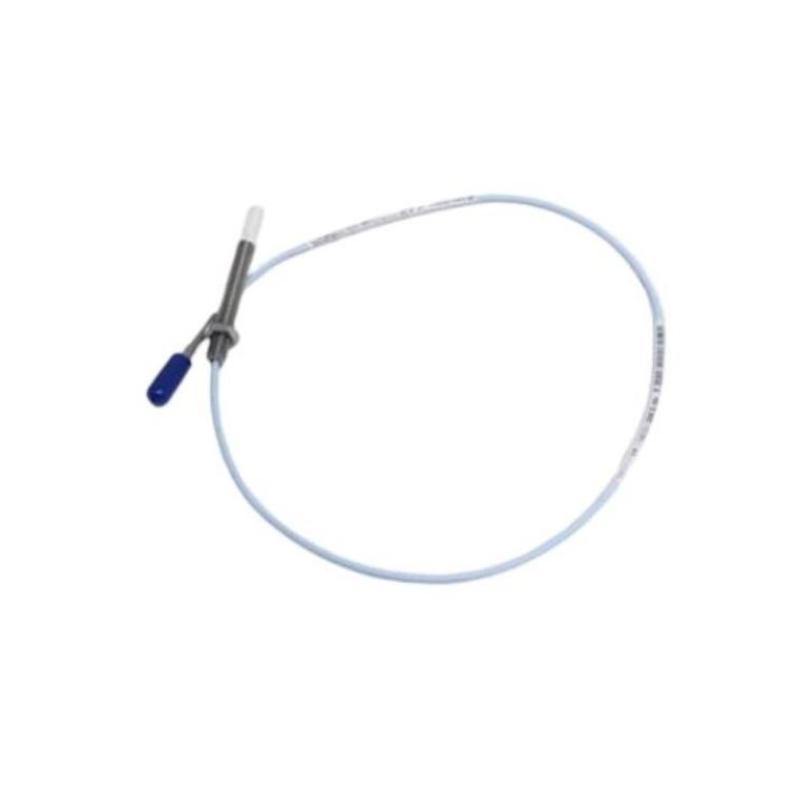

The Bently Nevada 330903-02-16-05-02-00 3300 NSv Proximity Probe is a precision sensing component developed for reliable machinery condition monitoring in compact industrial applications. It provides accurate shaft vibration and displacement measurement required for effective equipment protection and maintenance planning.

The 3300 NSv platform is designed to deliver dependable proximity sensing performance where installation space is limited. With its compact structure and 0.5-meter total length configuration, this probe provides practical flexibility for smaller machinery installations while maintaining consistent measurement quality.

For industrial facilities focused on improving equipment availability and reducing maintenance risks, the 330903-02-16-05-02-00 offers a reliable monitoring solution for critical rotating assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330903-02-16-05-02-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Type	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330903-00-11-05-02-05	3300 NSv Metric Proximity Probe with 0.5-meter configuration
Bently Nevada 330903-00-12-05-02-05	3300 NSv Metric Proximity Probe for compact machinery monitoring
Bently Nevada 330903-00-21-10-02-05	3300 NSv Metric Proximity Probe with 1-meter length configuration
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Compact Rotating Equipment Monitoring

The Bently Nevada 330903-02-16-05-02-00 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in rotating machinery applications where compact installation, stable performance, and reliable condition monitoring are essential. As part of the 3300 NSv proximity probe family, this sensor provides dependable non-contact measurement for machinery protection and predictive maintenance systems.

This metric proximity probe is suitable for applications involving gas turbines, compressors, pumps, motors, and auxiliary rotating equipment where space limitations require a compact sensing solution. Its optimized design enables engineers to install reliable shaft monitoring capability in challenging locations while maintaining accurate measurement performance.

Utilizing proven eddy current sensing technology, the 330903-02-16-05-02-00 delivers consistent vibration and position feedback, helping operators improve equipment diagnostics, minimize unexpected downtime, and enhance long-term machinery reliability.

Technical Advantages and Product Highlights

Feature	Description
Compact 3300 NSv Construction	Designed for installations requiring reduced sensor dimensions
Metric Probe Design	Supports metric-based rotating machinery monitoring applications
Non-Contact Measurement Technology	Provides accurate shaft monitoring without physical contact
Stable Eddy Current Performance	Delivers reliable vibration and displacement measurement signals
0.5-Meter Total Length	Suitable for compact equipment layouts and short installation distances
Machinery Protection Capability	Supports early detection of abnormal shaft movement and machine conditions

Technical FAQs

1. What is the primary application of the Bently Nevada 330903-02-16-05-02-00?
It is used for measuring shaft vibration and displacement in rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft position?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft target.

3. Why is the NSv series suitable for compact machinery?
The compact probe design allows installation in locations where available mounting space is limited.

4. What equipment can use this proximity probe?
It is commonly used on turbines, compressors, pumps, motors, and other industrial rotating equipment.

5. Does the proximity probe contact the rotating shaft?
No. The probe operates through non-contact electromagnetic measurement technology.

6. What type of signals does this probe provide?
It provides shaft vibration and relative position measurement signals for machinery monitoring systems.

7. How does this probe support predictive maintenance?
It provides continuous condition data that helps engineers identify developing equipment issues.

8. What affects the accuracy of proximity probe measurements?
Probe installation, gap adjustment, calibration, target surface condition, and monitoring system setup affect accuracy.

9. Can this proximity probe operate continuously?
Yes. It is designed for permanent installation in industrial machinery monitoring applications.

10. What is the benefit of using eddy current sensing technology?
It provides stable, repeatable, and fast-response measurement performance in demanding industrial environments.
