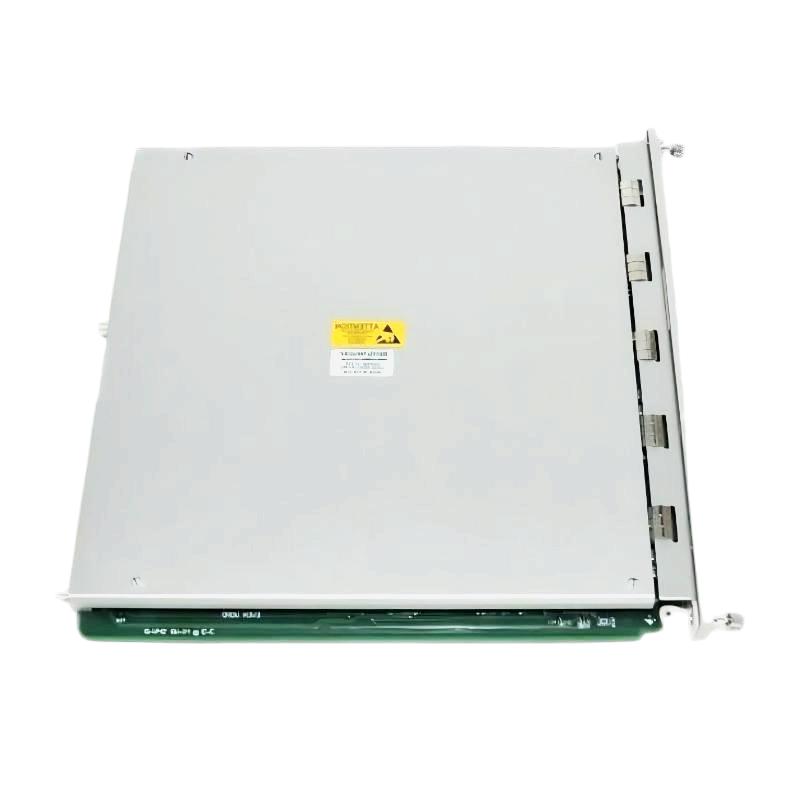

Bently Nevada 3500/42-01-00 Proximitor/Seismic Monitor Module

Where It Excels in Industrial Use

• Comprehensive Rotating Machinery Vibration Protection:
The Bently Nevada 3500/42-01-00 Proximitor/Seismic Monitor Module is designed to provide continuous vibration and position monitoring for critical rotating equipment. It processes proximity and seismic transducer signals to deliver reliable machine condition information for protection and predictive maintenance applications.

• Turbines, Compressors, and Generator Monitoring:
This module is widely applied in steam turbines, gas turbines, compressors, pumps, and generators where accurate monitoring of shaft vibration, casing vibration, and machine displacement is essential for improving operational safety and equipment availability.

• Multi-Parameter Machinery Diagnostics:
The 3500/42-01-00 supports multiple monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, and shaft absolute measurements, making it suitable for complex rotating equipment monitoring systems.

• Industrial Condition Monitoring Networks:
Integrated into the Bently Nevada 3500 Machinery Protection System, the module provides operators and maintenance teams with essential machine health data, helping identify developing mechanical issues before they lead to costly downtime.

Key Strengths at a Glance

• Four-Channel Proximitor/Seismic Monitoring:
Provides four independent monitoring channels capable of accepting inputs from proximity transducers and seismic transducers for comprehensive vibration analysis.

• Flexible Channel Configuration:
Each channel can be configured through 3500 Rack Configuration Software for different measurement requirements, allowing engineers to adapt monitoring functions without changing hardware.

• Advanced Alarm Processing:
The module continuously compares measured parameters against user-programmable Alert and Danger alarm setpoints, supporting early detection of abnormal machinery conditions.

• Broad Measurement Capability:
Supports radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, and circular acceptance region monitoring functions.

• Reliable 3500 System Integration:
Designed for use within the Bently Nevada 3500 platform, the module works together with Keyphasor, communication, relay, and interface modules to create a complete machinery protection solution.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/42-01-00 module?
It monitors vibration and position parameters by processing signals from proximity and seismic transducers within the 3500 Machinery Protection System.

2. How many channels does the 3500/42-01-00 provide?
The module provides four independent monitoring channels.

3. What types of sensors can be connected to this module?
It supports compatible proximity transducers, seismic transducers, and Velomitor sensor inputs.

4. Can the module monitor radial shaft vibration?
Yes. It can be configured for radial vibration monitoring applications.

5. Can this module measure casing vibration?
Yes. When connected with suitable seismic transducers, it can monitor casing vibration and related velocity or acceleration measurements.

6. What monitoring parameters can be configured on this module?
It supports radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, and circular acceptance region functions.

7. Does the 3500/42-01-00 directly control machinery shutdown?
The module provides measurement processing and alarm information, while shutdown actions depend on the complete 3500 protection system configuration.

8. How are the channels configured?
Channels are configured using compatible Bently Nevada 3500 Rack Configuration Software.

9. Can this module replace a standard vibration monitor in a 3500 rack?
It can replace compatible 3500 vibration monitoring modules when the sensor type, configuration, and application requirements match.

10. What should be checked before installation or replacement?
Engineers should confirm rack compatibility, sensor type, I/O configuration, firmware requirements, and existing alarm settings.
