Introduction

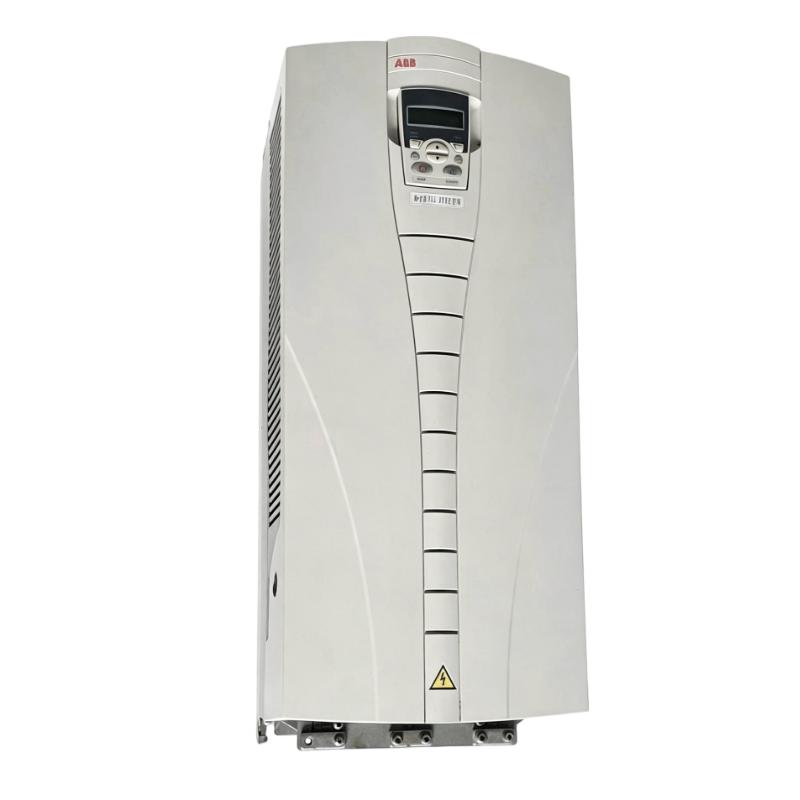

The ABB ACS550-01-246A-4 Frequency Converter is a powerful AC drive solution developed for industrial applications requiring reliable control of large motor systems. Part of the well-established ACS550 family, this frequency converter combines advanced motor management technology with a practical design that simplifies installation and operation.

With its high output capability and flexible control functions, the ACS550-01-246A-4 helps improve equipment performance while maintaining stable operation in demanding industrial environments. It is engineered to support applications where efficiency, reliability, and long service life are key priorities.

For automation engineers, machine builders, and industrial operators, this frequency converter provides a dependable platform for optimizing motor-driven processes and improving overall system productivity.

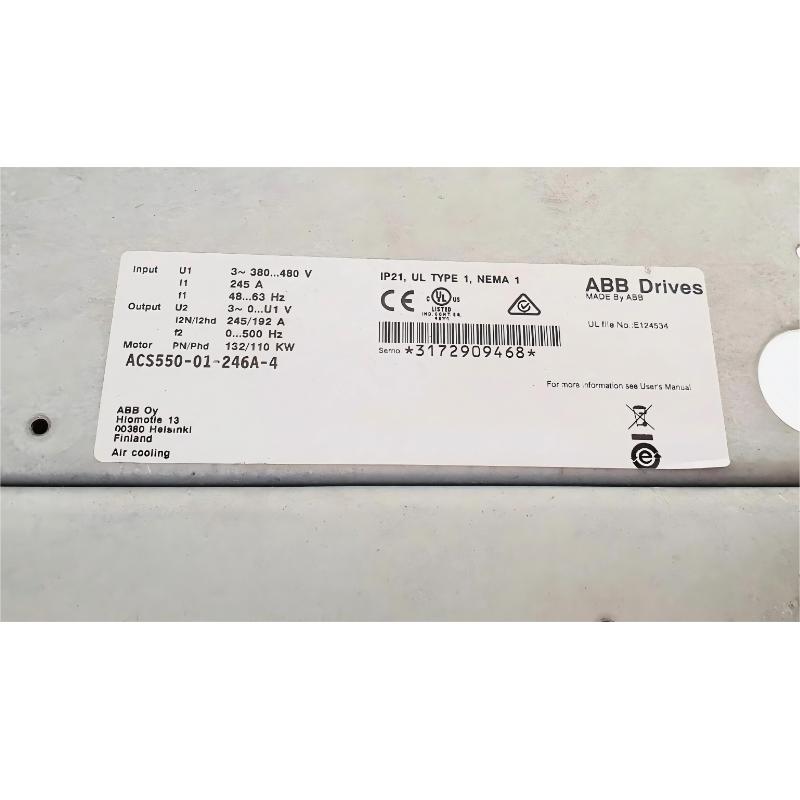

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS550-01-246A-4
Product ID	3AUA0000014490-D
Drive Series	ACS550
Module Type	Frequency Converter Module
Rated Output Current	246A
Heavy Duty Output Current	192A
Input Voltage	380–480V AC
Input Phase	Three-phase
Rated Power	132 kW
Heavy Duty Power	110 kW
Frequency Range	47.5–63 Hz
Control Method	V/Hz Control, Sensorless Vector Control
Communication Interface	RS-485 Modbus
Mounting Type	Wall-mounted
Protection Class	IP21
Enclosure Type	NEMA Type 1
Operating Temperature	-15°C to +40°C
Dimensions (H × W × D)	955 × 350 × 420 mm
Weight	76 kg (167.55 lb)

Recommended Related Models

Model	Description
ABB ACS550-01-195A-4	High-power frequency converter for large industrial motors
ABB ACS550-01-290A-4	Higher-capacity ACS550 series drive for demanding applications
ABB ACS580-01-246A-4	Advanced generation frequency converter with enhanced control performance
ABB ACS880-01-246A-3	Premium industrial drive for complex motor control systems

Popular Related Models

Model	Description
ABB ACS550-01-045A-4	General-purpose industrial frequency converter
ABB ACS550-01-072A-4	Variable frequency drive for automation equipment
ABB ACS550-01-157A-4	Medium-high power AC drive solution
ABB ACS580-01-180A-4	Modern industrial frequency converter
ABB ACS880-01-169A-3	Advanced performance drive for industrial applications

Applications

The ABB ACS550-01-246A-4 Frequency Converter is a high-capacity industrial drive designed for advanced motor control applications where powerful output performance, energy efficiency, and operational reliability are required. With a rated output current of 246A, this frequency converter is engineered for large-scale motor systems used in demanding industrial environments.

This drive is widely suitable for applications including industrial pumps, ventilation systems, compressors, conveyors, water processing equipment, and heavy-duty machinery. Its precise speed control capability helps optimize motor performance, improve process stability, and reduce unnecessary energy consumption.

The ACS550-01-246A-4 provides a dependable solution for automation engineers and system integrators who need a robust frequency converter for continuous industrial operation and efficient motor management.

Advantages

The ABB ACS550-01-246A-4 delivers a combination of powerful performance, flexible control, and reliable operation, making it suitable for a wide range of industrial motor applications.

High Current Output: Supports high-power motors with a rated output current of 246A, providing excellent performance for demanding drive systems.
Energy Optimization: Adjusts motor speed according to operating conditions to improve efficiency and reduce unnecessary power consumption.
Advanced Motor Control: Provides accurate speed and torque management for smooth and stable motor operation.
Flexible Integration: Compatible with industrial automation systems, allowing convenient connection with PLCs and control networks.
Enhanced System Protection: Includes monitoring and protection functions to improve operational safety and equipment reliability.
Easy Commissioning: Simplifies installation, parameter adjustment, and maintenance through user-friendly configuration features.
Industrial Reliability: Designed for continuous-duty operation in manufacturing, infrastructure, and process automation environments.

Technical FAQs

1. What is the ABB ACS550-01-246A-4 Frequency Converter designed for?
It is designed for controlling the speed and performance of large three-phase AC motors in industrial applications.

2. What type of motors can be controlled by this frequency converter?
The ACS550-01-246A-4 is mainly used with three-phase induction motors commonly found in industrial equipment.

3. What control methods are available on this model?
It supports V/Hz control and sensorless vector control for improved motor response and performance.

4. Can the ACS550-01-246A-4 be integrated with PLC systems?
Yes. It can be connected with industrial automation systems through supported communication functions.

5. Is this model suitable for variable torque applications?
Yes. It is suitable for pumps, fans, compressors, and other applications where load changes require speed adjustment.

6. Does this frequency converter provide motor protection functions?
Yes. It includes protection features designed to monitor operation and help prevent system failures.

7. How are operating parameters configured on the drive?
Parameters can be adjusted through the control panel and software configuration functions.

8. Can this drive replace older industrial frequency converters?
Yes. It can be used in many system upgrade projects when electrical requirements and application conditions are compatible.

9. What communication functions are supported by the ACS550 series?
The drive supports standard industrial communication options for integration with automation systems.

10. What advantages does variable frequency control provide for industrial motors?
It improves speed regulation, reduces energy consumption, minimizes mechanical stress, and enhances overall system efficiency.
