Introduction

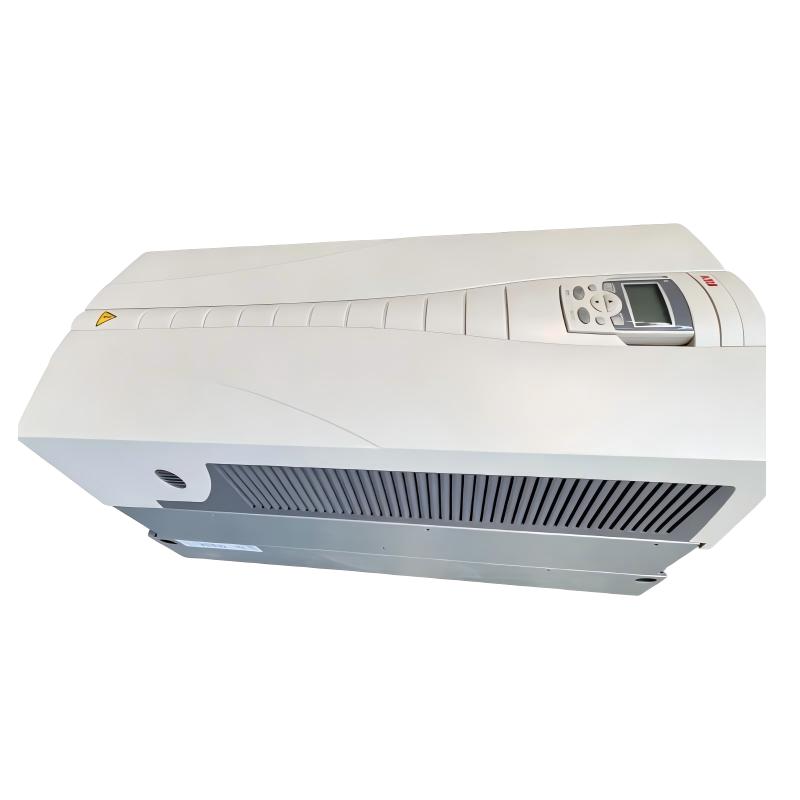

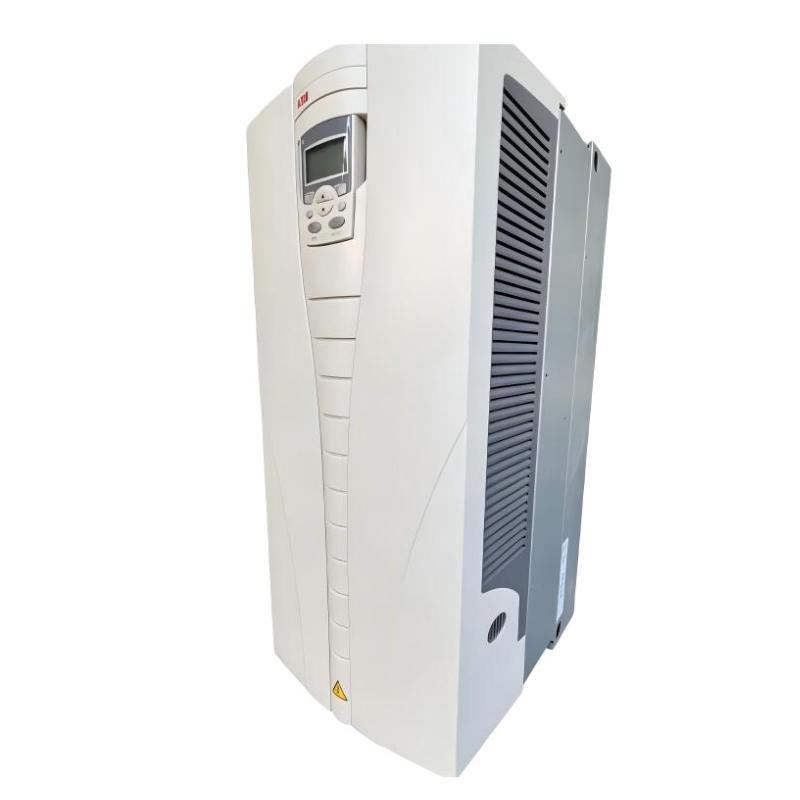

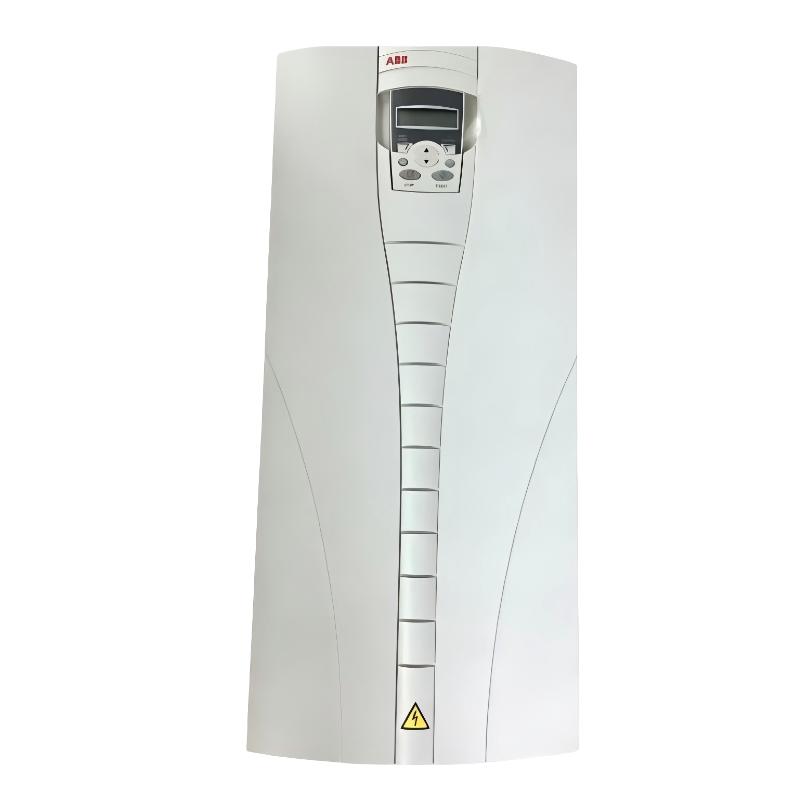

The ABB ACS550-01-290A-4 Frequency Converter is a powerful industrial AC drive developed to provide reliable and efficient control for high-capacity motor systems. As part of ABB’s trusted ACS550 series, it combines proven drive technology with flexible configuration options for a wide range of industrial applications.

Designed for demanding environments, this frequency converter delivers consistent motor performance while helping businesses improve operational efficiency and reduce energy consumption. Its advanced control functions allow precise management of motor speed and torque, supporting stable production processes and improved equipment reliability.

With its strong performance, durable design, and flexible application capability, the ACS550-01-290A-4 is a dependable solution for engineers and system integrators looking for a high-power industrial drive.

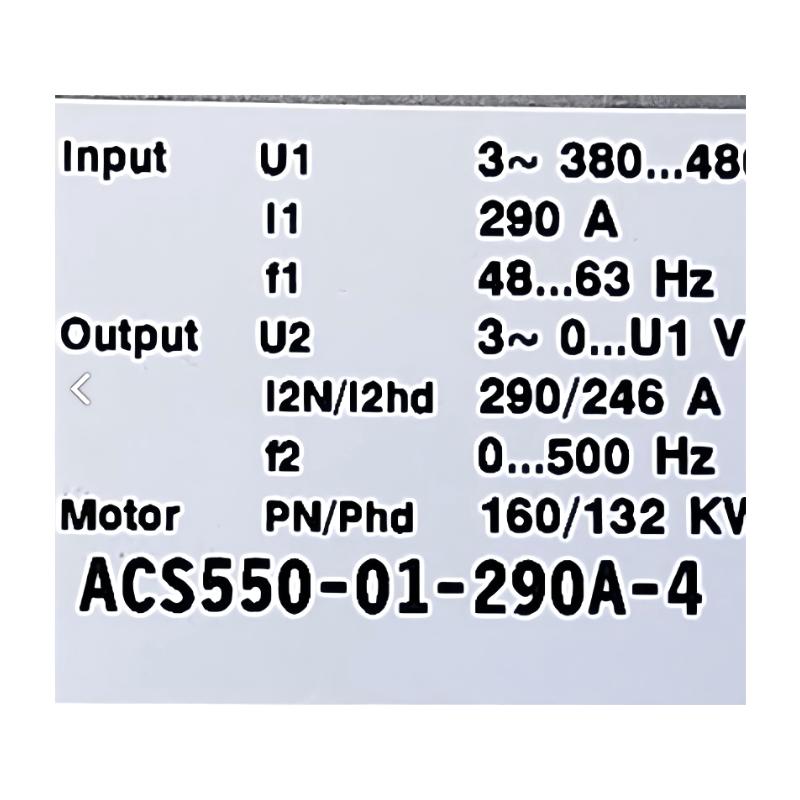

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS550-01-290A-4
Product ID	3AUA0000026919-D
Drive Series	ACS550
Module Type	Frequency Converter Module
Rated Output Current	290A
Heavy Duty Output Current	246A
Input Voltage	380–480V AC
Input Phase	Three-phase
Rated Power	160 kW
Heavy Duty Power	132 kW
Frequency Range	47.5–63 Hz
Frame Size	R6
Control Method	V/Hz Control, Sensorless Vector Control
Communication Interface	RS-485 Modbus
Mounting Type	Wall-mounted
Protection Class	IP21
Enclosure Type	NEMA Type 1
Operating Temperature	-15°C to +40°C
Dimensions (H × W × D)	955 × 350 × 420 mm
Weight	76 kg (167.55 lb)

Recommended Related Models

Model	Description
ABB ACS550-01-246A-4	High-power frequency converter for 132 kW class motor applications
ABB ACS550-01-195A-4	Industrial frequency converter for large motor control
ABB ACS580-01-290A-4	Advanced ABB drive solution with enhanced control features
ABB ACS880-01-290A-4	Premium industrial drive for demanding automation applications

Popular Related Models

Model	Description
ABB ACS550-01-072A-4	General industrial frequency converter
ABB ACS550-01-125A-4	Medium-power AC drive solution
ABB ACS550-01-157A-4	High-efficiency variable frequency drive
ABB ACS580-01-180A-4	Modern industrial frequency converter
ABB ACS880-01-169A-3	Advanced performance motor control drive

Applications

The ABB ACS550-01-290A-4 Frequency Converter is a high-performance industrial drive designed for large motor applications requiring powerful output capability, reliable speed control, and efficient energy management. With its 290A normal-duty output rating, this frequency converter is engineered to handle demanding industrial processes where stable motor operation is essential.

This drive is widely applied in heavy-duty industrial equipment such as pumps, fans, compressors, conveyors, ventilation systems, water treatment facilities, and production machinery. It provides smooth motor acceleration, accurate speed adjustment, and dependable operation to improve process efficiency and reduce mechanical stress on connected equipment.

The ACS550-01-290A-4 is an excellent choice for industrial automation projects that require a robust and flexible frequency converter solution for continuous operation in challenging environments.

Advantages

The ABB ACS550-01-290A-4 delivers reliable motor control performance through a combination of advanced technology, practical design, and industrial-grade durability.

High Power Handling Capability: Supports large AC motors with a 290A normal-duty output current, making it suitable for demanding industrial applications.
Efficient Motor Performance: Optimizes motor speed according to load conditions, helping improve energy efficiency and reduce operating costs.
Stable Control Technology: Provides accurate speed and torque management for smooth equipment operation.
Flexible Industrial Integration: Supports connection with automation systems for efficient monitoring and control.
Comprehensive Protection Functions: Helps protect drive systems and connected motors through intelligent monitoring features.
Simplified Operation: User-friendly configuration and commissioning functions reduce setup complexity.
Reliable Industrial Construction: Designed for long-term operation in manufacturing, infrastructure, and process automation environments.

Technical FAQs

1. What is the main purpose of the ABB ACS550-01-290A-4?
The ACS550-01-290A-4 is used to control the speed, torque, and operation of large three-phase AC motors in industrial systems.

2. What motor applications are suitable for this frequency converter?
It is suitable for pumps, fans, compressors, conveyors, and other industrial machinery requiring variable speed control.

3. Does the ACS550-01-290A-4 support vector control?
Yes. The drive supports sensorless vector control to improve motor response and operating accuracy.

4. Can this frequency converter communicate with industrial controllers?
Yes. It supports communication functions that allow integration with PLC systems and industrial automation networks.

5. What type of power supply does this model require?
This model is designed for three-phase industrial power systems.

6. Does the drive provide overload protection?
Yes. It includes protection features designed to monitor operating conditions and protect the motor and drive system.

7. How can users adjust motor operating parameters?
Motor parameters can be configured through the control panel and drive programming functions.

8. Can the ACS550-01-290A-4 be used in continuous-duty applications?
Yes. It is designed for reliable operation in industrial environments requiring continuous motor control.

9. What advantages does variable frequency control provide?
It allows precise motor speed adjustment, improves energy efficiency, and reduces mechanical stress during operation.

10. Is this model suitable for upgrading older motor control systems?
Yes. It can be integrated into many industrial modernization projects where power and control requirements match.
