Introduction

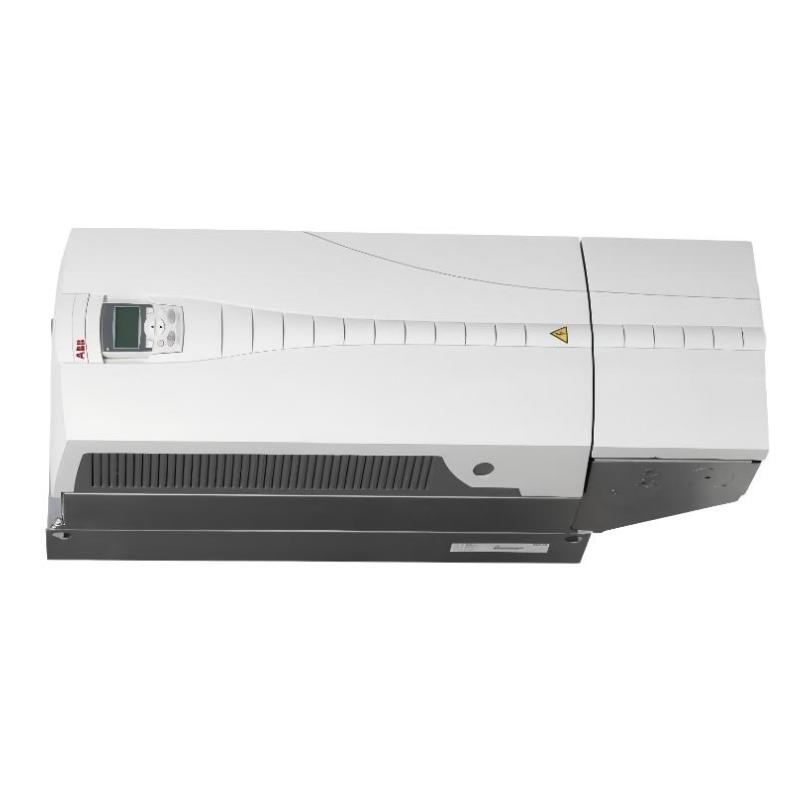

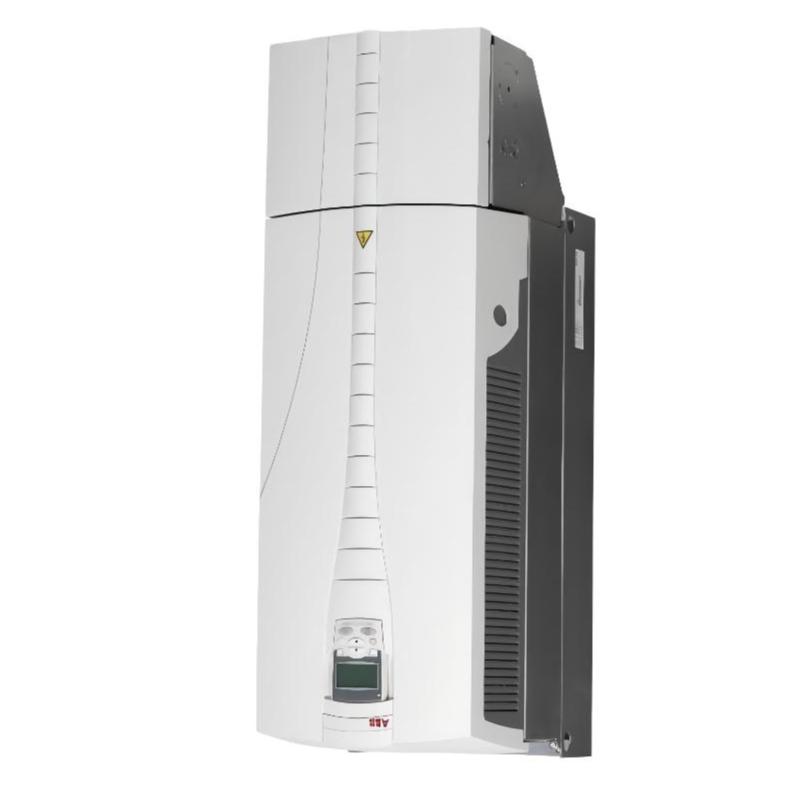

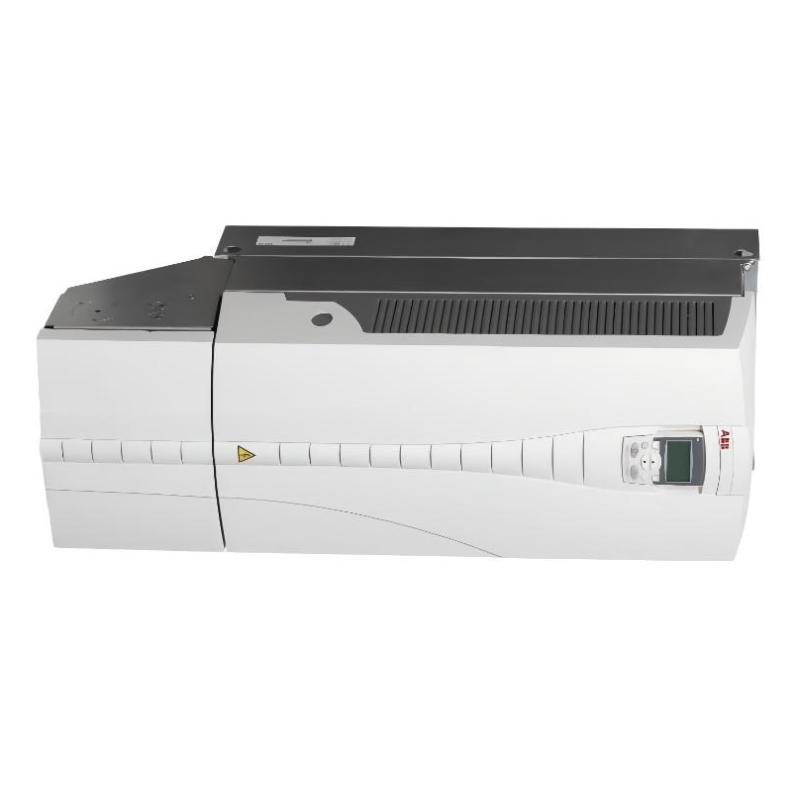

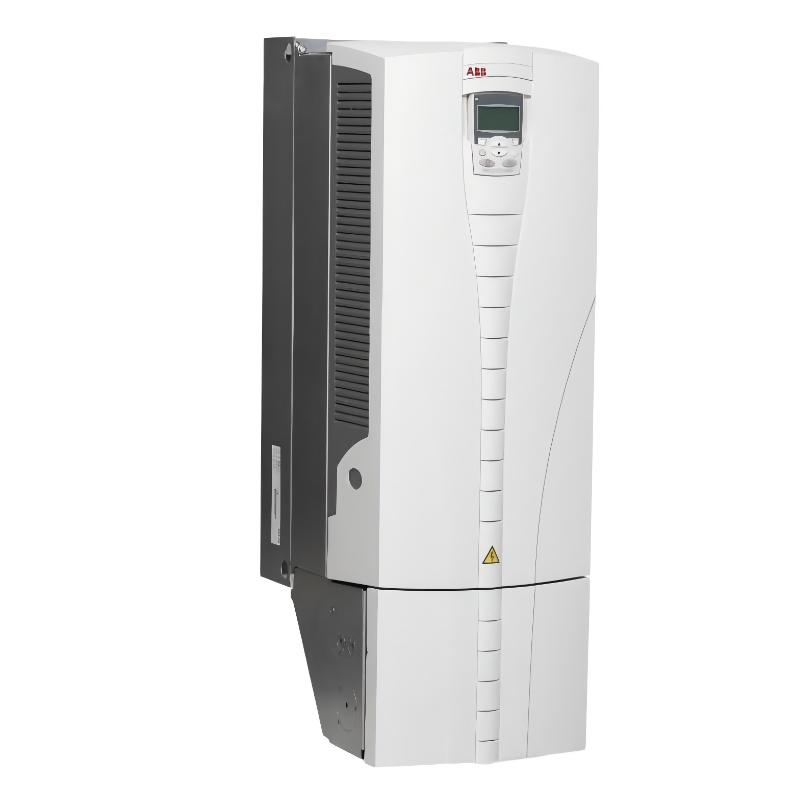

The ABB ACS550-01-290A-4 Frequency Converter is a robust industrial AC drive designed to deliver reliable control for high-power motor applications. As part of the ABB ACS550 series, it provides a balanced combination of performance, flexibility, and ease of operation for various industrial environments.

Featuring advanced motor control technology and a durable construction design, this frequency converter helps improve equipment efficiency while maintaining stable production performance. It enables precise motor speed adjustment and smooth operation, making it suitable for systems where reliability and productivity are critical.

The ACS550-01-290A-4 offers engineers, machine builders, and automation professionals a dependable drive solution for optimizing motor-driven processes and achieving efficient industrial operation.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS550-01-290A-4
Product ID	3AUA0000026919-E
Drive Series	ACS550
Module Type	Frequency Converter Module
Rated Output Current	290A
Heavy Duty Output Current	246A
Input Voltage	380–480V AC
Input Phase	Three-phase
Rated Power	160 kW
Heavy Duty Power	132 kW
Frequency Range	47.5–63 Hz
Frame Size	R6
Control Method	V/Hz Control, Sensorless Vector Control
Communication Interface	RS-485 Modbus
Mounting Type	Wall-mounted
Protection Class	IP21
Enclosure Type	NEMA Type 1
Operating Temperature	-15°C to +40°C
Dimensions (H × W × D)	955 × 350 × 420 mm
Weight	76 kg (167.55 lb)

Recommended Related Models

Model	Description
ABB ACS550-01-246A-4	High-power frequency converter for large industrial motor systems
ABB ACS550-01-195A-4	Industrial AC drive for heavy-duty applications
ABB ACS580-01-290A-4	Advanced generation frequency converter with enhanced control features
ABB ACS880-01-290A-4	High-performance industrial drive for demanding automation systems

Popular Related Models

Model	Description
ABB ACS550-01-072A-4	General-purpose industrial frequency converter
ABB ACS550-01-125A-4	Medium-power motor control drive
ABB ACS550-01-157A-4	Variable frequency converter for industrial applications
ABB ACS580-01-180A-4	Modern ABB industrial drive solution
ABB ACS880-01-169A-3	Advanced industrial motor control frequency converter

Applications

The ABB ACS550-01-290A-4 Frequency Converter is a high-power industrial motor control solution developed for applications requiring reliable speed regulation, efficient energy usage, and stable operation. Designed for large-scale motor systems, this frequency converter provides consistent performance in demanding industrial environments where precision and durability are essential.

This model is suitable for a wide range of applications including industrial pumps, fans, compressors, conveyors, HVAC equipment, water processing systems, and manufacturing machinery. It helps optimize motor operation by providing smooth acceleration, adjustable speed control, and improved process efficiency.

With its strong output capability and flexible control functions, the ACS550-01-290A-4 is an ideal choice for industrial automation projects requiring dependable motor management and long-term operational reliability.

Advantages

The ABB ACS550-01-290A-4 combines powerful drive performance with user-friendly operation, offering an efficient solution for high-capacity industrial motor applications.

High Output Capability: Provides 290A normal-duty output current, making it suitable for large motor systems and demanding industrial loads.
Energy Efficiency Improvement: Adjusts motor speed based on actual operating requirements to help reduce unnecessary energy consumption.
Stable Motor Control: Delivers accurate speed and torque regulation for smooth equipment operation.
Flexible Automation Integration: Supports connection with industrial control systems for centralized monitoring and management.
Reliable Protection Design: Includes intelligent protection functions to improve system safety and reduce operational interruptions.
Simplified Commissioning Process: Allows convenient parameter setup and adjustment for different application requirements.
Industrial Durability: Built for continuous operation in manufacturing plants, infrastructure projects, and process industries.

Technical FAQs

1. What is the ABB ACS550-01-290A-4 Frequency Converter used for?
It is designed to control the speed and performance of large three-phase AC motors in industrial applications.

2. What types of motors are compatible with this frequency converter?
The drive is mainly used with three-phase induction motors commonly installed in industrial machinery.

3. What control methods does the ACS550-01-290A-4 support?
It supports V/Hz control and sensorless vector control for improved motor response and operating stability.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication functions for integration with PLCs and automation platforms.

5. Is this model suitable for variable torque applications?
Yes. It is commonly used for pumps, fans, compressors, and other variable-speed applications.

6. Does the ACS550-01-290A-4 provide motor protection functions?
Yes. It includes monitoring and protection features to help safeguard the drive and connected motor.

7. How are operating parameters configured on this drive?
Parameters can be adjusted through the control panel and programming settings.

8. Can this frequency converter operate in continuous industrial environments?
Yes. It is designed for reliable long-term operation in industrial automation systems.

9. What are the benefits of using a frequency converter for motor control?
It improves speed control accuracy, reduces mechanical stress, and helps optimize energy consumption.

10. Can this model be used for industrial equipment upgrades?
Yes. It can replace older drive systems when electrical specifications and application requirements are compatible.
