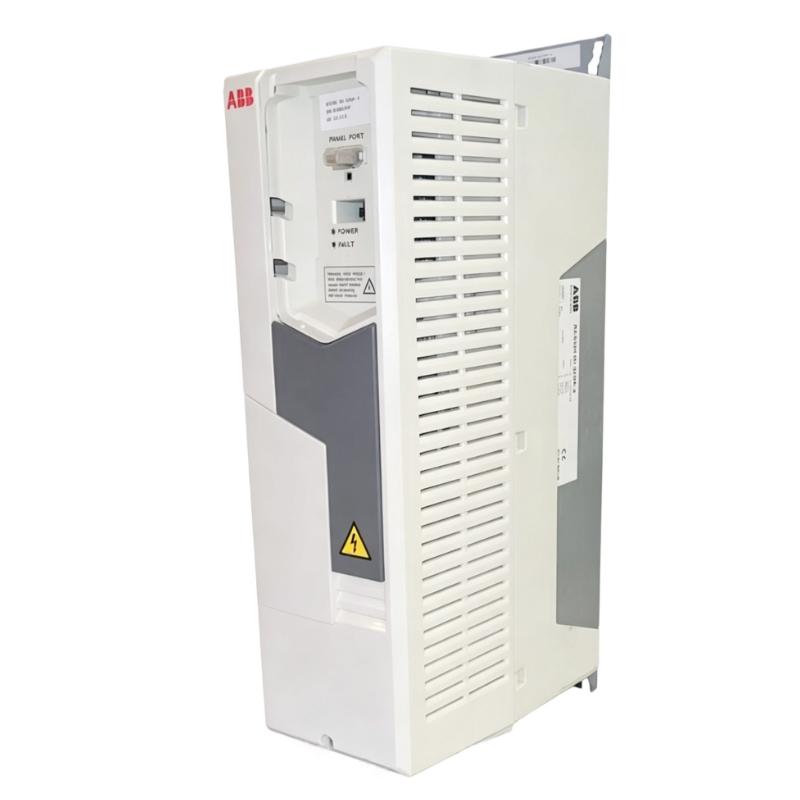

ABB ACS580-01-025A-4 3AUA0000190557 Frequency Converter_ABB PLC

Introduction

The ABB ACS580-01-025A-4 Frequency Converter is a modern general-purpose AC drive developed to provide efficient and dependable motor control for industrial applications. As part of the ACS580 series, it offers a practical combination of performance, flexibility, and ease of use for applications requiring reliable variable speed operation.

Designed with advanced motor control capabilities, this frequency converter helps improve equipment efficiency while maintaining smooth and stable operation. Its intelligent features simplify installation, commissioning, and daily operation, making it suitable for both new automation projects and system modernization.

With its strong adaptability and industrial-grade reliability, the ACS580-01-025A-4 is an excellent choice for users seeking a compact yet powerful drive solution for modern motor control requirements.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-025A-4
Product ID	3AUA0000190557
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	25A
Rated Power	11 kW
Heavy Duty Output Current	23.8A
Heavy Duty Power	11 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R2
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	531 × 228 × 361 mm
Weight	7.54 kg (16.62 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-018A-4	Compact frequency converter for lower power motor applications
ABB ACS580-01-026A-4	Industrial drive with similar power range and enhanced capacity
ABB ACS580-01-032A-4	Higher current frequency converter for larger motor loads
ABB ACS580-01-038A-4	General-purpose drive for medium industrial applications

Popular Related Models

Model	Description
ABB ACS580-01-017A-4	Compact industrial frequency converter
ABB ACS580-01-046A-4	Variable frequency drive for higher power applications
ABB ACS580-01-062A-4	Industrial AC drive for demanding motor systems
ABB ACS550-01-025A-4	Previous generation general-purpose frequency converter
ABB ACS880-01-025A-3	Advanced industrial drive for high-performance applications

Applications

The ABB ACS580-01-025A-4 Frequency Converter is a versatile industrial drive designed to provide efficient motor control, reliable operation, and simplified system integration for a wide range of automation applications. With its 25A output capability, this frequency converter delivers stable performance for industrial equipment requiring precise speed regulation and improved energy efficiency.

This model is widely used in applications including pumps, fans, compressors, conveyors, mixers, extruders, material handling equipment, and general manufacturing machinery. It supports both variable torque and constant torque applications, making it suitable for different industrial processes where flexible motor control is required.

The ACS580-01-025A-4 provides an effective solution for engineers and system integrators looking for a dependable frequency converter that combines advanced control functions with easy commissioning and long-term operational reliability.

Advantages

The ABB ACS580-01-025A-4 combines intelligent drive technology with a robust industrial design to deliver reliable performance across multiple applications.

Reliable Motor Control: Provides accurate speed and torque management for smooth and stable motor operation.
Energy Efficient Performance: Helps optimize energy consumption by adjusting motor speed according to actual process requirements.
Flexible Application Capability: Supports pumps, fans, compressors, conveyors, and other industrial motor-driven equipment.
Simplified Commissioning: User-friendly setup functions reduce installation time and improve operational convenience.
Compact Industrial Design: Offers efficient space utilization for control cabinet installations.
Built-In Control Functions: Reduces the need for additional components while maintaining excellent system flexibility.
Durable Operation: Designed for continuous industrial use with dependable performance in demanding environments.

Technical FAQs

1. What is the main function of the ABB ACS580-01-025A-4?
The frequency converter controls AC motor speed and torque to improve equipment efficiency and process performance.

2. What types of motors can be controlled by this model?
It is designed for three-phase AC motors commonly used in industrial automation applications.

3. Does the ACS580-01-025A-4 support vector control?
Yes. It provides advanced motor control functions for accurate speed and torque regulation.

4. Can this frequency converter communicate with PLC systems?
Yes. It supports industrial communication options for integration with automation control systems.

5. What applications are suitable for this frequency converter?
It is suitable for pumps, fans, compressors, conveyors, mixers, and other variable-speed industrial equipment.

6. Does this model include motor protection functions?
Yes. It provides monitoring and protection features designed to improve system reliability.

7. How are parameters configured on the ACS580-01-025A-4?
Parameters can be adjusted through the drive interface and supported configuration tools.

8. Can this frequency converter help reduce energy consumption?
Yes. It improves efficiency by allowing motors to operate according to actual load requirements.

9. Is the ACS580-01-025A-4 suitable for continuous operation?
Yes. It is designed for reliable long-term operation in industrial environments.

10. Can this model be integrated into existing automation systems?
Yes. It can be applied in system upgrades where voltage, power, and control requirements are compatible.
