Introduction

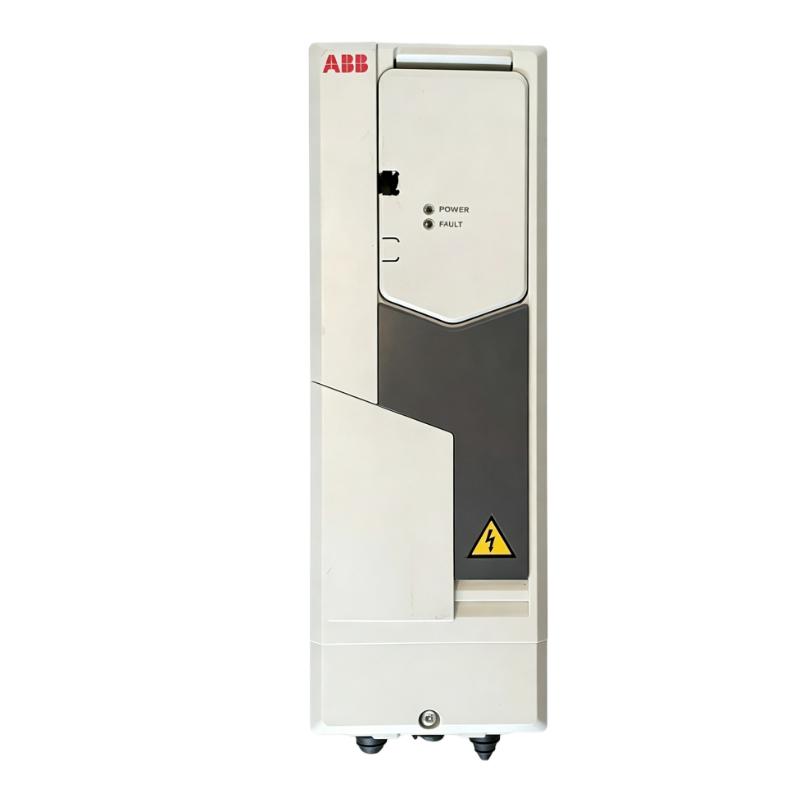

The ABB ACS580-01-02A7-4 Frequency Converter is a general-purpose AC drive designed to provide efficient and reliable motor control in compact industrial applications. As part of the ACS580 series, it delivers a practical combination of performance, simplicity, and flexibility for modern automation requirements.

With its compact structure and intelligent control features, this frequency converter helps users achieve smoother motor operation while improving energy efficiency. Its straightforward installation and reliable functionality make it suitable for a wide range of machinery and industrial processes.

The ACS580-01-02A7-4 provides an ideal balance between compact design and advanced drive capability, offering a dependable solution for applications where space efficiency, operational stability, and cost-effective motor control are important.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-02A7-4
Product ID	3ABD50000038937
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	2.6A
Rated Power	0.75 kW
Light Overload Output Current	2.5A
Heavy Duty Output Current	1.8A
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	303 × 125 × 210 mm
Weight	4.5 kg (9.92 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-03A4-4	Slightly higher capacity frequency converter for compact applications
ABB ACS580-01-04A1-4	General-purpose drive for small industrial motors
ABB ACS580-01-05A7-4	Compact frequency converter for increased motor loads
ABB ACS580-01-07A3-4	Flexible drive solution for wider industrial applications

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Industrial frequency converter for medium motor applications
ABB ACS580-01-026A-4	General-purpose AC drive for industrial automation
ABB ACS550-01-017A-4	Previous generation ABB frequency converter
ABB ACS880-01-045A-3	Advanced industrial drive for high-performance applications
ABB ACS580-04-050A-4	Modular industrial drive solution

Applications

The ABB ACS580-01-02A7-4 Frequency Converter is a compact and efficient industrial drive designed for reliable motor control, energy optimization, and simplified automation applications. With its small footprint and dependable performance, this frequency converter provides an effective solution for low-power motor systems that require precise speed regulation and stable operation.

This model is widely used in applications such as small pumps, fans, conveyors, compressors, mixers, HVAC equipment, and light industrial machinery. It helps improve process efficiency by adjusting motor speed according to operating requirements, reducing energy waste and enhancing equipment performance.

The ACS580-01-02A7-4 is an excellent choice for OEM equipment manufacturers, machine builders, and industrial users who need a compact drive solution with easy installation, flexible control, and reliable long-term operation.

Advantages

The ABB ACS580-01-02A7-4 combines advanced drive technology with a compact design, delivering reliable control performance for various industrial applications.

Compact Space-Saving Design: The small installation size makes it suitable for control cabinets and equipment with limited space.
Efficient Motor Control: Provides accurate speed adjustment to improve system performance and optimize energy usage.
Easy Setup and Operation: Simplifies commissioning through intuitive configuration functions and user-friendly controls.
Reliable Industrial Performance: Designed for stable operation in automation, manufacturing, and process applications.
Flexible Application Support: Suitable for both variable torque and constant torque motor applications.
Integrated Drive Functions: Includes essential control features to reduce additional system components.
Low Maintenance Operation: Built for dependable service with reduced downtime and improved productivity.

Technical FAQs

1. What is the ABB ACS580-01-02A7-4 Frequency Converter used for?
It is used to control the speed and operation of low-power three-phase AC motors in industrial applications.

2. What motor applications are suitable for this model?
It is suitable for small pumps, fans, conveyors, compressors, and general machinery applications.

3. Does the ACS580-01-02A7-4 support vector control?
Yes. It provides advanced motor control functions for improved speed and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation systems.

5. What type of motors can be controlled by this drive?
It is designed for three-phase AC induction motors used in industrial equipment.

6. Does this model provide motor protection functions?
Yes. It includes monitoring and protection features to improve operational reliability.

7. How are parameters configured on the ACS580-01-02A7-4?
Parameters can be adjusted through the drive interface and supported configuration tools.

8. Can this frequency converter help reduce energy consumption?
Yes. It improves efficiency by allowing motors to operate according to actual process requirements.

9. Is this drive suitable for continuous operation?
Yes. It is designed for reliable operation in industrial environments requiring stable motor control.

10. Can this model be used in automation equipment upgrades?
Yes. It can be integrated into suitable existing systems for improved motor management.
