Introduction

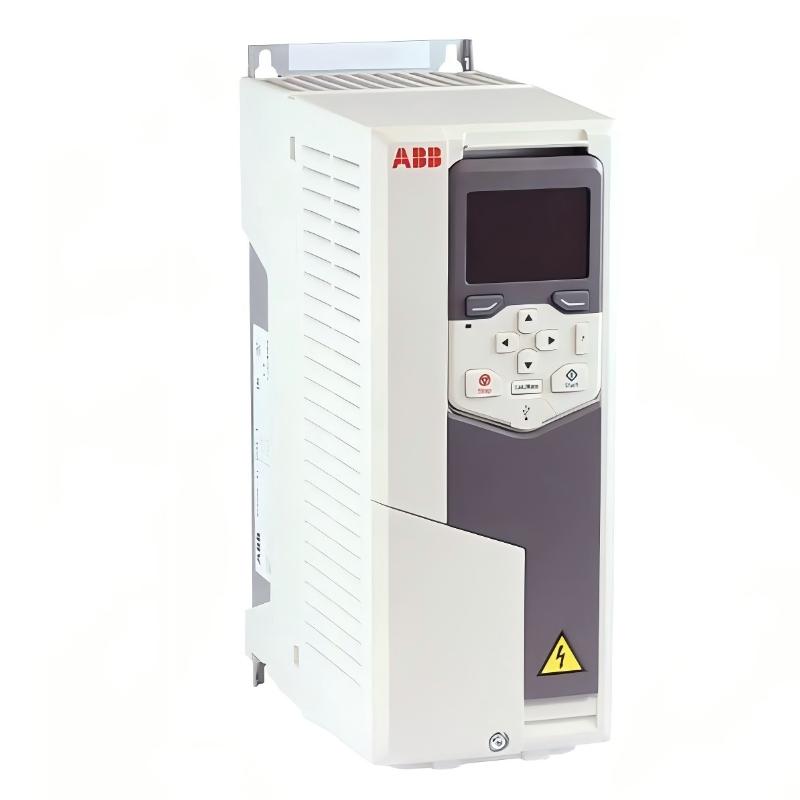

The ABB ACS580-01-02A7-4 Frequency Converter is a general-purpose AC drive developed to deliver efficient and dependable motor control in compact industrial applications. As part of the ACS580 series, it combines reliable drive technology with simplified operation, making it suitable for a wide variety of automation and machinery requirements.

Designed for easy installation and efficient performance, this frequency converter helps users achieve smoother motor operation, improved process control, and optimized energy consumption. Its compact design makes it especially suitable for applications where installation space is limited but reliable control performance is required.

With its combination of flexibility, durability, and intelligent motor management features, the ACS580-01-02A7-4 provides a practical drive solution for modern industrial systems.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-02A7-4
Product ID	3AXD50000038937
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	2.6A
Rated Power	0.75 kW
Heavy Duty Output Current	1.8A
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	373 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-03A4-4	Compact frequency converter for slightly higher motor loads
ABB ACS580-01-04A1-4	General-purpose drive for small industrial applications
ABB ACS580-01-05A7-4	Variable frequency drive for expanded application requirements
ABB ACS580-01-07A3-4	Flexible industrial drive for larger low-power motors

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Industrial frequency converter for medium motor applications
ABB ACS580-01-026A-4	General-purpose AC drive for industrial automation
ABB ACS550-01-017A-4	Previous generation ABB frequency converter
ABB ACS880-01-045A-3	Advanced performance industrial drive
ABB ACS580-04-050A-4	Modular drive solution for industrial systems

Applications

The ABB ACS580-01-02A7-4 Frequency Converter is a compact industrial drive designed to provide efficient motor control, reliable operation, and flexible automation performance for low-power applications. With its precise speed regulation capability and practical design, this frequency converter offers an effective solution for equipment requiring stable motor management and energy-efficient operation.

This model is suitable for applications such as small pumps, ventilation systems, fans, conveyors, compressors, mixers, and general machinery. It helps optimize motor performance by adjusting operating speed according to process requirements, improving efficiency while reducing unnecessary energy consumption.

The ACS580-01-02A7-4 is an excellent choice for OEM equipment, machine builders, and industrial users who require a compact frequency converter with dependable performance, simple integration, and long-term operational reliability.

Advantages

The ABB ACS580-01-02A7-4 combines advanced drive technology with a compact structure, delivering reliable performance for modern industrial automation systems.

Compact Space-Saving Design: The small form factor allows efficient installation in limited control cabinet spaces.
Reliable Motor Performance: Provides accurate speed and torque control for smooth equipment operation.
Energy Efficient Operation: Helps reduce energy usage by adapting motor speed to actual application requirements.
Easy Configuration: Simplifies commissioning and maintenance through intuitive parameter settings.
Flexible Application Support: Suitable for a wide range of variable speed motor applications.
Integrated Drive Functions: Reduces system complexity by providing essential control features within the drive.
Stable Industrial Operation: Designed for dependable performance in automation and manufacturing environments.

Technical FAQs

1. What is the ABB ACS580-01-02A7-4 Frequency Converter designed for?
It is designed to control the speed and operation of three-phase AC motors in industrial and commercial applications.

2. What type of motors can be controlled by this frequency converter?
It is compatible with three-phase AC induction motors commonly used in industrial equipment.

3. Does the ACS580-01-02A7-4 support vector control?
Yes. It provides advanced motor control functions for improved speed and torque regulation.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication solutions for automation system integration.

5. What applications are commonly used with this model?
Typical applications include pumps, fans, conveyors, compressors, and light industrial machinery.

6. Does the drive provide motor protection functions?
Yes. It includes monitoring and protection features to improve system reliability.

7. How are operating parameters configured?
Parameters can be adjusted through the drive control interface and supported configuration tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize energy consumption by controlling motor speed according to process demand.

9. Is the ACS580-01-02A7-4 suitable for continuous operation?
Yes. It is designed for stable and reliable operation in industrial environments.

10. Can this model be used for equipment modernization projects?
Yes. It can replace suitable older drive systems when electrical and application requirements match.
