Introduction

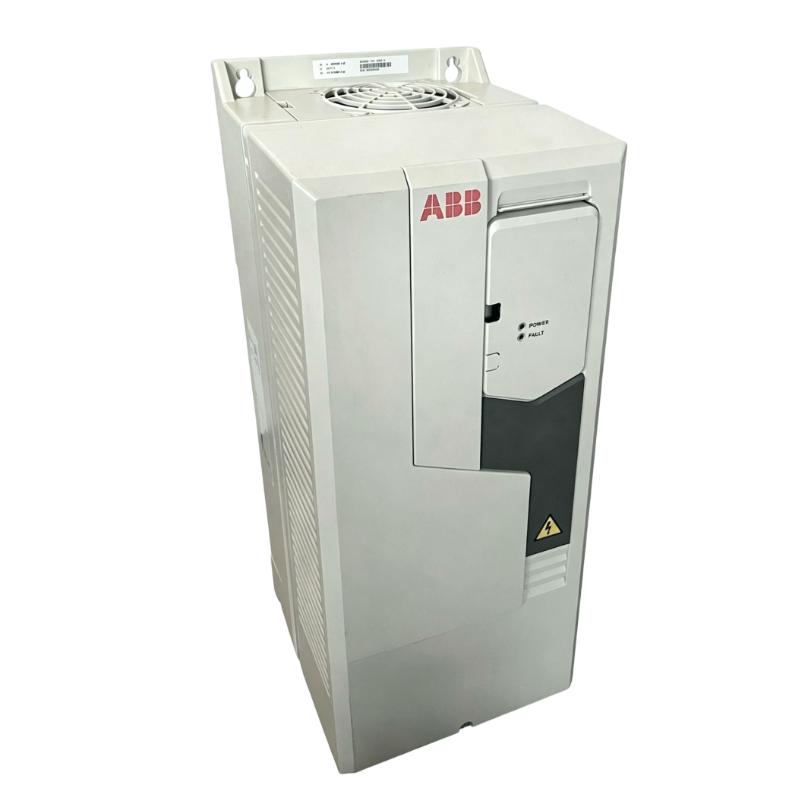

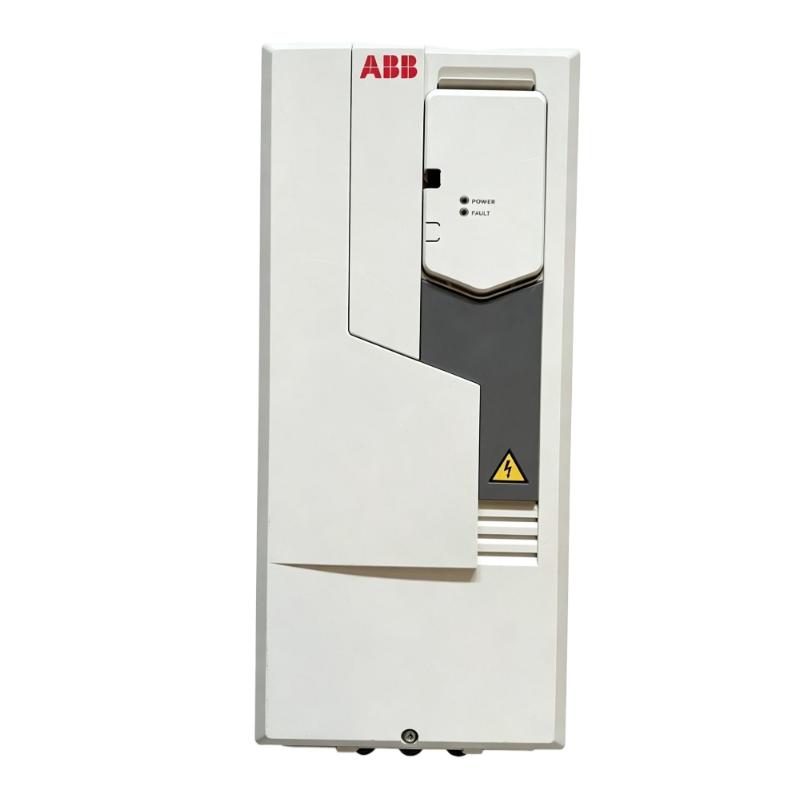

The ABB ACS580-01-033A-4 Frequency Converter is a general-purpose industrial AC drive engineered to provide efficient and reliable motor control for modern automation systems. As part of the ABB ACS580 series, it offers a balanced combination of performance, flexibility, and ease of use for a wide variety of industrial applications.

Designed with built-in control functions and a user-friendly operating concept, this frequency converter helps simplify installation, commissioning, and maintenance. Its reliable performance makes it suitable for industries requiring consistent motor operation, improved energy management, and long-term system stability.

With its strong adaptability and industrial-grade reliability, the ACS580-01-033A-4 provides an effective drive solution for applications requiring precise control and efficient operation.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-033A-4
Product ID	3ABD50000038961
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	32A
Rated Power	15 kW
Heavy Duty Output Current	24.6A
Heavy Duty Power	11 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R3
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	454 × 203 × 228 mm
Weight	14.9 kg (32.85 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-026A-4	Compact frequency converter for medium motor applications
ABB ACS580-01-046A-4	Higher capacity drive for larger motor loads
ABB ACS580-01-062A-4	Industrial frequency converter for demanding applications
ABB ACS580-01-072A-4	General-purpose drive for higher power systems

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Compact industrial frequency converter
ABB ACS580-01-025A-4	General-purpose motor control drive
ABB ACS550-01-032A-4	Previous generation ABB frequency converter
ABB ACS880-01-045A-3	Advanced industrial drive solution
ABB ACS580-04-050A-4	Modular frequency converter for industrial systems

Applications

The ABB ACS580-01-033A-4 Frequency Converter is a versatile industrial drive designed to deliver reliable motor control, energy-efficient operation, and flexible performance for a wide range of industrial applications. With its 32A output capability, this frequency converter provides stable control for medium-power motor systems requiring accurate speed regulation and dependable operation.

This model is widely used in applications such as pumps, fans, compressors, conveyors, mixers, extruders, material handling systems, and general manufacturing equipment. It helps improve process efficiency by allowing motors to operate according to actual load conditions while maintaining smooth acceleration and controlled performance.

The ACS580-01-033A-4 is an ideal solution for OEM equipment manufacturers, system integrators, and industrial operators seeking a robust frequency converter with simplified installation, reliable operation, and excellent application flexibility.

Advantages

The ABB ACS580-01-033A-4 combines advanced drive technology with a practical industrial design, providing efficient and dependable motor control performance.

Powerful Motor Control Capability: Provides accurate speed and torque management for medium-power industrial motors.
Energy Saving Operation: Optimizes motor performance by adjusting speed according to process requirements.
Flexible Application Support: Suitable for both variable torque and constant torque applications.
Simplified Commissioning: User-friendly configuration functions reduce setup time and improve operational efficiency.
Reliable Industrial Construction: Designed for stable performance in demanding automation environments.
Integrated Control Functions: Built-in features help reduce additional hardware requirements and system complexity.
Improved Process Efficiency: Supports smoother operation, reduced mechanical stress, and enhanced equipment productivity.

Technical FAQs

1. What is the ABB ACS580-01-033A-4 Frequency Converter used for?
It is used to control the speed, torque, and operation of three-phase AC motors in industrial applications.

2. What type of motors can be controlled by this frequency converter?
It is designed for three-phase AC induction motors used in industrial machinery and automation systems.

3. Does the ACS580-01-033A-4 support vector control?
Yes. It provides advanced motor control functions for improved speed accuracy and torque response.

4. Can this frequency converter communicate with PLC systems?
Yes. It supports industrial communication options for integration with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, and various industrial processing equipment.

6. Does this drive include motor protection functions?
Yes. It includes monitoring and protection features to improve motor and system reliability.

7. How are parameters configured on the ACS580-01-033A-4?
Parameters can be adjusted through the drive interface and supported configuration tools.

8. Can this frequency converter improve energy efficiency?
Yes. It reduces unnecessary energy consumption by allowing motors to operate according to actual demand.

9. Is the ACS580-01-033A-4 suitable for continuous industrial operation?
Yes. It is designed for reliable long-term performance in industrial environments.

10. Can this model be integrated into existing automation systems?
Yes. It can be applied in system upgrades where voltage, motor power, and control requirements are compatible.
