Introduction

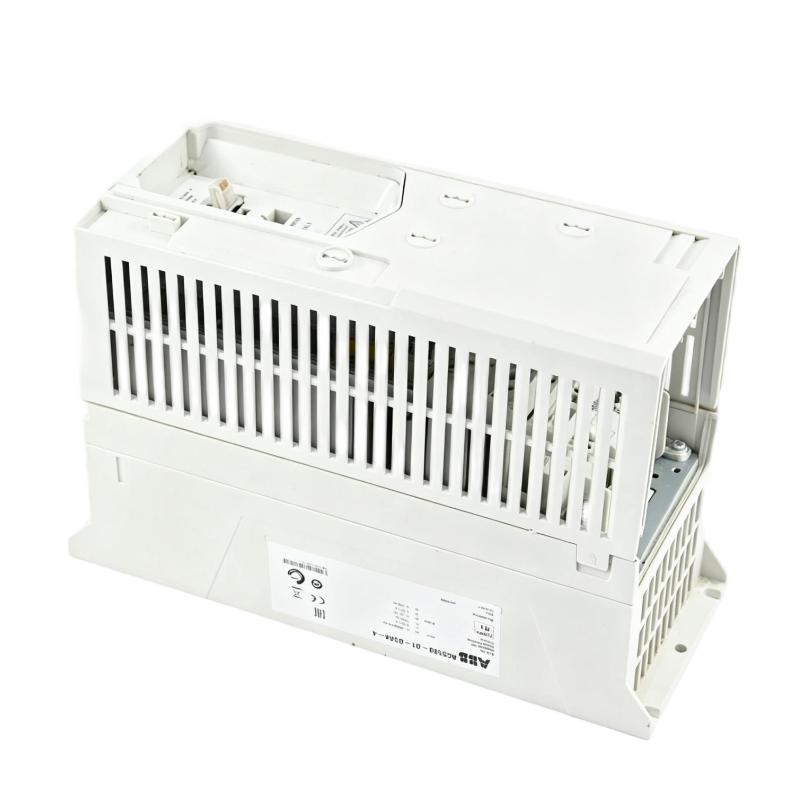

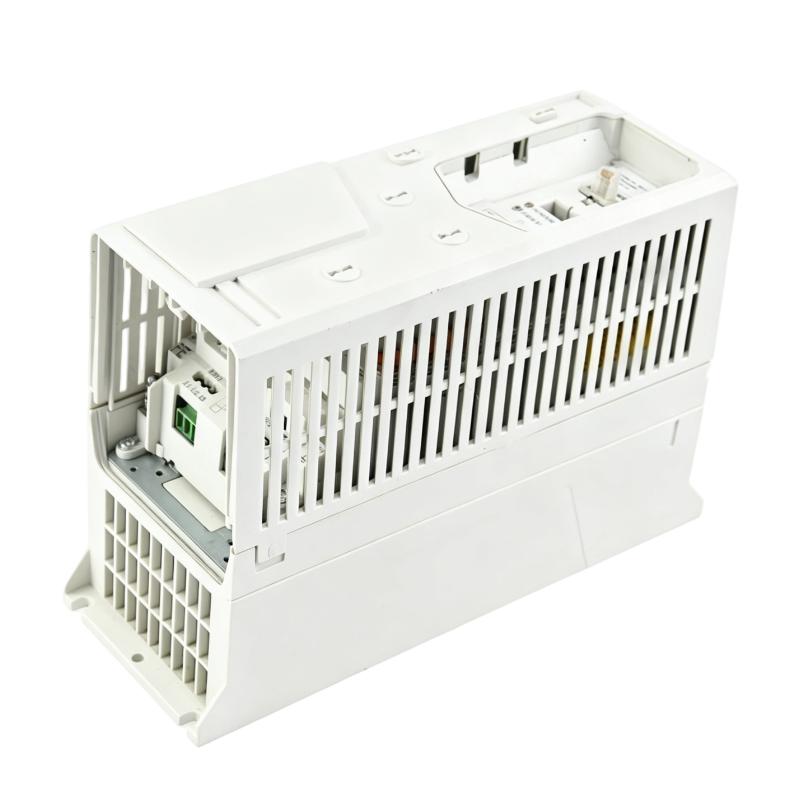

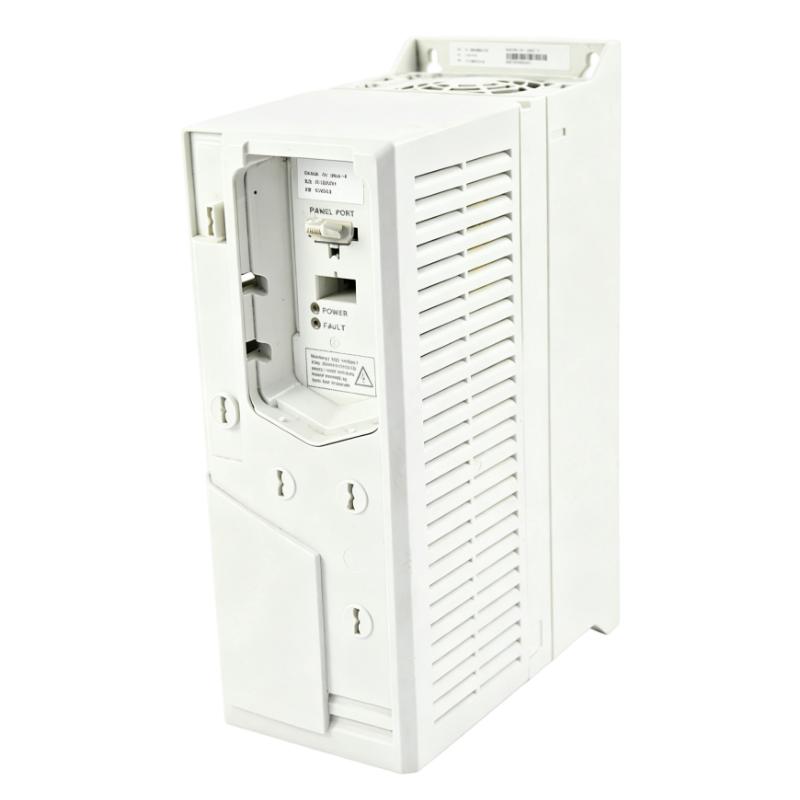

The ABB ACS580-01-03A4-4 Frequency Converter is a general-purpose AC drive designed to provide efficient and dependable motor control for compact industrial applications. As part of the ACS580 series, it combines practical functionality, simplified operation, and reliable performance to meet the needs of modern automation systems.

Engineered for wall-mounted installation, this frequency converter offers a convenient solution for controlling small motor applications while maintaining excellent efficiency and operational stability. Its compact design makes it suitable for installations where space optimization is important without compromising performance.

With its flexible application capability and dependable ABB drive technology, the ACS580-01-03A4-4 delivers a cost-effective solution for users requiring reliable motor control and improved system efficiency.

Technical Specifications

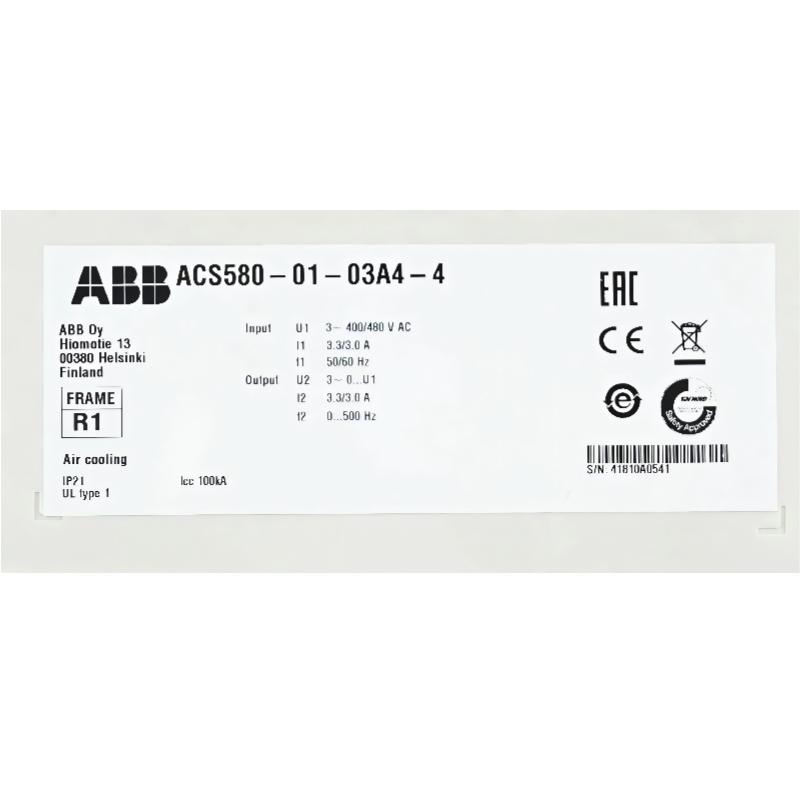

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-03A4-4
Product ID	3ABD50000038938
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	3.3A
Rated Power	1.1 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	303 × 125 × 210 mm
Weight	4.5 kg (9.92 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-02A7-4	Compact frequency converter for lower power applications
ABB ACS580-01-04A1-4	Higher capacity drive for small industrial motors
ABB ACS580-01-05A7-4	Flexible frequency converter for expanded applications
ABB ACS580-01-07A3-4	General-purpose drive for larger low-power systems

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Industrial frequency converter for medium applications
ABB ACS580-01-026A-4	General-purpose AC drive for automation systems
ABB ACS550-01-017A-4	Previous generation ABB frequency converter
ABB ACS880-01-045A-3	Advanced industrial motor control drive
ABB ACS580-04-050A-4	Modular frequency converter for industrial applications

Applications

The ABB ACS580-01-03A4-4 Frequency Converter is a compact and reliable industrial drive designed to deliver efficient motor control, smooth operation, and simplified automation integration. With its optimized design and dependable performance, this frequency converter provides an effective solution for low-power motor applications requiring accurate speed adjustment and energy-efficient operation.

This model is widely used in applications such as pumps, fans, conveyors, compressors, mixers, HVAC equipment, and light industrial machinery. It helps improve system efficiency by controlling motor speed according to process requirements, reducing unnecessary energy consumption and supporting stable equipment performance.

The ACS580-01-03A4-4 is an ideal choice for OEM manufacturers, machine builders, and industrial users seeking a compact drive solution with reliable control functions, easy commissioning, and long-term operational stability.

Advantages

The ABB ACS580-01-03A4-4 combines advanced drive technology with a compact industrial structure to provide reliable performance for various motor control applications.

Compact Installation Design: The small footprint allows efficient integration into control cabinets and machinery systems.
Efficient Motor Management: Provides accurate speed and torque control to improve equipment performance.
Energy Saving Capability: Helps optimize power consumption by adjusting motor speed according to actual operating conditions.
Simple Commissioning: User-friendly configuration functions reduce installation time and simplify operation.
Flexible Application Range: Suitable for pumps, fans, conveyors, and other variable-speed industrial equipment.
Integrated Control Functions: Built-in features help reduce system complexity and additional hardware requirements.
Reliable Industrial Operation: Designed for stable performance in automation and manufacturing environments.

Technical FAQs

1. What is the ABB ACS580-01-03A4-4 Frequency Converter mainly used for?
It is used to control the speed and operation of three-phase AC motors in industrial and commercial applications.

2. What type of motors can be controlled by this frequency converter?
It is designed for three-phase AC induction motors commonly used in automation equipment.

3. Does the ACS580-01-03A4-4 support vector control?
Yes. It provides advanced motor control functions for improved speed regulation and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, conveyors, compressors, mixers, and general machinery applications.

6. Does this drive include motor protection functions?
Yes. It provides monitoring and protection features to improve operational reliability.

7. How are parameters configured on the ACS580-01-03A4-4?
Parameters can be adjusted through the drive interface and supported configuration tools.

8. Can this frequency converter improve energy efficiency?
Yes. It reduces energy waste by allowing motors to operate according to actual process demand.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable performance in industrial environments requiring stable motor control.

10. Can the ACS580-01-03A4-4 be used in automation upgrades?
Yes. It can be integrated into suitable existing systems when electrical requirements are compatible.
