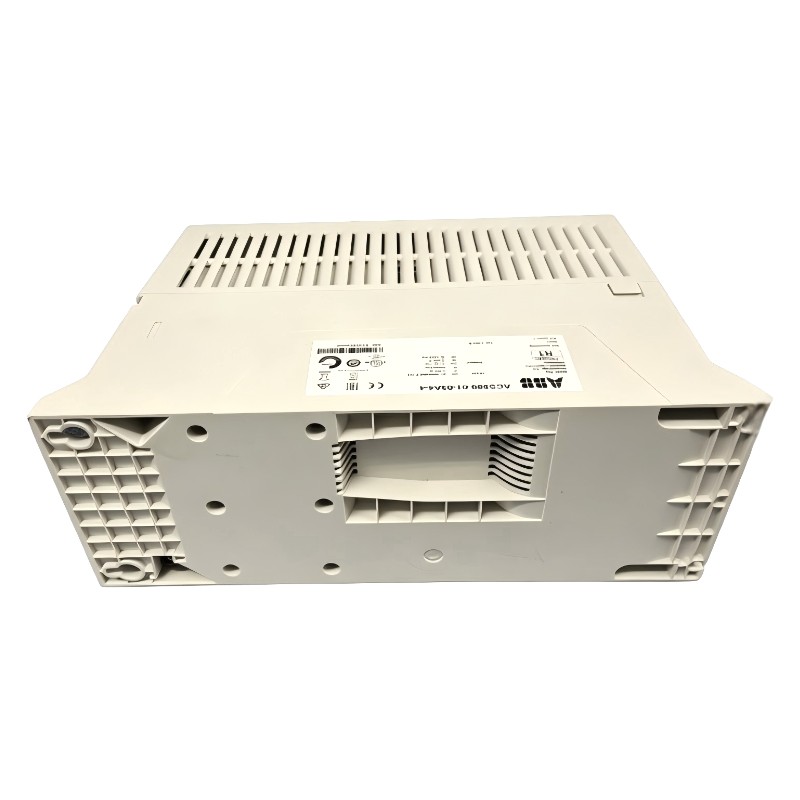

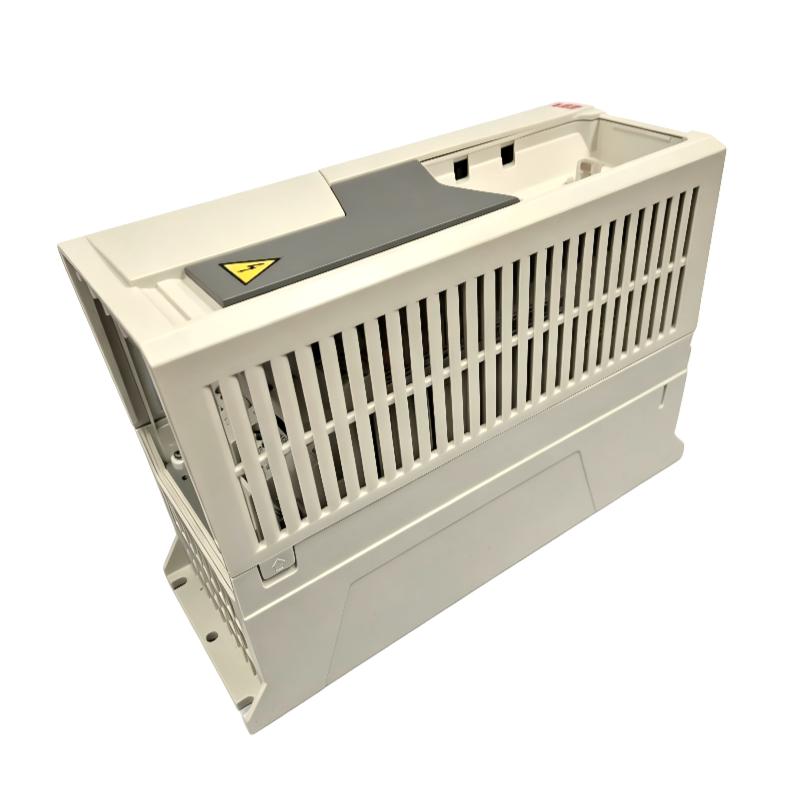

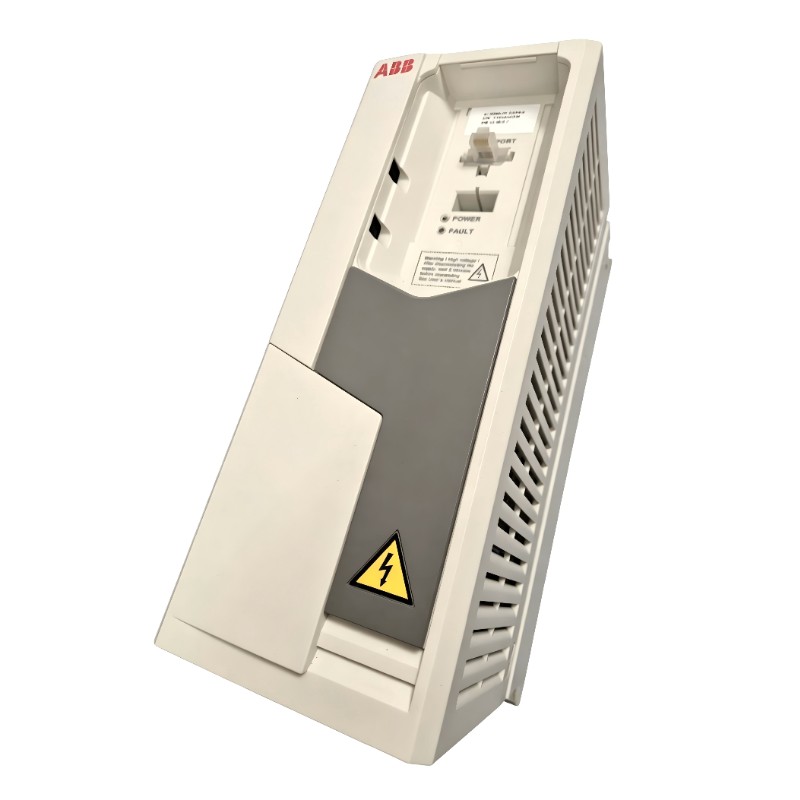

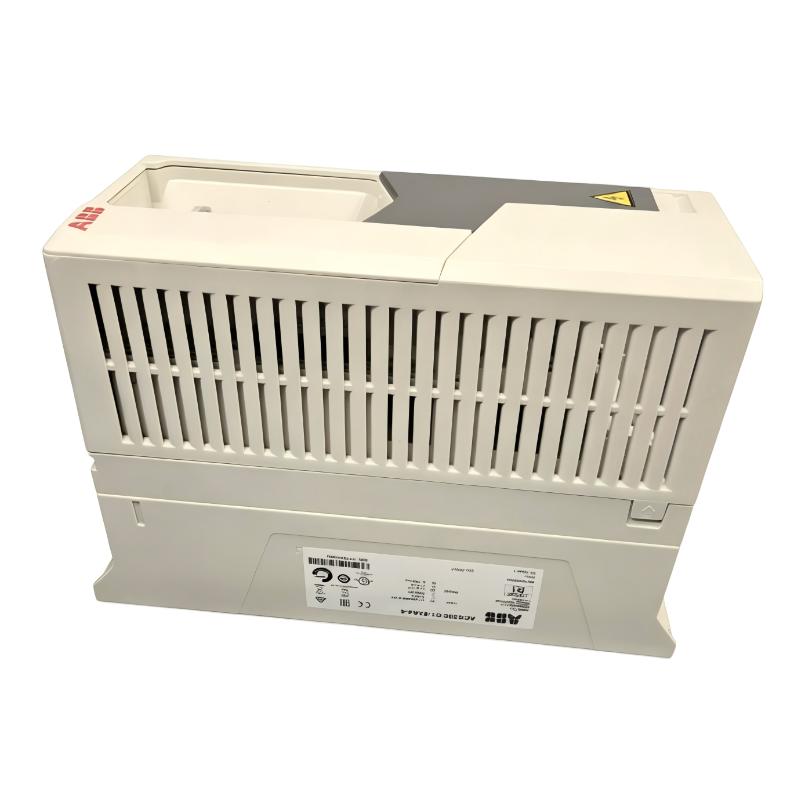

ABB ACS580-01-03A4-4 3AXD50000038938 Frequency Converter
ABB ACS580-01-03A4-4 3AXD50000038938 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-03A4-4 Product Origin:Sweden (SE) Product Dimensions:373 x 125 x 223 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-03A4-4 Frequency Converter is a general-purpose AC drive designed to provide efficient and reliable motor control for modern industrial applications. As part of the ACS580 series, it combines user-friendly operation, flexible configuration, and dependable performance to meet diverse automation requirements.
Designed for space-efficient installations, this frequency converter provides a practical solution for controlling smaller industrial motors while maintaining excellent operational stability. Its built-in functions simplify system integration and help users achieve improved productivity and energy management.
With its compact design, reliable control capability, and industrial-grade performance, the ACS580-01-03A4-4 offers a valuable solution for applications requiring efficient motor control in a limited installation space.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model Number
ACS580-01-03A4-4
Product ID
3AXD50000038938
Drive Series
ACS580
Module Type
Frequency Converter Module
Rated Output Current
3.3A
Rated Power
1.1 kW
Input Voltage
380–480V AC
Input Phase
Three-phase
Frequency Range
47.5–63 Hz
Control Method
Scalar Control, Vector Control
Communication Interface
Modbus RTU
Safety Function
Safe Torque Off (STO)
Mounting Type
Wall-mounted
Protection Class
IP21
Frame Size
R1
Operating Temperature
-15°C to +50°C
Dimensions (H × W × D)
373 × 125 × 223 mm
Weight
4.6 kg (10.14 lb)
Recommended Related Models
Model
Description
ABB ACS580-01-02A7-4
Compact frequency converter for lower power motor applications
ABB ACS580-01-04A1-4
Higher capacity drive for small industrial systems
ABB ACS580-01-05A7-4
Flexible frequency converter for expanded applications
ABB ACS580-01-07A3-4
General-purpose drive for larger low-power motors
Popular Related Models
Model
Description
ABB ACS580-01-018A-4
Industrial frequency converter for medium applications
ABB ACS580-01-026A-4
General-purpose motor control drive
ABB ACS550-01-017A-4
Previous generation ABB frequency converter
ABB ACS880-01-045A-3
Advanced industrial motor control solution
ABB ACS580-04-050A-4
Modular frequency converter for industrial systems
Applications
The ABB ACS580-01-03A4-4 Frequency Converter is a compact industrial drive designed to provide efficient motor control, reliable speed regulation, and simplified operation for a variety of automation applications. With its 3.3A output capability and practical wall-mounted design, this frequency converter delivers stable performance for low-power motor systems.
This model is widely used in applications such as pumps, fans, conveyors, compressors, mixers, HVAC equipment, and light manufacturing machinery. It helps optimize motor performance by adjusting operating speed according to actual process requirements, improving energy efficiency while maintaining smooth and reliable operation.
The ACS580-01-03A4-4 is an excellent choice for OEM equipment manufacturers, machine builders, and industrial users who require a dependable frequency converter with easy integration, flexible control functions, and long service life.
Advantages
The ABB ACS580-01-03A4-4 combines advanced drive technology with a compact structure to deliver efficient and dependable motor control performance.
Compact Industrial Design: Small installation size allows flexible integration into control cabinets and machinery systems.
Efficient Motor Control: Provides accurate speed and torque adjustment for smooth equipment operation.
Energy Optimization: Helps reduce unnecessary power consumption by matching motor speed with actual load requirements.
Easy Commissioning: Simplified parameter setup makes installation and operation more convenient.
Flexible Application Capability: Suitable for variable torque and constant torque applications.
Integrated Drive Functions: Reduces additional system components and simplifies overall system design.
Reliable Performance: Designed for stable operation in industrial automation environments.
Technical FAQs
1. What is the ABB ACS580-01-03A4-4 Frequency Converter used for?
It is used to control the speed and performance of three-phase AC motors in industrial applications.
2. What type of motors can be controlled by this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.
3. Does the ACS580-01-03A4-4 support vector control?
Yes. It provides advanced motor control functions for improved speed accuracy and torque response.
4. Can this frequency converter be connected to PLC systems?
Yes. It supports industrial communication options for integration with automation systems.
5. What applications are suitable for this model?
It is suitable for pumps, fans, conveyors, compressors, mixers, and general industrial equipment.
6. Does the drive include motor protection functions?
Yes. It includes monitoring and protection features to improve operational reliability.
7. How are parameters configured on the ACS580-01-03A4-4?
Parameters can be adjusted through the drive interface and supported configuration tools.
8. Can this frequency converter improve motor efficiency?
Yes. It helps optimize motor operation by controlling speed according to process demand.
9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable long-term operation in industrial environments.
10. Can this frequency converter be used in equipment upgrade projects?
Yes. It can replace suitable drive systems when electrical specifications and application requirements match.
