Introduction

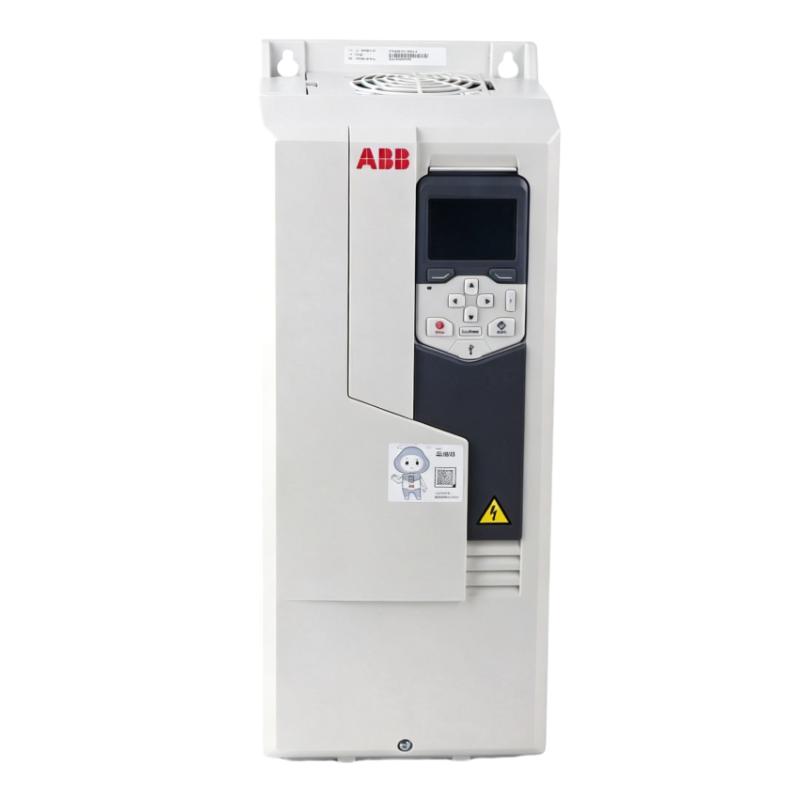

The ABB ACS580-01-046A-4 Frequency Converter is a versatile industrial AC drive designed to provide reliable and efficient motor control for a wide range of applications. As part of the ACS580 series, it combines advanced control technology, simplified operation, and flexible configuration to meet the needs of modern industrial automation.

Designed for wall-mounted installation, this frequency converter provides a practical solution for controlling medium-power motors while improving energy efficiency and process stability. Its integrated functions help simplify system design and reduce the complexity of industrial drive applications.

With strong performance, dependable operation, and excellent adaptability, the ACS580-01-046A-4 is a trusted choice for applications requiring precise motor management and long-term industrial reliability.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-046A-4
Product ID	3ABD50000038963
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	45A
Rated Power	22 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Modbus RTU
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R3
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	454 × 203 × 228 mm
Weight	14.9 kg (32.85 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-033A-4	Medium-power frequency converter for industrial applications
ABB ACS580-01-039A-4	General-purpose drive for medium motor systems
ABB ACS580-01-062A-4	Higher-capacity frequency converter for larger loads
ABB ACS580-01-072A-4	Industrial drive for increased power requirements

Popular Related Models

Model	Description
ABB ACS580-01-026A-4	Compact frequency converter for automation applications
ABB ACS580-01-033A-4	Reliable industrial motor control solution
ABB ACS580-01-046A-4	General-purpose AC drive for medium-power systems
ABB ACS550-01-046A-4	Previous generation ABB frequency converter
ABB ACS880-01-045A-3	Advanced industrial drive for demanding applications

Applications

The ABB ACS580-01-046A-4 Frequency Converter is a high-performance general-purpose industrial drive designed to deliver efficient motor control, stable operation, and optimized energy management for medium-power applications. With its 45A output capability and robust wall-mounted structure, this frequency converter provides reliable control performance for demanding industrial environments.

This model is widely used in applications such as pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, HVAC systems, and manufacturing equipment. It helps improve process efficiency by precisely adjusting motor speed, reducing unnecessary energy consumption, and supporting smooth equipment operation.

The ACS580-01-046A-4 is an excellent choice for OEM manufacturers, system integrators, and industrial operators requiring a dependable drive solution with flexible installation, simplified operation, and long-term reliability.

Advantages

The ABB ACS580-01-046A-4 combines advanced drive technology with a practical industrial design to provide reliable and efficient motor control performance.

Powerful Motor Control Capability: Provides accurate speed and torque management for medium-power industrial motors.
Energy Efficient Operation: Optimizes motor performance by adjusting speed according to actual process requirements.
Wide Application Compatibility: Supports various applications including variable torque and constant torque loads.
Simplified Commissioning: User-friendly configuration functions reduce installation and setup complexity.
Reliable Industrial Construction: Designed for stable operation in demanding automation environments.
Integrated Protection Functions: Helps protect connected equipment through intelligent monitoring and control features.
Improved System Efficiency: Supports smoother operation, reduced mechanical stress, and enhanced productivity.

Technical FAQs

1. What is the ABB ACS580-01-046A-4 Frequency Converter used for?
It is used to control the speed and torque of three-phase AC motors in industrial automation systems.

2. What type of motors are suitable for this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial applications.

3. Does the ACS580-01-046A-4 support vector control?
Yes. It provides advanced motor control functions for accurate speed regulation and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for automation system integration.

5. What applications are commonly used with this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, and industrial processing equipment.

6. Does the drive include motor protection features?
Yes. It provides monitoring and protection functions to improve operational reliability.

7. How are parameters configured on the ACS580-01-046A-4?
Parameters can be adjusted through the drive interface and compatible configuration tools.

8. Can this frequency converter reduce energy consumption?
Yes. It improves energy efficiency by allowing motors to operate according to actual load requirements.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for stable and reliable performance in industrial environments.

10. Can the ACS580-01-046A-4 be used in equipment modernization projects?
Yes. It can be integrated into suitable existing systems when electrical and application requirements are compatible.
